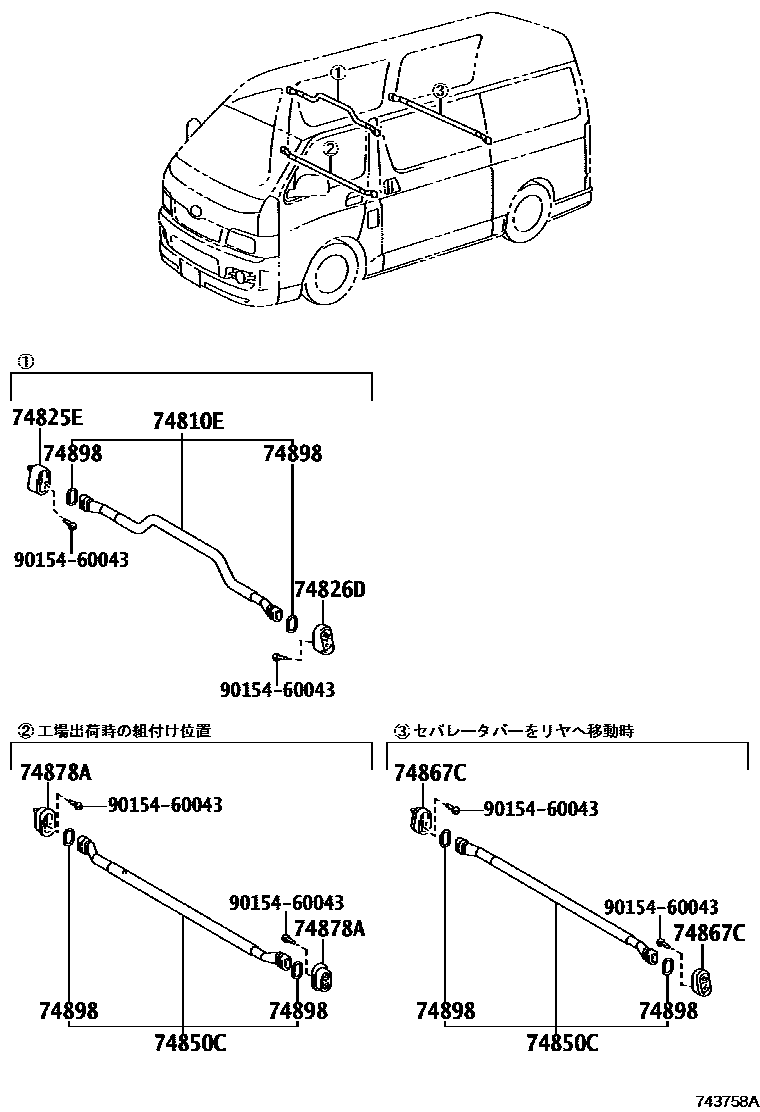

SEPARATOR & SEPARATOR CURTAIN

0001 1��������� 0004 1��������� 0005 1���������(�������) 0006 1����������

74810EBAR ASSY, SEPARATOR

main74850-26070-B2iGDH201..V1..HRF..5D;TRH200..HRF..4FC..CBU;GDH206,KDH20#..HRF..CBU;TRH200..V1..HRF..6FC..CBU201312-202312

LT.GRAY,TRIM1#

main74850-26090-B2iGDH221,226,KDH221,TRH221,226..CBU201312

LT.GRAY,TRIM1#

main74850-26180-B2iGDH211,TRH211,216201808-202401

LT.GRAY,TRIM13

main74850-26180-B2iGDH211,KDH211,TRH211,216201312-201808

LT.GRAY,TRIM1#

main74850-26180-C0iGDH211,TRH211,216201808-202401

BLACK,TRIM13,15,16

main74850-26180-C0iGDH211,TRH211,216202401

BLACK,TRIM1#

74825EBRACKET, SEPARATOR, RH

main74825-26020-B0iGDH211,KDH211,TRH211,216201312-201808

LT.GRAY,TRIM1#

main74825-26020-B0iGDH211,TRH211,216201808

LT.GRAY,TRIM13

main74825-26020-C0iGDH211,TRH211,216201808

BLACK,TRIM15,16

main74825-26040-B0iTRH200..HRF..5F201312-202312

LT.GRAY,TRIM1#

74826DBRACKET, SEPARATOR, LH

main74825-26040-B0iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC201312-202312

LT.GRAY,TRIM1#

main74826-26070-B0iGDH211,KDH211,TRH211,216201312-201808

LT.GRAY,TRIM1#

main74826-26070-B0iGDH211,TRH211,216201808

LT.GRAY,TRIM13

main74826-26070-C0iGDH211,TRH211,216201808

BLACK,TRIM15,16

74850CBAR ASSY, SEPARATOR

main74850-26060-B2iGDH20#,KDH20#..5D..03S..(4FC,6FC)201312

main74850-26060-B2iGDH20#,TRH200..6FC..SGL201312-202312

LT.GRAY,TRIM1#

main74850-26060-B2iGDH20#,TRH200..SGL201808-202401

LT.GRAY,TRIM13

main74850-26060-B2iGDH206..06S;GDH201..V1..HRF..5D;GDH201..SRF..5D..DX;TRH200..V1..SP..6FC;GDH201..SRF..4D..06S;TRH200..HRF..4FC..CBU;GDH20#,KDH201..V1..SP;TRH200..V1..HRF..6FC..CBU;K201312

main74850-26060-C0iGDH20#,TRH200..SGL201808-202401

BLACK,TRIM15,16

main74850-26060-C0iGDH20#,TRH200..SGL202401

BLACK,TRIM1#

main74850-26080-B3iTRH211,216..4FC;GDH221,226,KDH211,221,TRH221,226..CBU201312-201808

LT.GRAY,TRIM1#

main74850-26080-B3iGDH211,TRH211,216201808-202401

LT.GRAY,TRIM13

main74850-26080-C0iGDH211,TRH211,216201808-202401

BLACK,TRIM15,16

main74850-26080-C0iGDH211,TRH211,216202401

BLACK,TRIM1#

main74850-26101-B2iGDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)201312-202107

main74850-26160-B2iGDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)201312-202107

74867CBRACKET, SEPARATOR BAR, LOWER

main74867-26090-B0iGDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)201312-202107

LT.GRAY,TRIM1#

sub74867-26090

main74867-26110-B0iGDH20#,211,TRH200,211,216..SGL201808

main74867-26110-B0iGDH20#,211,KDH20#,211,TRH200,211,216..SGL201312-201808

main74867-26110-C0iGDH20#,211,TRH200,211,216..SGL201808

main74867-26120-B2iGDH201..V1..HRF..5D;TRH200..HRF..4FC..CBU;TRH200..V1..HRF..6FC..CBU;GDH201,TRH200..SRF..06S..(4FC,6FC);GDH206,221,226,KDH20#,221,TRH221,226..(05S,06S)..DX201312-202312

LT.GRAY,TRIM1#

main74879-26040-B0iGDH20#,211,TRH200,211,216..SGL201808

main74879-26040-B0iGDH20#,211,KDH20#,211,TRH200,211,216..SGL201312-201808

main74879-26040-C0iGDH20#,211,TRH200,211,216..SGL201808

74878ABRACKET, SEPARATOR BAR, LOWER

main74867-26080-B0iGDH223,KDH223,TRH214,219,223,228..DX201312-202312

sub74867-26080

main74867-26080-B0iGDH201..SRF..5D;KDH201..SG..CBU;GDH206..05S,06S,09S;GDH201..V1..HRF..5D;TRH200..V1..SP..6FC;TRH200..HRF..4FC..CBU;GDH20#,KDH201..V1..SP;TRH200..V1..HRF..6FC..CBU;GD201312

sub74867-26080

main74867-26080-B0iGDH201..SRF..5D;KDH201..SG..CBU;GDH206..05S,06S,09S;GDH201..V1..HRF..5D;TRH200..V1..SP..6FC;TRH200..HRF..4FC..CBU;GDH20#,KDH201..V1..SP;TRH200..V1..HRF..6FC..CBU;GD201312

sub74867-26080

main74867-26080-B0iGDH201..SRF..5D;KDH201..SG..CBU;GDH206..05S,06S,09S;GDH201..V1..HRF..5D;TRH200..V1..SP..6FC;TRH200..HRF..4FC..CBU;GDH20#,KDH201..V1..SP;TRH200..V1..HRF..6FC..CBU;GD201312

sub74867-26080

main74867-26130-B1iGDH201..SRF..5D;KDH201..SG..CBU;GDH206..05S,06S,09S;GDH201..V1..HRF..5D;TRH200..V1..SP..6FC;TRH200..HRF..4FC..CBU;GDH20#,KDH201..V1..SP;TRH200..V1..HRF..6FC..CBU;GD201312-202312

sub74867-26130

main74867-26130-B1iGDH223,KDH223,TRH214,219,223,228..DX201312

sub74867-26130

74898PAD, SEPARATOR BAR

main74898-26020iGDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC)201312

main74898-26020iGDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC)201312

main74898-26020iTRH200..SRF..(03S,06S)..5F201312-202312

9015460043

main90154-60043

8 parts on this diagram · 4 diagrams in section
