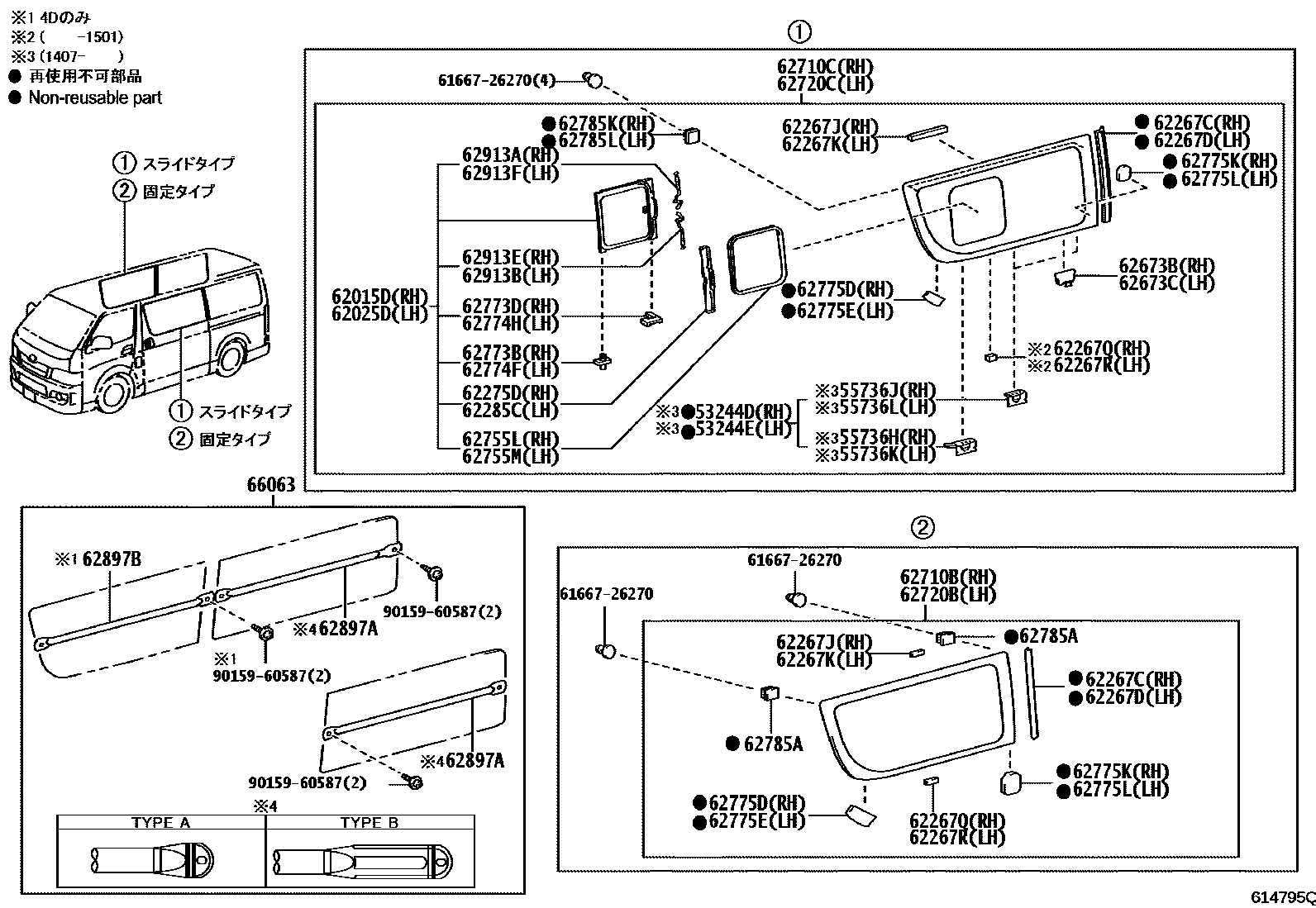

SIDE WINDOW

0001 1 0002 1 0003 1 0004 1

53244DPLATE, FRONT SIDE WINDOW SEAL SET, RH

main53244-26030iKDH201..HRF..5D;GDH201..V1..HRF..5D;TRH214,219..4D..6FC;KDH201..HRF..4D..4FC;TRH200..5D..(05S,06S)..4FC;TRH200..SRF..(05S,06S,09S)..6FC;TRH200,22#..(COM,V1,WG)..HRF201407-202107

53244EPLATE, FRONT SIDE WINDOW SEAL SET, LH

main53244-26040iGDH201,223..IV5;TRH200..(06S,09S)..5F201407-202107

55736HPLATE, FRONT SIDE WINDOW WATER GUIDE, NO.1 RH

main55736-26070iGDH201,223..IV5;TRH200..(06S,09S)..5F201407-202107

55736JPLATE, FRONT SIDE WINDOW WATER GUIDE, NO.2 RH

main55736-26090iKDH201..HRF..5D;GDH201..V1..HRF..5D;TRH214,219..4D..6FC;KDH201..HRF..4D..4FC;TRH200..5D..(05S,06S)..4FC;TRH200..SRF..(05S,06S,09S)..6FC;TRH200,22#..(COM,V1,WG)..HRF201407-202107

55736KPLATE, FRONT SIDE WINDOW WATER GUIDE, NO.1 LH

main55736-26080iGDH201,223..IV5;TRH200..(06S,09S)..5F201407-202107

55736LPLATE, FRONT SIDE WINDOW WATER GUIDE, NO.2 LH

main55736-26090iGDH201,223..IV5;TRH200..(06S,09S)..5F201407-202107

62015DFRAME SUB-ASSY, FRONT SIDE WINDOW, RH

main62015-26030iTRH224..IV5;KDH223,TRH214,219,223,228..DX;TRH200,221,226..(06S,09S)..6FC201312-201601

main62015-26030iKDH20#,221,TRH200..(06S,09S)..(4FC,5F)201501-201601

main62015-26031iGDH20#,223,KDH20#,223..IV5201602-201801

sub62015-26032

main62015-26032iGDH20#,223,TRH200,223,228..IV5201801-201903

main62015-26033iGDH206,TRH200,223,228..IV5201904

main62015-26060iKDH20#,211..SGL201501-201601

main62015-26060iKDH223,TRH214,219,223,228..DX201312-201601

main62015-26061iTRH214,219..4D..GL;GDH20#,KDH20#,TRH200..IV5;TRH221,224,226..(02S,10S)..(CBU,IV6,IV7);GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,228,229..GC,GL,SGL201602-201903

sub62015-26062

main62015-26062iGDH223..GL..CBU;TRH214,219,223,228..4D..GL;GDH206,221,226,TRH200..IV5,IV6;GDH20#,211,TRH200,211,216,221,224,226,229..02S,05S,10S201904

62025DFRAME SUB-ASSY, FRONT SIDE WINDOW, LH

main62025-26030iKDH223,TRH214,219,223,228..DX201312-201601

main62025-26031iGDH223,KDH223..DX201602-201801

sub62025-26032

main62025-26032iGDH20#,223,TRH200,223,228..IV5201801-201903

main62025-26033iGDH201..V1..HRF..5D;TRH200..V1..HRF..6FC..CBU;GDH201,TRH200..SRF..(06S,09S)..6FC;GDH206,22#,TRH214,219,221,223,226,228..(05S,06S,09S,10S,14S)..DX201904

main62025-26060iKDH223,TRH214,219,223,228..DX201312-201601

main62025-26060iKDH20#,211..SGL201501-201601

main62025-26061iTRH214,219..4D..GL;GDH20#,KDH20#,TRH200..IV5;TRH221,224,226..(02S,10S)..(CBU,IV6,IV7);GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,228,229..GC,GL,SGL201602-201903

sub62025-26062

main62025-26062iGDH223..GL..CBU;TRH214,219,223,228..4D..GL;GDH206,221,226,TRH200..IV5,IV6;GDH20#,211,TRH200,211,216,221,224,226,229..02S,05S,10S201904

62267CDAM, FRONT SIDE WINDOW ADHESIVE, NO.1 RH

main62267-26010iGDH201,223..IV5;TRH200..4D..SG..5F201312-202312

main62267-26020iTRH200..5D..5F201312-202312

main62267-26020iTRH214..4FC..GL201312

62267DDAM, FRONT SIDE WINDOW ADHESIVE, NO.1 LH

main62267-26020iTRH200..SG..5F;GDH201,223..IV5201312-202312

62267JDAM, FRONT SIDE WINDOW ADHESIVE, NO.2 RH

main62267-26030iTRH200..SG..5F;GDH201,223..IV5201312-202312

main62267-26030iTRH214..4FC..GL201312

62267KDAM, FRONT SIDE WINDOW ADHESIVE, NO.2 LH

main62267-26030iTRH200..SG..5F;GDH201,223..IV5201312-202312

62267QDAM, FRONT SIDE WINDOW ADHESIVE, NO.3 RH

main62267-26040iKDH20#,223,TRH200,214,219,22#..(HRF,SMRF)..(02S,03S,10S,14S)201312-202312

main62267-26040iTRH214..4FC..GL201312

62267RDAM, FRONT SIDE WINDOW ADHESIVE, NO.3 LH

main62267-26040iTRH224..CBU;KDH20#,223,TRH200,214,219,221,223,226,228,229..(HRF,SMRF)..(02S,03S,10S,14S)201312-202312

62275DCOVER, FRONT SIDE WINDOW, RH

main62275-26110iGDH201,223..IV5201312-202312

main62275-26110iKDH201..V1..HRF..5F;TRH200,221,226..(06S,09S)..4FC201312

62285CCOVER, FRONT SIDE WINDOW, LH

main62285-26010iTRH224..CBU;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200,221,226..HRF..(02S,03S)..4FC;GDH201,TRH200..SRF..(05S,06S,09S)..6FC;GDH206,KDH20#,223,TRH214,219,223,228201312

main62285-26010iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC201312-202312

62673BCOVER, FRONT SIDE WINDOW RAIL, RH

main62673-26070iKDH20#,211,221..05S,06S,09S201312-202312

main62673-26070iKDH201..V1..HRF..5F;TRH200,221,226..(06S,09S)..4FC201312

62673CCOVER, FRONT SIDE WINDOW RAIL, LH

main62673-26070iTRH224..CBU;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200,221,226..HRF..(02S,03S)..4FC;GDH201,TRH200..SRF..(05S,06S,09S)..6FC;GDH206,KDH20#,223,TRH214,219,223,228201312

main62673-26070iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC201312-202312

62710BWINDOW ASSY, SIDE, FRONT RH

main62071-26031iKDH201..HRF..4D..5F;GDH20#,KDH20#..4D..SG..03S..CBU;TRH200,221,226..4D..SG..4FC..CBU;TRH200..4D..SG..03S..(5F,6FC)..CBU201312-201903

sub62071-26032

main62071-26031iKDH206..4D..(06S,09S);TRH200..4D..(06S,09S)..5F;KDH201..SRF..4D..(06S,09S);KDH201,221..HRF..4D..4FC..CBU201312-201501

sub62071-26032

main68103-26010iKDH201..V2..HRF;KDH206..5D..06S;TRH200..5D..06S..5F;KDH201..SRF..5D..06S;KDH201..V1..HRF..5D..4FC201312-201903

sub68103-26011

main68103-26011iGDH206..5D..06S;GDH201,TRH200..V1..HRF..5D..6FC;GDH201,TRH200..SRF..5D..06S..6FC201904

main68103-26020iGDH20#,KDH201,TRH200..5D..03S201312-201903

sub68103-26021

main68103-26020iKDH20#,211..SGL201312-201501

sub68103-26021

main68103-26021iTRH200..5D..03S..6FC201904

main62071-26041iGDH223,KDH223,TRH214,219,223,224,228,229..4D..CBU201312-201903

sub62071-26042

main62071-26042iTRH200..4D..(06S,09S)..5F201904-202107

62710CGLASS SUB-ASSY, SIDE FRONT WINDOW, RH

main62710-26500iTRH224..IV5;KDH223,TRH214,219,223,228..DX201312-201406

main62710-26501iTRH224..IV5;KDH223,TRH214,219,223,228..DX;TRH200,221,226..4D..(06S,09S)..6FC201407-201601

main62710-26501iKDH20#,221,TRH200..4D..(06S,09S)..(4FC,5F)201501-201601

main62710-26502iTRH224..IV5;GDH20#,22#,KDH20#,22#,TRH200,214,219,221,223,226,228..4D..(05S,06S,09S,10S,14S)..DX201602-201903

main62710-26503iGDH20#,223,TRH200,223,228..IV5201904-201906

sub62710-26504

main62710-26504iGDH206,TRH200,223,228..IV5201907

main62710-26510iKDH223,TRH214,219,223,228..DX201312-201406

main62710-26511iKDH223,TRH214,219,223,228..DX201407-201601

main62710-26512iTRH224..CBU;GDH223,KDH223,TRH214,219,223,228..4D..GL;GDH20#,KDH20#,TRH200,221,226,229..HRF..(02S,03S,10S)201602-201903

main62710-26513iGDH20#,221,226,TRH200,221,226..4D..(05S,06S,09S)201904-201906

sub62710-26514

main62710-26514iGDH201..SRF..4D..(06S,09S);GDH206,221,226,TRH200,221,226..4D..(05S,06S,09S)..6FC201907

main62750-26301iKDH20#,TRH200..5D..06S201501-201601

main62750-26311iKDH20#,211,TRH200,211,216..SGL201501-201601

main62750-26312iGDH20#,211,KDH20#,211,TRH200,211,216..SGL201602-201903

main62750-26313iGDH20#,TRH200..5D..06S201904-201906

sub62750-26314

main62750-26314iGDH20#,211,TRH200,211,216..SGL201907

main62750-26300iKDH20#,TRH200..5D..06S201312-201406

main62750-26310iKDH20#,TRH200..5D..06S201312-201406

62720BWINDOW ASSY, SIDE, FRONT LH

main68104-26011iTRH224..IV5;KDH201..V1..HRF..5F;GDH20#,KDH20#..SG..03S..CBU;TRH200..SG..03S..(5F,6FC)..CBU;TRH200,221,226..SG..4FC..DX..CBU201312-201903

sub68104-26012

main68104-26011iKDH20#,TRH200..IV5201312-201501

sub68104-26012

main68104-26012iGDH201..V1..HRF..5D;TRH200..V1..HRF..6FC..CBU;GDH201,TRH200..SRF..(06S,09S)..6FC;GDH206,221,226,TRH221,226..(05S,06S,09S)..DX201904

main68104-26021iKDH20#,TRH200..IV5201312-201501

sub68104-26022

main68104-26021iTRH221,226..IV6;GDH223,KDH223,TRH223,228..GL..CBU201312-201903

sub68104-26022

main68104-26022iTRH214,219,224,229..4D..(GC,GL)201904

62720CGLASS SUB-ASSY, SIDE FRONT WINDOW, LH

main62760-26691iKDH20#,221,TRH200..(06S,09S)..(4FC,5F)201407-201601

main62760-26692iGDH20#,22#,KDH20#,22#,TRH200,214,219,221,223,226,228..(05S,06S,09S,10S,14S)..DX201602-201903

main62760-26693iGDH20#,223,TRH200,223,228..IV5201904-201906

sub62760-26694

main62760-26694iGDH201..V1..HRF..5D;TRH200..V1..HRF..6FC..CBU;GDH201,TRH200..SRF..(06S,09S)..6FC;GDH206,22#,TRH214,219,221,223,226,228..(05S,06S,09S,10S,14S)..DX201907

main62760-26700iKDH223,TRH214,219,223,228..DX201312-201406

main62760-26701iKDH223,TRH214,219,223,228..DX201407-201601

main62760-26701iKDH20#,211..SGL201501-201601

main62760-26702iTRH214,219..4D..GL;GDH20#,KDH20#,TRH200..IV5;TRH221,224,226..(02S,10S)..(CBU,IV6,IV7);GDH20#,211,223,KDH20#,211,223,TRH200,211,216,223,228,229..GC,GL,SGL201602-201903

sub62760-26703

main62760-26703iTRH214,219..4D..GL;GDH20#,TRH200,221,226..HRF..(02S,03S);GDH20#,211,223,TRH200,211,216,223,224,228,229..GC,GL,SGL201904-201906

sub62760-26704

main62760-26704iGDH223..GL..CBU;TRH214,219,223,228..4D..GL;GDH206,221,226,TRH200..IV5,IV6;GDH20#,211,TRH200,211,216,221,224,226,229..02S,05S,10S201907

62755LRUN, FRONT SIDE WINDOW, RH

main62755-26030iKDH20#,211,TRH200,211,216..SGL201312-201401

sub62755-26031

main62755-26031iTRH221,226..02S..4FC;TRH200,211,216,221,226..(02S,05S,06S,09S)..6FC;KDH20#,223,TRH200,214,219,223,224,228,229..(HRF,SMRF)..(02S,03S,10S,14S)201402-201601

sub62755-26032

main62755-26032iGDH201,223..IV5;TRH200..(06S,09S)..5F201602-202312

62755MRUN, FRONT SIDE WINDOW, LH

main62755-26030iKDH20#,211,221,TRH200,211,216,221,226..05S,06S,09S201312-201401

sub62755-26031

main62755-26031iKDH20#,211,221,TRH200..(05S,06S,09S)..(4FC,5F)201402-201601

sub62755-26032

main62755-26032iGDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;GDH201,TRH200..SRF..(05S,06S,09S)..6FC;GDH206,KDH20#,223,TRH214,219,223,228..(HRF,SMRF)..4D..(02S,03S,10S,14S);GDH206,211,2201602-202312

62773BSLIDER, FRONT SIDE WINDOW, RH

main62773-26020iGDH201,223..IV5201312-202312

main62773-26020iKDH201..V1..HRF..5F;TRH200,221,226..(06S,09S)..4FC201312

62773DSLIDER, FRONT SIDE WINDOW, RH

main62773-26030iGDH201,223..IV5201312-202312

main62773-26030iKDH201..V1..HRF..5F;TRH200,221,226..(06S,09S)..4FC201312

62774FSLIDER, FRONT SIDE WINDOW, LH

main62774-26010iTRH200..(06S,09S)..5F201312-202312

main62774-26010iTRH224..CBU;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200,221,226..HRF..(02S,03S)..4FC;GDH201,TRH200..SRF..(05S,06S,09S)..6FC;GDH206,KDH20#,223,TRH214,219,223,228201312

62774HSLIDER, FRONT SIDE WINDOW, LH

main62774-26020iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC201312-202312

main62774-26020iTRH224..CBU;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200,221,226..HRF..(02S,03S)..4FC;GDH201,TRH200..SRF..(05S,06S,09S)..6FC;GDH206,KDH20#,223,TRH214,219,223,228201312

62775DCLIP, FRONT SIDE WINDOW, RH

main62775-26010iTRH214..4FC..GL201312

main62775-26010iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main62775-26020iTRH214..4FC..GL201312

62775ECLIP, FRONT SIDE WINDOW, LH

main62775-26030iTRH200..SG..5F;GDH201,223..IV5201312-202312

62775KCLIP, FRONT SIDE WINDOW, RH

main62775-26020iGDH206..IV5;GDH201..SRF..5D;TRH200..HRF..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;GDH201..SRF..4D..(06S,09S);KDH20#,223,TRH223,224,228..SG;TRH200..4D..SG..03S..201312-202312

62775LCLIP, FRONT SIDE WINDOW, LH

main62775-26020iGDH206..IV5;GDH201..SRF..5D;TRH200..HRF..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;GDH201..SRF..4D..(06S,09S);KDH20#,223,TRH223,224,228..SG;TRH200..4D..SG..03S..201312-202312

62785ASPACER, QUARTER WINDOW GLASS

main62785-26020iKDH201..V2..HRF;TRH200..(06S,09S)..5F;KDH201..V1..HRF..4FC..CBU;KDH201..SRF..(05S,06S,09S);KDH206,211,221..05S,06S,09S201312-201501

main62785-26020iTRH200..SG..03S..5F201312-202107

main62785-26020iGDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main62785-26020iGDH223,KDH223,TRH214,219,223,228..DX201312

62785KSPACER, FRONT SIDE WINDOW GLASS, RH

main62785-26020iGDH201,223..IV5201312-202312

main62785-26020iKDH201..V1..HRF..5F;TRH200,221,226..(06S,09S)..4FC201312

62785LSPACER, FRONT SIDE WINDOW GLASS, LH

main62785-26020iKDH20#,211,221..05S,06S,09S201312-202312

main62785-26020iTRH224..CBU;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200,221,226..HRF..(02S,03S)..4FC;GDH201,TRH200..SRF..(05S,06S,09S)..6FC;GDH206,KDH20#,223,TRH214,219,223,228201312

62897ABAR, SIDE WINDOW GUARD

main62897-26060-B0iKDH221,TRH221,226..4FC..CBU201312-201711

62897BBAR, SIDE WINDOW GUARD

main62897-26080-B0iKDH20#,TRH200..4D..SG..03S..(4FC,5F)..CBU201312-202107

62913ALINK, FRONT SIDE WINDOW LOCK, RH

main62910-26060iGDH201,223..IV5;TRH200..V2..HRF..5F;TRH200..HRF..4D..5F;TRH200..SRF..(06S,09S)..5F201312-202107

main62910-26060iTRH200,211,216..6FC..SGL;GDH20#,211,KDH20#,211..SGL201312

62913BLINK, FRONT SIDE WINDOW LOCK, LH

main62910-26060iGDH201,223..IV5;TRH200..(06S,09S)..5F201312-202107

62913ELINK, FRONT SIDE WINDOW LOCK, RH

main62920-26010iTRH200,211,216..6FC..SGL;GDH20#,211,KDH20#,211..SGL201312

main62920-26010iGDH201,223..IV5;TRH200..V2..HRF..5F;TRH200..HRF..4D..5F;TRH200..SRF..(06S,09S)..5F201312-202107

62913FLINK, FRONT SIDE WINDOW LOCK, LH

main62920-26010iGDH201,223..IV5;TRH200..(06S,09S)..5F201312-202107

66063GUARD SUB-ASSY, SIDE WINDOW

main66063-26010-B0iGDH221,226,TRH221,226..CBU201501-202507

main66063-26020-B0iGDH20#,TRH200..4D..SG..03S..6FC..CBU201501-202312

6166726270REINFORCEMENT, SEAT BELT ANCHORAGE, LOWER RH

main61667-26270

9015960587

main90159-60587

44 parts on this diagram · 4 diagrams in section
