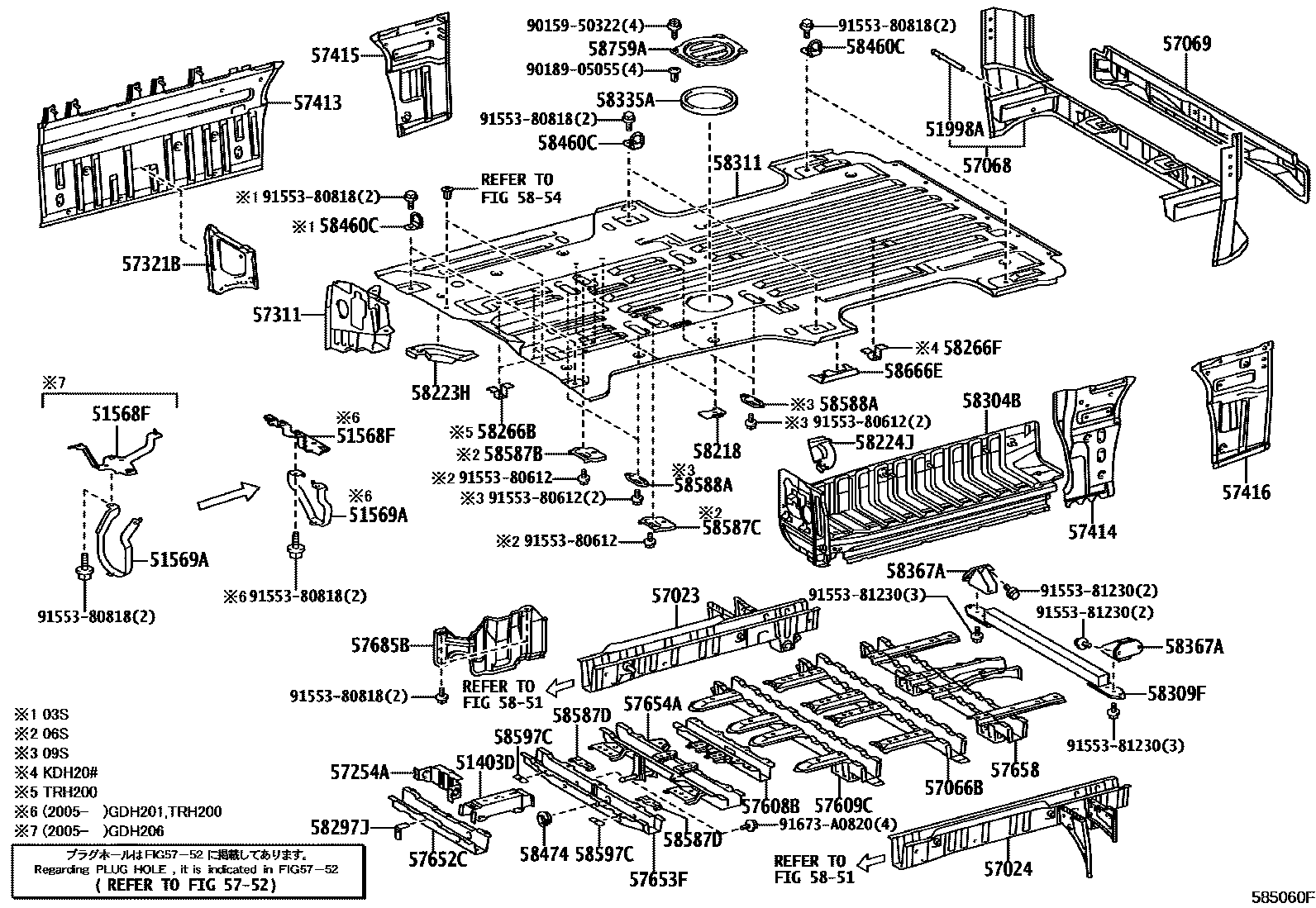

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1�������� 0010 1��������� 0011 1�������&������� 0012 1�������&������� 0013 1�������(�����) 0014 1�������(�����A) 0015 1�������(�����A) 0016 1�������(�����B) 0017 1�������(�����C���D)

51403DBRACKET SUB-ASSY, ENGINE REAR MOUNTING

main51403-26232iTRH200,211,214,221,223,224..4FC201312-201501

sub51403-26320

main51403-26290iKDH201,211,22#201312-201501

main51403-26300iKDH206201312-201711

main51403-26310iTRH200..V2..HRF..6FC;TRH200..4D..SG..03S..6FC..CBU201501-202312

main51403-26330iGDH201,223..IV5201501-202312

main51403-26350iGDH206..4D..SG..03S..CBU201712-202312

main51431-26172iTRH216,219,226,228,229201312-201501

main51431-26190iTRH216,219,226,228,229201501

main51431-26202iTRH200..5F201312-202107

51568FBRACKET, PROPELLER SHAFT GUARD

main51568-26040iTRH200..5F;GDH201..IV5202005-202312

main51568-26050iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S202005-202312

51569AGUARD, PROPELLER SHAFT

main51460-26020iGDH211,22#..CBU,IV6202005

main51460-26020iTRH21#,22#202005-202107

main51470-26040iGDH223..IV5202005-202107

main51569-26120iGDH201..SRF..5D;GDH201..V1..HRF..5D;TRH200..5D..03S..6FC;TRH200..V1..HRF..6FC;GDH201,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);TRH200..SRF..(05S,06S,09S)..6FC202005-202312

main51569-26130iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S202005-202312

main51569-26140iGDH223..IV5202005-202107

51998AHANGER, EXHAUST PIPE SUPPORT, NO.6

main51998-26030iKDH20#,211,22#,TRH200,21#,22#201312-201607

sub51998-26080

main51998-26080iGDH206..IV5;GDH201..SRF..5D;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;KDH20#,223,TRH223,228;GDH20#,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S.201608-202312

57023MEMBER SUB-ASSY, REAR SIDE, RH

main57023-26640iGDH201,TRH200..V2..HRF..6FC201312-202312

main57023-26640iGDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC)201312

main57023-26640iGDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC)201312-202107

main57023-26640iKDH20#..5D..03S..4FC201312-201711

main57023-26650iTRH200..V1..5F;GDH201,223..IV5201312-202312

main57023-26650iGDH223,KDH223,TRH223,228..DX201312

main57023-26660iTRH221,226..IV7201312

main57023-26680iTRH224,229201610

main57023-26680iTRH229201610

main57023-26680iTRH229201609-201701

main57023-26680iTRH224..6FC..CBU201312

main57023-26680iTRH224,229201712

57024MEMBER SUB-ASSY, REAR SIDE, LH

main57024-26640iGDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC)201312

main57024-26640iKDH20#..5D..03S..4FC201312-201711

main57024-26640iTRH200..V2..5F201312-202107

main57024-26640iGDH201,TRH200..V2..HRF..6FC201312-202312

main57024-26650iGDH206,KDH20#,223,TRH200,223,224,228..IV5201312-202107

main57024-26660iTRH200..V1..5F201312-202312

main57024-26660iGDH223,KDH223,TRH223,228..DX201312

main57024-26670iTRH221,226..IV7201312

main57024-26690iTRH229201610

main57024-26690iTRH214,219..GL;GDH223,KDH223,TRH223,228..CBU201312

main57024-26690iTRH224201610

main57024-26690iTRH229201609-201701

main57024-26690iTRH224,229201712

57066BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6

main57066-26121iGDH201..IV5;TRH200..V1..5F201312-202312

main57066-26151iGDH201,TRH200..V2..HRF..6FC201312-202312

main57066-26162iGDH223..IV5201312-202507

main57066-26182iTRH214,219..DX201312-202507

main57066-26202iTRH229201609-201701

main57066-26202iTRH224201610

main57066-26202iTRH224,229201610

main57066-26202iTRH214,219..4D..GL;GDH223,KDH223,TRH223,228..CBU201312-202507

main57066-26202iTRH224,229201712-202507

main57066-26202iTRH224..6FC..CBU201312

main57066-26262iTRH214..4FC..GL201312

main57066-26262iTRH214..GL201404-201712

main57066-26262iTRH214,219..5D201712-202507

main57066-26262iTRH214..4D..GL201503

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-26230iTRH200..SP..5F201312-202107

main57068-26230iGDH201..HRF..4D..CBU;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main57068-26240iGDH20#,KDH20#,TRH200..SGL201312

main57068-26280iGDH201..IV5201312-202107

main57068-26290iGDH221,226,KDH221,TRH214,219,221,226..DX201312

main57068-26300iGDH211,KDH211,TRH211,216,224,229..CBU201312

main57068-26310iTRH224201609-201701

main57068-26310iGDH223..IV5201312-202107

main57068-26310iTRH224201610

main57068-26310iTRH229201610

main57068-26310iTRH224,229201712

main57068-26310iTRH224..IV5;GDH223..GL..CBU;KDH223,TRH214,219,223,228..GL201312

main57068-26320iTRH200..SP..5F201312-202107

main57068-26340iGDH201,TRH200..V2..HRF..6FC201312-202312

main57068-26350iGDH223,KDH223,TRH223,228..DX201312

57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

main57069-26140iKDH20#;GDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;GDH206..05S,06S,09S;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;GDH201201312-202312

main57069-26150iTRH214,219201312

main57069-26170iGDH223..IV5201312-202107

main57069-26180iGDH22#,KDH223,TRH22#..(02S,10S,14S)..(CBU,IV6)201312

main57069-26210iTRH221,226..IV7201312

57254AREINFORCEMENT, ENGINE REAR MOUNTING MEMBER

main57254-26041iTRH200..5F;GDH201,223..IV5201312-202312

57311OUTRIGGER, NO.1 RH

main57301-26070iGDH201,KDH201,TRH200..V2..03S;TRH200..SRF..4D..(06S,09S)..(4FC,6FC);GDH201,KDH201,TRH214..(SMRF,SRF)..4D..(06S,09S,10S)201312-202107

main57301-26080iKDH201..V1..4D..03S..CBU;GDH201,TRH200..V1..SP..6FC;TRH200..V1..4D..03S..4FC..CBU201312-202312

main57301-26090iGDH206,KDH206..SP201312

main57301-26090iGDH223..IV5;TRH200..HRF..4D..5F201312-202312

main57301-26100iKDH20#,TRH200..IV5201312-202312

57321BOUTRIGGER, NO.5, RH

main57321-26010iGDH206,TRH200..IV5;GDH201..SRF..4D..(06S,09S);GDH20#,TRH200..SP..(4FC,6FC);KDH20#,223,TRH223,224,228..4D;TRH200..4D..SG..03S..4FC..CBU;GDH206,22#,KDH221,TRH200,214,201312-202312

57413RAIL, FLOOR SIDE, CENTER RH

main57405-26A00iGDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main57405-26A00iKDH20#..4D..03S..CBU;GDH20#,TRH200..SP..(4FC,6FC);TRH200..4D..SG..03S..4FC..CBU201312

main57405-26A70iGDH201..IV5201312-202107

main57405-26A80iTRH200..V1..5D..06S..5F201312-202107

main57405-26A90iTRH200..V2..5F201312-202107

main57405-26A90iGDH201,TRH200..V2..HRF..6FC201312-202312

main57405-26B10iGDH20#,211,KDH20#,211,TRH200,211,216..SGL201312

main57405-26B10iTRH214..GL201404-201712

main57405-26B10iTRH214..4D..GL201503

main57405-26B40iGDH221,226,TRH221,226..02S201312

main57405-26B60iGDH223,KDH223,TRH223,228..DX201312

main57405-26B80iGDH223,KDH223,TRH223,224,228,229..(GC,GL)..CBU201312

main57405-26C50iGDH221,226,TRH221,226..02S201312

main57405-26C60iGDH223,KDH223,TRH223,228..DX201312

main57405-26C80iTRH214,219..4D..GL201312

main57405-26D10iGDH223..IV5201312-202107

main57405-26D40iGDH201..SRF..4D..06S;GDH206,KDH20#..4D..06S;TRH200..4D..06S..(4FC,6FC)201312-202312

main57405-26D50iGDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)201312-202107

main57405-26D60iGDH201..HRF..4D..CBU201312-202312

main57405-26D70iKDH221,TRH221,226..CBU201312-201606

main57405-26D80iKDH221,TRH221,226..CBU201312-201606

main57405-26D90iKDH20#..V1..4D..03S..CBU;GDH20#,TRH200..V1..SP..6FC;TRH200..V1..4D..03S..4FC..CBU201312-202312

main57405-26E60iGDH221,226,KDH221,TRH221,226..CBU201606

main57405-26E70iGDH221,226,KDH221,TRH221,226..CBU201606

main57405-26F70iTRH224,229201610

main57405-26F70iTRH229201610

main57405-26F70iTRH224201609-201701

main57405-26F70iTRH224,229201712

main57405-26F70iTRH224201609

main57405-2F020iTRH214,219..DX201312

main57413-26A70iTRH200..5D..03S..5F201312-202107

main57413-26B20iTRH214,219..5D201712

main57413-26D90iTRH200..5D..03S..5F201312-202107

57414RAIL, FLOOR SIDE, CENTER LH

main57406-26500iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC201312-202312

main57406-26510iGDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)201312-202107

main57406-26520iTRH214,219..DX201312

main57406-26530iGDH20#,211,KDH20#,211,TRH200,211,216..SGL201312

main57406-26550iTRH214..4FC..GL201312

main57406-26550iTRH214..GL201404-201712

main57406-26550iGDH201..IV5201312-202107

main57406-26550iTRH214..4D..GL201503

main57406-26620iGDH221,226,KDH221,TRH221,226..CBU201312

main57406-26630iGDH223,KDH223,TRH223,228..DX201312

main57406-26650iGDH223,KDH223,TRH223,224,228,229..(GC,GL)..CBU201312

main57406-26670iKDH223,TRH223,224,228..IV5201312-202107

main57414-26510iTRH214,219..DX201312

main57414-26510iGDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main57414-26620iGDH221,226,TRH221,226..02S201312

main57414-26670iTRH229201609-201701

main57414-26670iTRH224..6FC..CBU201410

main57414-26670iTRH224201610

main57414-26670iTRH224201610

main57414-26670iTRH224,229201712

main57414-26750iTRH214,219..GL201312

main57414-26760iGDH223,KDH223,TRH223,228..DX201312

57415RAIL, FLOOR SIDE, REAR RH

main57047-26180iTRH214,219..DX201312

main57047-26220iGDH223,KDH223,TRH223,228..DX201312

main57047-26240iTRH229201609-201701

main57047-26240iTRH229201610

main57047-26240iTRH224,229201712

main57047-26240iTRH224,229201610

main57047-26240iGDH223,KDH223,TRH214,219,223,228..GL..CBU201312

main57047-26270iGDH206,KDH20#,223,TRH200,223,224,228..IV5201312-202107

main57047-26280iKDH201..V2;TRH200..V2..HRF..4FC;GDH201,TRH200..V2..SRF..(4FC,6FC)201312-202312

main57415-26210iGDH201..HRF..4D..CBU;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main57415-26210iGDH201..V1..5D..DX;KDH20#..V1..DX..CBU;GDH20#,TRH200..V1..SP..6FC;GDH201..SRF..4D..(06S,09S);TRH200..V1..4D..03S..4FC..CBU;GDH206,TRH200..5D..03S..(4FC,6FC);GDH206,201312

main57415-26220iGDH20#,211,KDH20#,211,TRH200,211,216,224,229..(GC,SGL)..CBU201312

57416RAIL, FLOOR SIDE, REAR LH

main57048-26160iTRH214,219..DX201312

main57048-26200iGDH223,KDH223,TRH223,228..DX201312

main57048-26220iTRH224201609-201701

main57048-26220iGDH223,KDH223,TRH214,219,223,228..GL..CBU201312

main57048-26220iTRH224201610

main57048-26220iTRH224201610

main57048-26220iTRH224,229201712

main57048-26250iGDH206,KDH20#,223,TRH200,223,224,228..IV5201312-202107

main57048-26260iGDH201,TRH200..V2..HRF..6FC201312-202312

main57416-26160iGDH201..V1..5D..DX;KDH20#..V1..DX..CBU;GDH20#,TRH200..V1..SP..6FC;GDH201..SRF..4D..(06S,09S);TRH200..V1..4D..03S..4FC..CBU;GDH206,TRH200..5D..03S..(4FC,6FC);GDH206,201312

main57416-26160iTRH200..V1..5F201312-202312

main57416-26170iGDH20#,211,KDH20#,211,TRH200,211,216,224,229..(GC,SGL)..CBU201312

5752

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-26301iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main57608-26361iGDH206,KDH20#,TRH200..IV5201312-202107

main57608-26372iGDH211,KDH211,TRH211,216201312

main57608-26382iTRH214,219..4D201312

main57608-26392iGDH221,226,KDH221,TRH221,226201312

main57608-26402iGDH223..IV5201312-202107

main57608-26412iTRH214..6FC..GL201312

main57608-26412iTRH214..GL201404-201712

main57608-26412iTRH214,219..5D201712

main57608-26412iTRH214..4D..GL201503

57609CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

main57609-26182iGDH201..V1..5D;KDH20#..V1..CBU;GDH201..SRF..4D..(06S,09S);GDH20#,TRH200..V1..SP..6FC;TRH200..V1..4D..03S..4FC..CBU;GDH206,TRH200..5D..03S..(4FC,6FC);GDH206,TRH200..201312-202312

main57609-26212iGDH206,KDH20#,TRH200..IV5201312-202107

main57609-26222iTRH200..V2..5F201312-202312

main57609-26232iTRH214,219..4D;GDH211,KDH211,TRH211,216201312

main57609-26242iGDH221,226,KDH221201312

main57609-26272iKDH223;GDH223..CBU201312-202107

main57609-26362iTRH214..4D..GL201503

main57609-26362iTRH214..GL201404-201712

main57609-26362iTRH214,219..5D201712

main57609-26362iTRH214..4FC..GL201312

main57609-26411iTRH221,226201312

main57609-26431iTRH223,224,228,229201312

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-26120iKDH20#;GDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;GDH206..05S,06S,09S;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;GDH201201312-202312

main57652-26130iKDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7201312-202107

57653FMEMBER, REAR FLOOR CROSS, NO.2

main57653-26131iTRH200..SP..6FC;TRH200..03S..4FC;TRH200..5D..03S..6FC;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;TRH200..SRF..(05S,06S,09S)..(4FC,6FC)201312-202312

main57653-26141iTRH214,219,22#201312

main57653-26171iTRH211,216201312

main57663-26031iGDH201..IV5201312-202312

main57663-26041iGDH211,KDH211201312

main57663-26051iGDH223..IV5201312-202107

57654AMEMBER, REAR FLOOR CROSS, NO.3

main57607-26591iKDH20#,TRH200..V1..(03S,09S)..CBU201312-201606

sub57607-26A20

main57607-26601iKDH20#,TRH200..05S,06S;KDH201,TRH200..V2..03S201312-201606

sub57607-26A30

main57607-26611iKDH20#,TRH200..IV5201312-201606

sub57607-26A60

main57607-26621iGDH223,KDH223,TRH214,219..4D..CBU201312-201901

main57607-26631iTRH22#..(02S,10S,14S)..(CBU,IV6,IV7)201312-201901

main57607-26641iTRH223,224,228..IV5201312-201901

main57607-26671iTRH214..4FC..GL201312

main57607-26671iTRH214..GL201404-201712

main57607-26671iTRH214,219..5D;GDH211,221,226,KDH211,221,TRH211,216201312-201901

main57607-26671iTRH214..4D..GL201503

main57607-26681iTRH224201610

main57607-26681iTRH224201610

main57607-26681iTRH224201609-201701

main57607-26681iTRH221,226..CBU201312-201901

main57607-26681iTRH224,229201712-201901

main57607-26681iTRH224..6FC..CBU201312

main57607-26881iGDH223,KDH223..IV5201312-201901

main57607-26A00iGDH22#,TRH214,219..4D..(02S,10S,14S)..(CBU,IV6)202005

main57607-26A10iTRH200..09S..5F201606-202107

main57607-26A20iGDH20#,TRH200..4D..SG..03S..6FC..CBU201606-202312

main57607-26A30iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC201606-202312

main57607-26A60iGDH201..IV5201606-202107

main57607-26B40iGDH223,TRH214,219..4D..CBU201901-202005

sub57607-26A00

main57607-26B50iTRH214,219..5D;GDH211,221,226,TRH211,216201901-202005

sub57607-26C20

main57607-26B60iTRH22#..(02S,10S,14S)..(CBU,IV6,IV7)201901-202005

sub57607-26C30

main57607-26B70iTRH224,229201901-202005

sub57607-26C40

main57607-26B80iTRH223,228..IV5201901-202005

sub57607-26C50

main57607-26C10iGDH223..IV5201901-202005

sub57607-26C80

main57607-26C20iTRH214,219..5D;GDH211,221,226,TRH211,216..CBU202005

main57607-26C30iTRH22#..(02S,10S,14S)..(CBU,IV6,IV7)202005

main57607-26C40iTRH221,226..CBU202005

main57607-26C50iTRH223,228..IV5202005

main57607-26C80iGDH223..IV5202005-202107

57658MEMBER, REAR FLOOR CROSS, NO.7

main57067-26101iGDH201..HRF..4D..CBU;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main57067-26151iGDH201..IV5;TRH200..V2..5F201312-202312

main57067-26171iTRH224,229..CBU201312

main57067-26191iTRH214,219..DX201312

main57067-26241iKDH223,TRH223,224,228..IV5201312-202107

main57067-26261iGDH223,KDH223,TRH223,228..DX201312

main57067-26271iTRH224,229201610

main57067-26271iTRH224201609-201701

main57067-26271iTRH214,219..GL;GDH223,KDH223,TRH223,228..CBU201312

main57067-26271iTRH224201610

main57067-26271iTRH224,229201712

main57067-26281iGDH211,221,226,KDH211,221,TRH211,216,221,226201312

57685BGUARD, FUEL TANK

main57685-26020iGDH22#,KDH22#201312-202005

main57685-26020iGDH22#,KDH22#201312-202005

main57685-26040iGDH201,211,TRH200..5F,6FC201312-202005

main57685-26040iTRH21#,22#201312-202312

main57685-26070iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH201,TRH200..4D..SG..03S..6FC..CBU202005-202312

58218PLATE, SEAT FLOOR PANEL

main58218-26010iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main58218-26010iTRH224201609

58223HREINFORCEMENT, FLOOR PANEL SIDE, RH

main58223-26071iTRH200..5F;GDH201,223..IV5201312-202312

58224JREINFORCEMENT, FLOOR PANEL SIDE, LH

main58224-26091iTRH200..5F;GDH201,223..IV5201312-202312

58266BBRACKET, FUEL TUBE CLAMP

main58266-95J00iTRH200..5F;GDH201,223..IV5201312-202312

main58266-95J00iTRH224201609

58266FBRACKET, FUEL TUBE CLAMP, REAR

main58266-95J00iGDH223..IV5201312-202107

main58266-95J00iTRH224201609

58297JRETAINER, FLOOR CLAMP

main58297-26020iTRH200..5F;GDH201,223..IV5201312-202312

58304BSTEP SUB-ASSY, REAR FLOOR, LH

main58304-26290iGDH20#..V1..SP202204-202208

sub58304-V3010

main58304-26290iGDH20#..V1..SP202204-202208

sub58304-V3010

main58304-26290iGDH20#..SP202204-202208

sub58304-V3010

main58304-26290iGDH226..CBU201712-202208

sub58304-V3010

main58304-26300iGDH20#,KDH20#..V1..03S..CBU201312-202208

sub58304-V3020

main58304-26310iGDH20#..5D..03S202204-202208

sub58304-V3030

main58304-26310iGDH226..CBU201712-202208

sub58304-V3030

main58304-26320iGDH20#,KDH20#..V1..03S..CBU201312-202208

sub58304-V3040

main58304-26330iTRH200..(06S,09S)..5F201312-202208

sub58304-V3050

main58304-26340iTRH200..V1..03S..(4FC,6FC)..CBU201312-202208

sub58304-V3060

main58304-26340iTRH200..V1..SP..6FC201606-201701

sub58304-V3060

main58304-26410iTRH200,221,226..(06S,09S)..(4FC,6FC)201312-202208

sub58304-V3120

main58304-26420iTRH200..03S..5F201312-202208

sub58304-V3130

main58304-26440iTRH200,211,216,221,226..(02S,05S)..(CBU,IV6)201312-202208

sub58304-V3140

main58304-26450iGDH221,226..IV6;GDH20#,211,KDH20#,211..SGL201312-202208

sub58304-V3150

main58304-26460iGDH201,223..IV5201312-202208

sub58304-V3160

main58304-26470iTRH224..CBU;TRH200,214,219,223,228,229..(HRF,SMRF)..4D..(02S,03S,10S,14S)201312-202208

sub58304-V3170

main58304-26480iGDH221,226..IV6202108

main58304-26480iGDH20#,211,KDH20#,211..SGL201312

main58304-26480iGDH20#,211..SGL201808

main58304-26480iGDH221,226..IV6202005-202108

main58304-26490iGDH223,KDH223..CBU201312-202107

main58304-26490iGDH223,KDH223..CBU201312

main58304-26500iTRH214..6FC..GL201312

main58304-26500iTRH200,211,216..SGL201312

main58304-26500iTRH221,226..IV6201312-202108

main58304-26500iTRH214..GL201404-201712

main58304-26500iTRH221,226..IV6202108

main58304-26500iTRH214..4D..GL201503

main58304-26500iTRH200,211,216..SGL201808

main58304-26510iTRH214,219..DX;TRH223,228..CBU201312

main58304-26510iTRH214,219..DX;TRH223,228..CBU201312

main58304-26530iGDH223,KDH223..DX201312-202208

sub58304-V3180

main58304-26540iTRH214,219,223,228..DX201312-202208

sub58304-V3190

main58304-26710iGDH20#,221,KDH20#,221..(05S,06S,09S)..DX201312-202208

sub58304-V3300

main58304-26760iGDH20#,221,KDH20#,221..(05S,06S,09S)..DX201312-202208

sub58304-V3320

main58304-26A10iGDH20#,KDH20#..V1..SP201312-202208

sub58304-V3330

main58304-26A10iGDH201,KDH201..V2..03S201312-202208

sub58304-V3330

main58304-26A10iGDH20#,KDH20#..V1..SP201312-202204

sub58304-V3330

main58304-26A10iKDH20#..5D..03S..4FC201312-201711

sub58304-V3330

main58304-26A20iTRH200..V1..SP..(4FC,6FC)201312-202208

sub58304-V3340

main58304-26A20iTRH200..SP..5F201312-202208

sub58304-V3340

main58304-26A50iTRH221,226..IV7201312-202208

sub58304-V3350

main58304-26A60iTRH221,226..IV7201312

main58304-26A70iTRH214,219..DX201312-202208

sub58304-V3360

main58304-26A70iTRH214,219..DX201312-202208

sub58304-V3360

main58304-26A80iTRH214,219,224,229..4D..(GC,GL)..CBU201312

main58304-26A80iTRH214,219,224,229..4D..(GC,GL)..CBU201312

main58304-26B20iGDH20#,KDH20#..5D..03S..(4FC,6FC)201312-202204

main58304-26B20iKDH20#..5D..03S..4FC201312-201711

main58304-26E00iTRH200,211,216..SGL201808-202208

sub58304-V3390

main58304-26E10iGDH20#,211..SGL201808-202208

sub58304-V3400

main58304-V3010iGDH20#..V1..SP202209-202507

main58304-V3010iGDH20#..V1..SP202209-202401

main58304-V3010iGDH20#..5D..03S202209-202401

main58304-V3010iGDH20#..V1..SP202401

main58304-V3010iGDH20#..V1..SP202401

main58304-V3010iGDH20#..V1..SP202401

main58304-V3010iGDH226..CBU202209

main58304-V3020iGDH20#..4D..SG..03S..CBU202209-202312

main58304-V3030iGDH20#..5D..03S202209-202401

main58304-V3030iGDH226..CBU202209

main58304-V3030iGDH20#..5D..03S202401

main58304-V3040iGDH20#..4D..SG..03S..CBU202209-202312

main58304-V3050iTRH200..V2..HRF..6FC202209-202312

main58304-V3060iTRH200..4D..SG..03S..6FC..CBU202209-202312

main58304-V3120iTRH200..V2..HRF..6FC202209-202312

main58304-V3130iTRH200..4D..SG..03S..6FC..CBU202209-202312

main58304-V3140iTRH200,211,216,221,226..(02S,05S)..(CBU,IV6)202209

main58304-V3150iGDH20#,211..SGL;GDH221,226..IV6202209

main58304-V3160iGDH206,223..HRF..(03S,14S)202209

main58304-V3170iTRH200,214,219,223,224,228,229..(HRF,SMRF)..4D..(02S,03S,10S,14S)202209

main58304-V3180iGDH223..DX202209

main58304-V3190iTRH214,219,223,228..DX202209

main58304-V3300iGDH201..V2..HRF;GDH201..HRF..4D..CBU202209-202312

main58304-V3320iGDH201..V1..HRF..5D;GDH201..SRF..(06S,09S);GDH206,221..(05S,06S,09S)..DX202209-202312

main58304-V3330iGDH20#..V1..SP202401-202507

main58304-V3330iGDH20#..V1..SP202401-202507

main58304-V3330iGDH20#..V1..SP202209-202401

main58304-V3330iGDH20#..V1..SP202209-202401

main58304-V3330iGDH201..V2..03S202209-202507

main58304-V3340iTRH200..V1..SP..6FC202209-202401

main58304-V3340iTRH200..V1..SP..6FC202401-202507

main58304-V3340iTRH200..V1..SP..6FC202209-202401

main58304-V3340iTRH200..V2..03S202209-202507

main58304-V3340iTRH200..V1..SP..6FC202401-202507

main58304-V3350iTRH221,226..IV7202209

main58304-V3360iTRH214,219..DX202209

main58304-V3360iTRH214,219,224,229..4D..(GC,GL)202209

main58304-V3390iTRH200,211,216..SGL202209

main58304-V3400iGDH20#,211..SGL202209

58309FBALANCER SUB-ASSY, REAR FLOOR

main58309-26120iGDH20#,KDH20#..V1..SP201312

main58309-26130iTRH200..V1..SP..(4FC,6FC)201312-202012

main58309-26130iTRH200..SP..5F201312-202107

58311PAN, REAR FLOOR

main58311-26A00iKDH20#,TRH200..V1..4D..03S..CBU201312-201403

sub58311-26A01

main58311-26A01iKDH20#..V1..4D..03S..CBU;GDH20#,TRH200..V1..SP..6FC;TRH200..V1..4D..03S..4FC..CBU201403-202312

main58311-26A40iKDH20#,TRH200..4D..06S201312-201403

sub58311-26A41

main58311-26A41iTRH200..4D..06S..5F201403-202312

main58311-26A50iKDH20#,TRH200..4D..06S201312-201403

sub58311-26A51

main58311-26A51iGDH201..HRF..4D..CBU201403-202312

main58311-26A70iKDH20#,TRH200..09S201312-201403

sub58311-26A71

main58311-26A71iKDH20#,TRH200..09S201403-201606

main58311-26B20iKDH20#,TRH200..5D..03S201312-201403

sub58311-26B21

main58311-26B21iGDH20#,KDH20#..5D..03S;TRH200..5D..03S..(4FC,6FC)201403-202107

main58311-26B40iKDH20#,TRH200..SGL201312-201403

sub58311-26B41

main58311-26B41iGDH20#,KDH20#,TRH200..SGL201403-202204

main58311-26B60iKDH20#,TRH200..V1..5D..06S201312-201403

sub58311-26B61

main58311-26B61iGDH20#,KDH20#..V1..5D..06S;TRH200..V1..5D..06S..(4FC,6FC)201403-202107

main58311-26B70iKDH20#,TRH200..V1..5D..06S201312-201403

sub58311-26B71

main58311-26B71iGDH20#,KDH20#..V1..5D..06S;TRH200..V1..5D..06S..(4FC,6FC)201403-202107

main58311-26B80iKDH201,TRH200..V2..06S201312-201403

sub58311-26B81

main58311-26B81iGDH201,TRH200..V2..HRF..6FC201403-202312

main58311-26B90iKDH201,TRH200..V2..06S201312-201403

sub58311-26B91

main58311-26B91iTRH200..V2..5F201403-202312

main58311-26D90iKDH20#..V1..SP201312-201403

sub58311-26D91

main58311-26D91iGDH20#,KDH20#..V1..SP201403-202204

main58311-26E00iKDH201..V2..03S201312-201403

sub58311-26E01

main58311-26E01iGDH201,KDH201..V2..03S201403-202204

main58311-26E10iKDH20#..5D..03S..4FC201312-201403

sub58311-26E11

main58311-26E10iKDH20#..5D..03S..4FC201312-201403

sub58311-26E11

main58311-26E11iKDH20#..5D..03S..4FC201403-201711

main58311-26E11iGDH20#,KDH20#..5D..03S..(4FC,6FC)201403-202204

main58311-26E20iKDH20#,TRH200..09S201312-201403

sub58311-26E21

main58311-26E21iKDH20#,TRH200..09S201403-201606

main58311-26E30iKDH20#,TRH200..IV5201312-201403

sub58311-26E31

main58311-26E31iKDH20#,TRH200..IV5201403-201606

main58311-26E40iTRH200..V1..SP201312-201403

sub58311-26E41

main58311-26E41iTRH200..SP..5F201403-202204

sub58311-26D91

main58311-26E50iKDH201,TRH200..V2..03S201312-201403

sub58311-26E51

main58311-26E51iGDH201,KDH201,TRH200..V2..03S201403-202204

sub58311-26E01

main58311-26F20iKDH20#,TRH200..V1..4D..03S..CBU201312-201403

sub58311-26F21

main58311-26F21iGDH20#,TRH200..4D..SG..03S..6FC..CBU201501-202312

main58311-26F21iKDH20#,TRH200..V1..4D..03S..CBU201403-201501

main58311-26F70iKDH20#,TRH200..5D..03S201312-201403

sub58311-26F71

main58311-26F71iTRH200..5D..03S..6FC;GDH20#,KDH20#..5D..03S201501-202107

main58311-26F71iKDH20#,TRH200..5D..03S201403-201501

main58311-26F90iKDH20#,TRH200..SGL201312-201403

sub58311-26F91

main58311-26F91iGDH20#,KDH20#,TRH200..SGL201403

main58311-26G30iGDH206,KDH20#,TRH200..IV5201606-202107

main58311-26G40iGDH206,KDH20#,TRH200..IV5201606-202107

main58311-26G40iGDH206,KDH20#,TRH200..IV5201606-202107

main58311-26G50iKDH20#,TRH200..09S201606-201801

main58311-26G60iKDH20#,TRH200..09S201606-201801

main58311-26J20iGDH20#,TRH200..09S..6FC201801-202107

main58311-26J30iGDH20#,TRH200..09S..6FC201801-202107

main58311-V3020iGDH20#,TRH200..SGL202204

main58311-V3030iGDH20#,TRH200..V1..SP..6FC202204-202401

main58311-V3030iGDH20#,TRH200..V1..SP..6FC202401

main58311-V3040iGDH201,TRH200..V2..03S202204

main58311-V3070iGDH20#..5D..03S202401

main58311-V3070iGDH20#..5D..03S202204-202401

58335ASEAL, REAR FLOOR SIDE SERVICE HOLE COVER

main58335-26030iTRH200..5F;GDH201,223..IV5201312-202312

58367ABRACKET, REAR FLOOR BALANCER

main58367-26010iGDH20#,KDH20#..V1..SP;TRH200..V1..SP..(4FC,6FC)201312-202012

main58367-26010iTRH200..SP..5F201312-202107

58460CSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33010iKDH20#..V1..03S..CBU;GDH20#,TRH200..V1..SP..6FC;TRH200..V1..4D..03S..4FC..CBU;GDH20#,TRH200..5D..03S..(4FC,6FC)201312-202012

main58460-33010iKDH20#..V1..03S..CBU;GDH20#,TRH200..V1..SP..6FC;TRH200..V1..4D..03S..4FC..CBU;GDH20#,TRH200..5D..03S..(4FC,6FC)201312

main58460-33010iGDH20#,KDH20#..5D..03S..(4FC,6FC)201312

main58460-33010iTRH200..(06S,09S)..5F201312-202312

58474COVER, INSPECTION HOLE

main58474-26010iTRH200..5F;GDH201,223..IV5201312-202312

5851

5854

58587BPLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 RH

main58587-26060iTRH224201609-201701

main58587-26060iGDH201,223..IV5;TRH200..V1..06S..5F201312-202312

main58587-26060iTRH224201609

main58587-26060iTRH224201610

main58587-26060iTRH224201610

main58587-26060iTRH224,229201712

58587CPLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 LH

main58587-26080iTRH224201610

main58587-26080iTRH224201609-201701

main58587-26080iGDH223..IV5;TRH200..V1..06S..5F201312-202312

main58587-26080iTRH224201609

main58587-26080iTRH224201610

main58587-26080iTRH224,229201712

58587DPLATE, NO.3 SEAT LEG SPACE POCKET, NO.1

main58587-26010iTRH224..6FC..CBU201312

main58587-26010iTRH214..GL201404-201712

main58587-26010iGDH201,223..IV5;TRH200..(06S,09S)..5F201312-202312

main58587-26010iTRH214..4D..GL201503

main58587-26010iTRH224201610

main58587-26010iTRH224201610

main58587-26010iTRH224,229201712

58588APLATE, NO.3 SEAT LEG SPACE POCKET, NO.2

main58588-26010iGDH20#,KDH20#,TRH200..SGL201312-202107

58597CPLATE, SEAT TRACK SET

main58597-26030iTRH200..(05S,09S)..(4FC,6FC);GDH20#,211,KDH20#,211,TRH211,216..05S,09S201312-202107

main58597-26060iKDH201..V2;TRH200..V2..HRF..4FC;GDH201,TRH200..V2..SRF..(4FC,6FC)201312-202312

main58597-26070iGDH206,KDH20#,TRH200..IV5201312-202107

58666EPLATE, REAR FLOOR, CENTER LOWER NO.2 LH

main58666-26010iTRH224201609

main58666-26010iTRH200..5F;GDH201..IV5201312-202312

58759ACOVER, FUEL TANK INSPECTION HOLE

main58759-26010iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201.201312-202312

9015950322

main90159-50322

9018905055

main90189-05055

9155380612

main91553-80612

9155380818

main91553-80818

9155381230

main91553-81230

91673A0820

main91673-A0820

52 parts on this diagram · 17 diagrams in section
