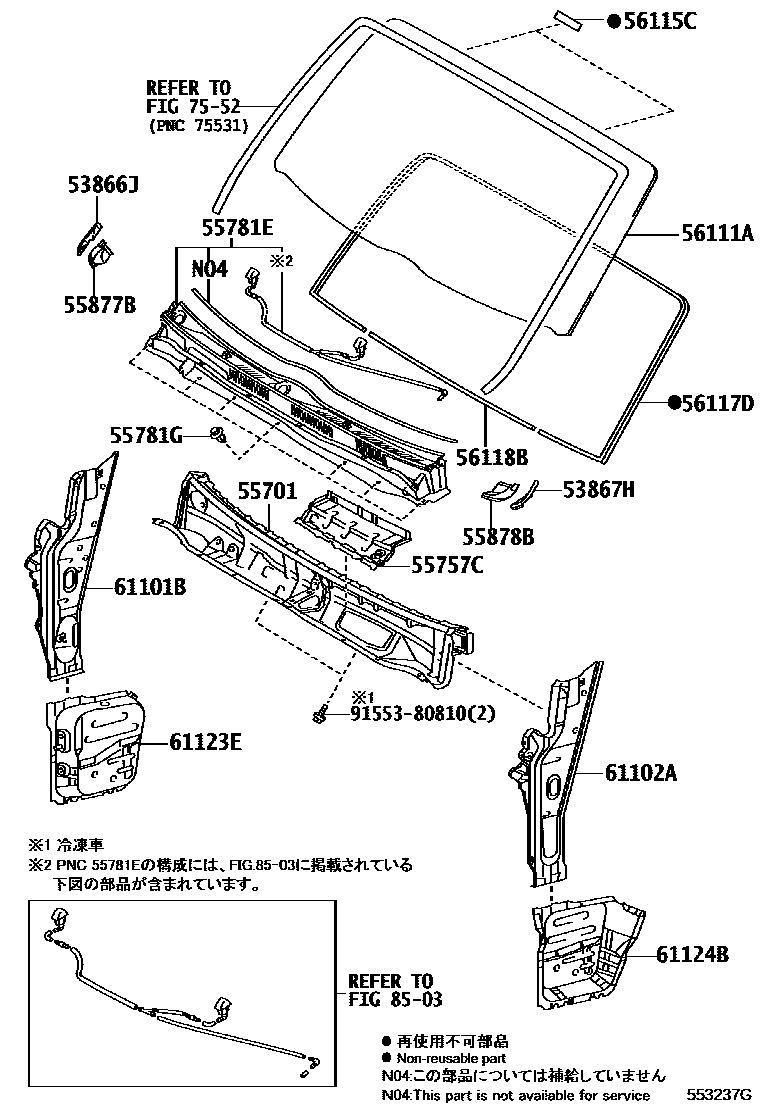

COWL PANEL & WINDSHIELD GLASS

0001 1���� ���������������� 0002 1����������������

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-26011iTRH200..5F;GDH201,223..IV5201312-202107

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-26011iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201.201312

55701PANEL SUB-ASSY, COWL

main55700-26440iTRH200..5F;GDH201..IV5201312-202107

main55700-26470iGDH223..IV5201312-202107

main55700-V3010iGDH206..IV5;GDH201..SRF..5D;GDH206..05S,06S,09S;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;GDH20#,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6202204

main55700-V3020iTRH223,228;GDH211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7202204

55757CPLATE, HEATER AIR DUCT SUB

main55757-26040iKDH20#;GDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;GDH206..05S,06S,09S;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;GDH201201312

main55757-26060iKDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7201312

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-26130supersedes 55708-26120iTRH219..5D201712

main55708-26090supersedes 55708-26080iTRH200..5F;GDH201..IV5201312-202107

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-06168×6iKDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7201312

55877BCOVER, COWL VENT, RH

main55877-26030iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main55877-26040iGDH223..IV5201312-202107

55878BCOVER, COWL VENT, LH

main55878-26030iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main55878-26040iGDH223..IV5201312-202107

56111AGLASS, WINDSHIELD

main56101-26022iKDH211,22#,TRH21#,22#201312-201712

main56101-26231iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201904-202312

main56101-26241iTRH214,219..4D;GDH211,22#,TRH211,216,22#..CBU201904-202507

main56101-26290supersedes 56101-26230iGDH206;GDH201,TRH200..SG;GDH201,TRH200..V1..SP201712-201903

main56101-26291supersedes 56101-26231iGDH201,TRH200..V2..03S201904-202005

main56101-26300supersedes 56101-26240iTRH214,219..5D;GDH223,TRH221,223,226,228..02S201712-201903

main56101-26301iGDH221,226,TRH221,226..02S201904-202204

main56101-26050supersedes 56101-26011iKDH20#,TRH200201312-201712

main56101-26060iKDH211,22#,TRH21#,22#..CBU,IV5,IV6201312-201712

main56101-26530iGDH201..CBU;GDH206,TRH200..6FC202204-202401

main56101-26540iGDH223,TRH214,219,223,224,228,229202005-202108

main56101-26550iTRH200..5F;GDH201..IV5202005-202107

main56101-V3010iGDH201..CBU;GDH206,TRH200..6FC202204-202401

main56101-V3020iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU202204-202312

main56101-V3030iGDH201..CBU;GDH206,TRH200..6FC202204-202401

main56101-V3040iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU202204-202312

main56101-V3050iGDH211,221,226,TRH211,216,221,226202204-202401

main56101-V3070iGDH211,221,226,TRH211,216,221,226..CBU,IV6202204-202401

main56101-V3080supersedes 56101-26241iTRH221,226..IV7202204-202401

56115CSTOPPER, WINDSHIELD GLASS

main56115-26060×2supersedes 56115-26060iTRH200..5F;GDH201,223..IV5201312-202107

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-26060iKDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7201312

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-26020iGDH223..IV5201312-202107

61101BPANEL SUB-ASSY, COWL SIDE, RH

main61101-26040iTRH200..5F;GDH201,223..IV5201312-202107

61102APANEL SUB-ASSY, COWL SIDE, LH

main61102-26030iTRH200..5F;GDH201,223..IV5201312-202107

61123EPANEL, COWL SIDE, LOWER RH

main61123-26020iTRH200..5F;GDH201,223..IV5201312-202107

61124BPANEL, COWL SIDE, LWR LH

main61124-26010iTRH200..5F;GDH201,223..IV5201312-202107

7552

8503

9155380810

main91553-80810

19 parts on this diagram · 2 diagrams in section
