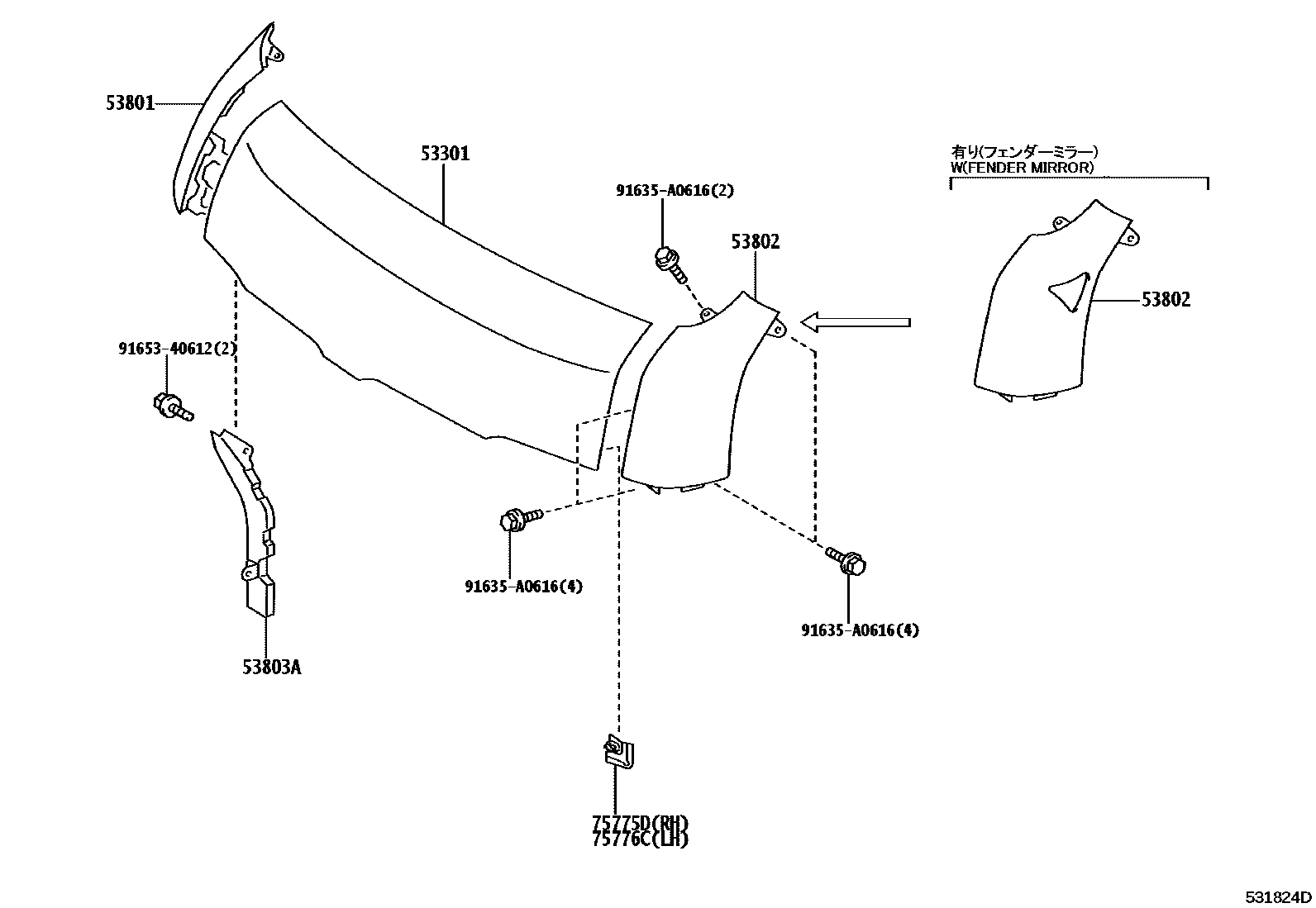

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-26080iKDH20#;GDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;GDH206..05S,06S,09S;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;GDH201201312

main53301-26090iGDH223..IV5201312-202107

53801FENDER SUB-ASSY, FRONT RH

main53801-26011iTRH200..5F;GDH201,223..IV5201312-202107

53802FENDER SUB-ASSY, FRONT LH

main53802-26031supersedes 53802-26031iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

53803ABRACKET SUB-ASSY, FRONT SIDE PANEL, RH

main53803-26011iTRH200..5F;GDH201,223..IV5201312-202107

75775DCOVER, HOOD FRONT MOULDING END, RH

main75775-26010iTRH200..5F;GDH201,223..IV5201312-202107

75776CCOVER, HOOD FRONT MOULDING END, LH

main75776-26010iTRH200..5F;GDH201,223..IV5201312-202107

91635A0616

main91635-A0616

9165340612

main91653-40612

8 parts on this diagram · 1 diagram in section
