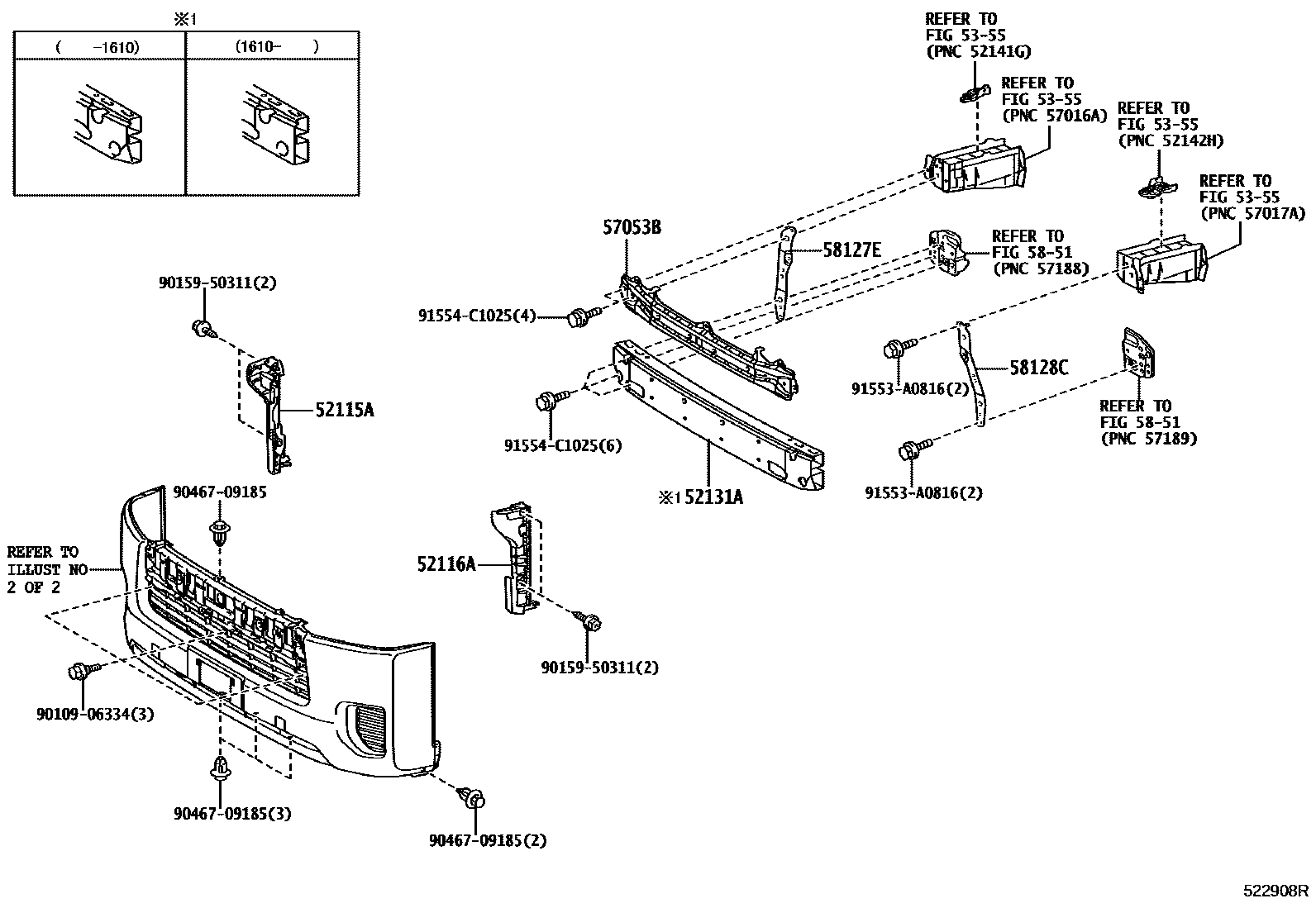

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-26180supersedes 52115-26170iTRH219..5D201712-202002

main52115-26220supersedes 52115-26210iTRH219..5D202002

main52115-26160supersedes 52115-26150iKDH20#,211,22#,TRH200,21#,22#201312-201506

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-26180supersedes 52116-26170iTRH219..5D201712-202002

main52116-26220supersedes 52116-26210iTRH219..5D202002

main52116-26160supersedes 52116-26150iKDH20#,211,22#,TRH200,21#,22#201312-201506

52131AREINFORCEMENT, FRONT BUMPER

main52131-26020iKDH20#,TRH200201312-201610

main52131-26021iKDH20#;GDH206..IV5;GDH201..SRF..5D;GDH206..05S,06S,09S;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;GDH20#,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D.201610

main52131-26060iKDH211,22#,TRH21#,22#201312-201610

main52131-26061iGDH223..IV5201610-202107

5355

57053BREINFORCE SUB-ASSY, FRONT FLOOR CROSSMEMBER

main57053-26030iKDH20#;GDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;GDH206..05S,06S,09S;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;GDH201201312

main57053-26040iGDH223..IV5201312-202107

58127EREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-26050iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201.201312

58128CREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH

main53036-26010iKDH20#,211,22#,TRH200,21#,22#201312-201701

main53036-26020iTRH200..5F;GDH201,223..IV5201701-202107

5851

9010906334

main90109-06334

9015950311

main90159-50311

9046709185

main90467-09185

91553A0816

main91553-A0816

91554C1025

main91554-C1025

13 parts on this diagram · 4 diagrams in section
