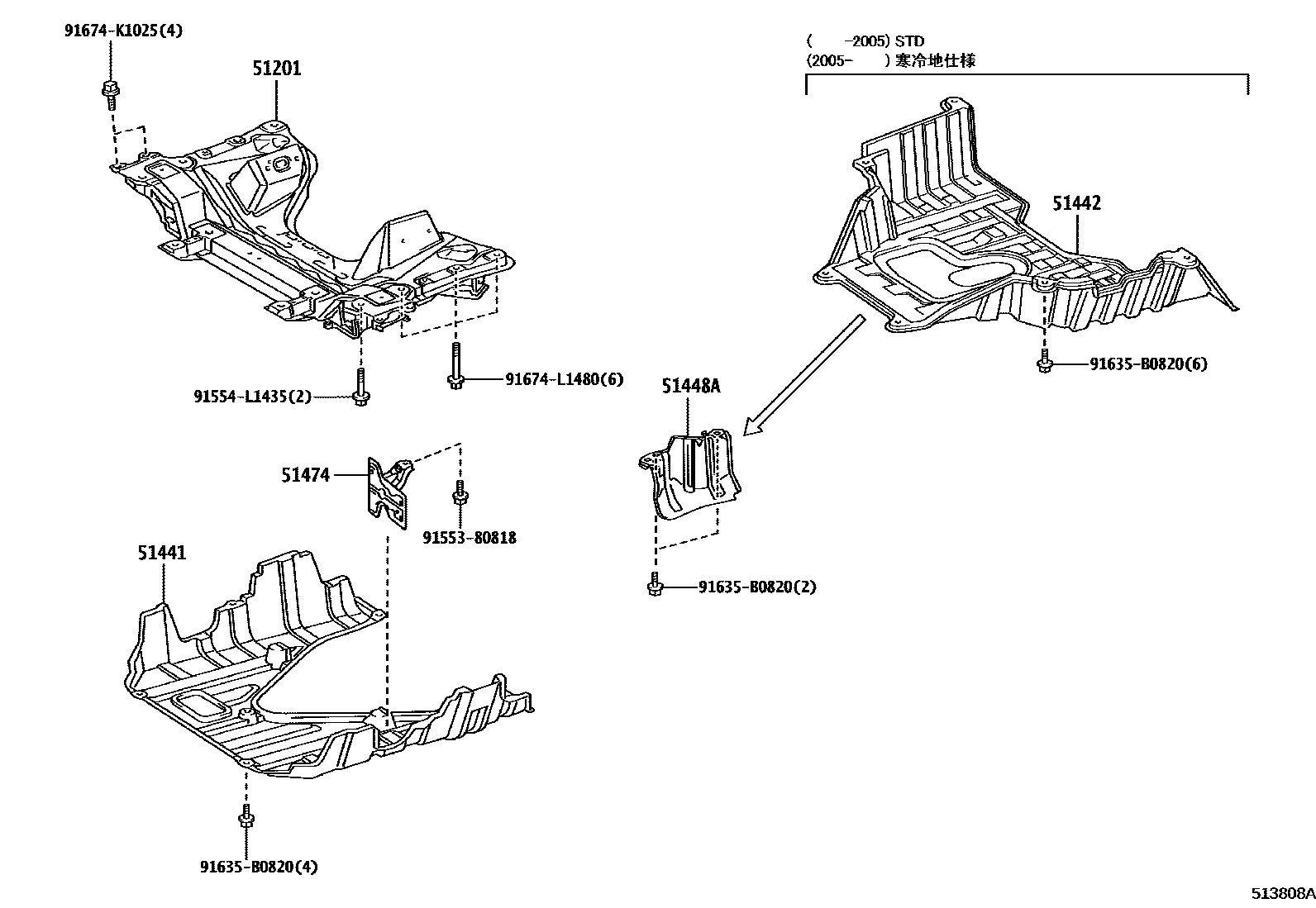

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-26210iKDH201,TRH200201312-201607

sub51201-26320

sub32907-26052

main51201-26250iKDH211,22#,TRH211,214,221,223,224201312-201607

sub51201-26360

sub32907-26052

main51201-26290iKDH206;GDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S201312-202312

main51201-26300iGDH226,TRH216,219,226,228,229201312

main51201-26320iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH201,TRH200..4D..SG..03S..6FC..CBU201607-202312

main51201-26360iKDH223,TRH223;GDH211,221,223,KDH211,221,TRH211,214,221,224..CBU,IV6,IV7201607-202107

51441COVER, ENGINE UNDER, NO.1

main51441-26230iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH201,TRH200..4D..SG..03S..6FC..CBU201312-202312

main51441-26240iKDH223,TRH223,224;GDH211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7201312-202107

main51441-26250iTRH216,219,226,228,229201312

main51441-26260iKDH206;GDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S201312-202312

main51441-26300iGDH226201712

51442COVER, ENGINE UNDER, NO.2

main51406-26160iGDH226201312-202204

main51406-26200iTRH200201312-201406

sub51406-26220

main51406-26210iKDH201201312-201406

sub51406-26230

main51406-26220iTRH200..SP..6FC;TRH200..03S..4FC;TRH200..5D..03S..6FC;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;TRH200..SRF..(05S,06S,09S)..(4FC,6FC)201407-202312

main51406-26230iKDH201201407-201701

sub51406-26250

main51406-26250iGDH201..SP;GDH201..SRF..5D;GDH201..V1..HRF..5D;GDH201..SRF..4D..(06S,09S)202005-202312

main51406-26250iGDH201,KDH201201701-202005

main51406-V3010iTRH216,219,226,228,229202204

main51407-V3010iTRH211,214,221,223,224202204

main51442-26140iKDH206;GDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S201312-202312

main51442-26150iKDH211,22#201312-201407

main51442-26160iGDH226202005

main51442-26180iTRH211,214,221,223,224201312-201407

main51442-26210iGDH211,221,223,KDH211,22#201407-202005

main51442-26210iGDH223..IV5202005-202107

main51442-26220iTRH211,214,221,223,224201407-202204

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-26030iKDH211,22#,TRH211,214,221,223,224201312-201407

sub51408-26070

main51448-26040iTRH216,219,226,228,229201312-201407

sub51408-26080

main51448-26080iKDH211,22#,TRH211,214,221,223,224201407-201711

sub51448-26200

main51448-26090iGDH226,TRH216,219,226,228,229201407

main51448-26140iGDH201,223..IV5202005-202312

main51448-26200iGDH211,221,223..CBU,IV6202005-202107

main51448-26200iGDH211,221,223201712-202005

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51074-26010iGDH201,223..IV5201312-202312

9155380818

main91553-80818

91554L1435

main91554-L1435

91635B0820

main91635-B0820

91674K1025

main91674-K1025

91674L1480

main91674-L1480

10 parts on this diagram · 6 diagrams in section
