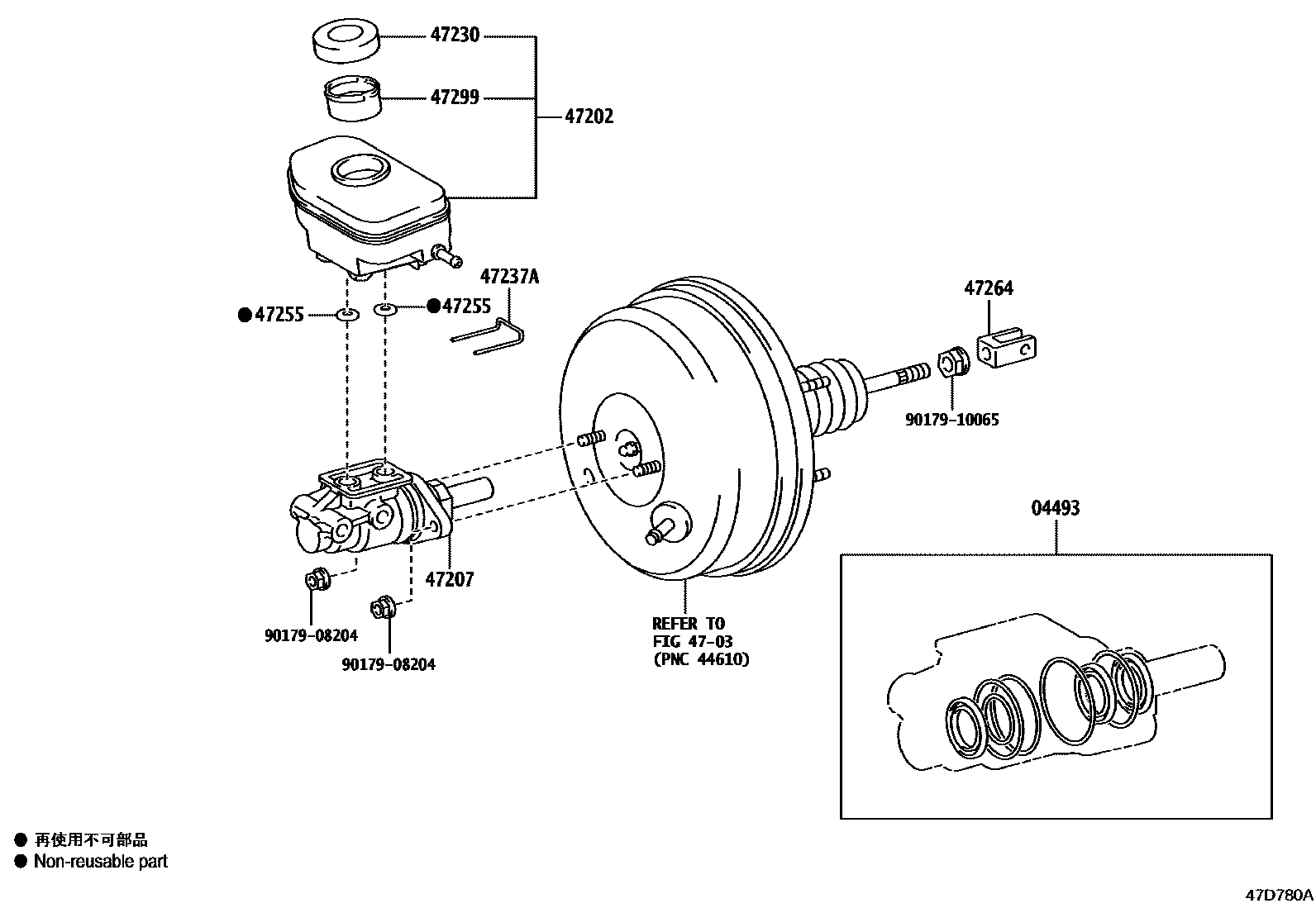

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-26220iKDH20#,211,22#,TRH200,21#,22#201312-201501

4703

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-26281iKDH20#,TRH200..5F201312-201501

main47220-26291iKDH20#,211,22#,TRH200,21#,22#..4FC201312-201501

main47220-26300iKDH20#,TRH200..5F201501-202107

main47220-26310iGDH201,223..IV5201501-202312

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-26010iKDH20#,211,22#,TRH200,21#,22#201312-201501

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33071iKDH20#,211,22#,TRH200,21#,22#201312-201501

sub47230-33072

main47230-58021iTRH200..5F;GDH201,223..IV5201501-202312

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-20020iKDH20#,211,22#,TRH200,21#,22#201312-201501

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-52010iKDH20#,211,22#,TRH200,21#,22#201312-201501

main90015-AT001iTRH200..5F;GDH201,223..IV5201501-202312

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-60020iTRH200..5F;GDH201,223..IV5201312-202312

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52110iTRH200..5F;GDH201,223..IV5201312-202312

9017908204

main90179-08204

9017910065

main90179-10065

11 parts on this diagram · 2 diagrams in section
