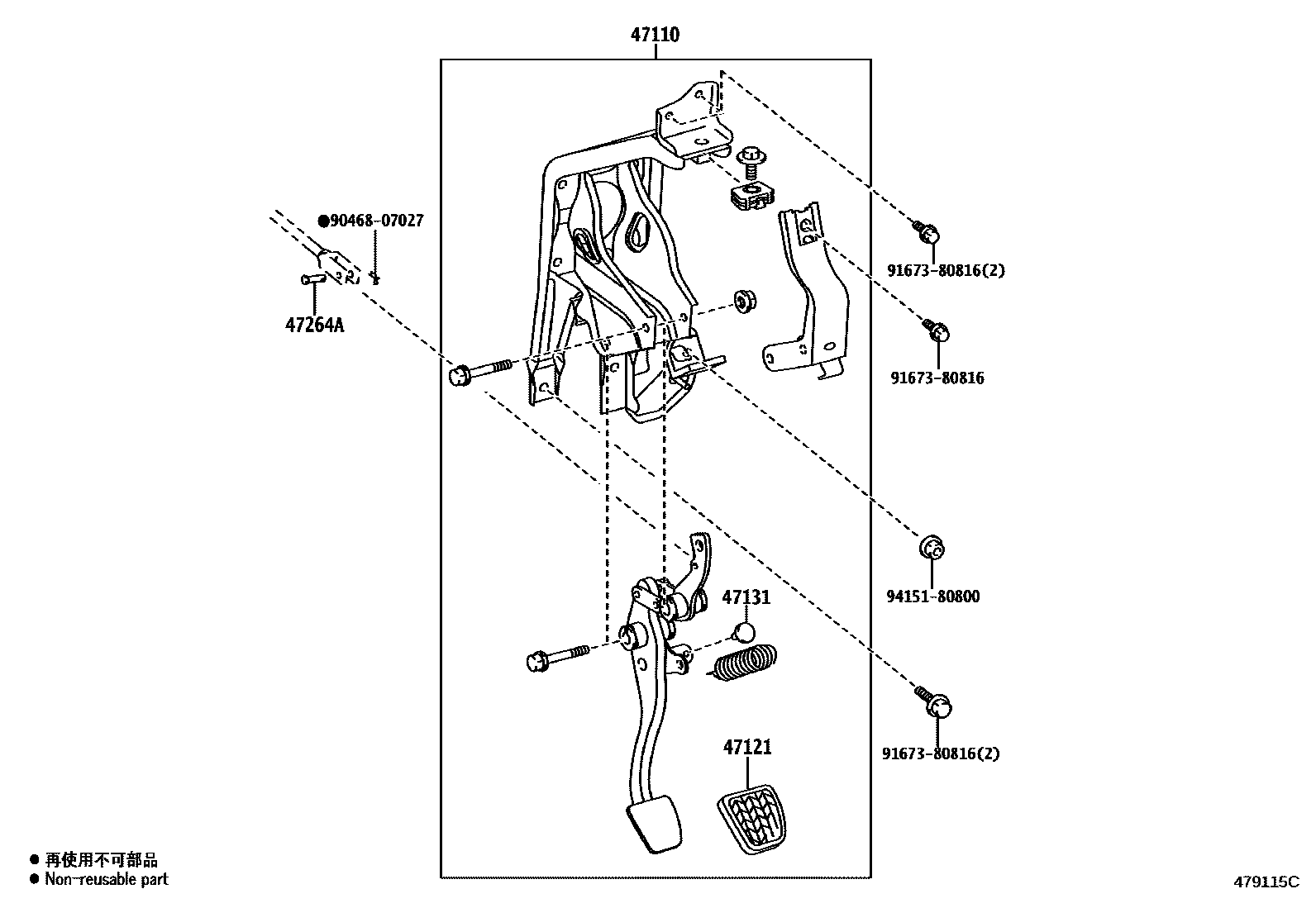

BRAKE PEDAL & BRACKET

47110SUPPORT ASSY, BRAKE PEDAL

main47110-26021iKDH20#,211,22#,TRH200,21#,22#201312-201501

main47110-26040iGDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#201501-201907

sub47110-V3010

main47110-V3010iTRH200..5F;GDH201,223..IV5201908-202507

47121PAD, BRAKE PEDAL

main31321-52010iTRH200..5F;KDH201..SRF;KDH206,211,22#;KDH201..V2..HRF;KDH201..V1..HRF..4FC201312-201504

main31321-52020iTRH200..5F;GDH201,223..IV5201505-202312

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iTRH200..5F;KDH201..SRF;KDH206,211,22#;KDH201..V2..HRF;KDH201..V1..HRF..4FC201312-202312

47264APIN(FOR PUSH ROD)

main90240-06027iTRH200..5F;GDH201,223..IV5201312-202312

9046807027

main90468-07027

9167380816

main91673-80816

9415180800

main94151-80800

7 parts on this diagram · 1 diagram in section
