STEERING WHEEL

0001 14������� 0002 14�������,��(������� ���� OR �

45100WHEEL ASSY, STEERING

main45100-26350-B0iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201.201312-202507

main45100-26370-B0iGDH20#,211,TRH200,211,216..SGL201808-201908

main45100-26370-B1iGDH20#,211,TRH200,211,216..SGL201808-201908

main45100-26370-B2iGDH20#..SGL202410-202507

45107WIRE SUB-ASSY, HORN BUTTON

main45107-22010iTRH200..V1..SP..(5F,6FC);TRH200,21#,22#..SG..(03S,05S,06S,09S,10S,14S)..(5F,6FC)201312-201712

45130BUTTON ASSY, HORN

main45130-26370-B0iTRH200..V1..SP..(5F,6FC);TRH200,214,219,221,223,226,228..SG..(5F,6FC)..DX..(CBU,IV5)201312-201712

DK.GRAY,TRIM1#

main45130-26380-B0iGDH201..IV5201312-202107

DK.GRAY,TRIM1#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-60040-B1iTRH200..5F;GDH201,223..IV5201312-202107

DK.GRAY,TRIM1#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-60020-B1iTRH200..5F;GDH201,223..IV5201312-202107

DK.GRAY,TRIM1#

45201PNUT, STEERING WHEEL SET

main90179-12071iTRH200..5F;GDH201,223..IV5201312-202107

84258COVER, STEERING PAD, RH

main84258-60020iTRH200..V1..SP..(5F,6FC);TRH200,214,219,221,223,226,228..SG..(5F,6FC)..DX..(CBU,IV5)201312-201712

84259COVER, STEERING PAD, LH

main84259-60020iTRH200..V1..SP..(5F,6FC);TRH200,214,219,221,223,226,228..SG..(5F,6FC)..DX..(CBU,IV5)201312-201712

9015950199

main90159-50199

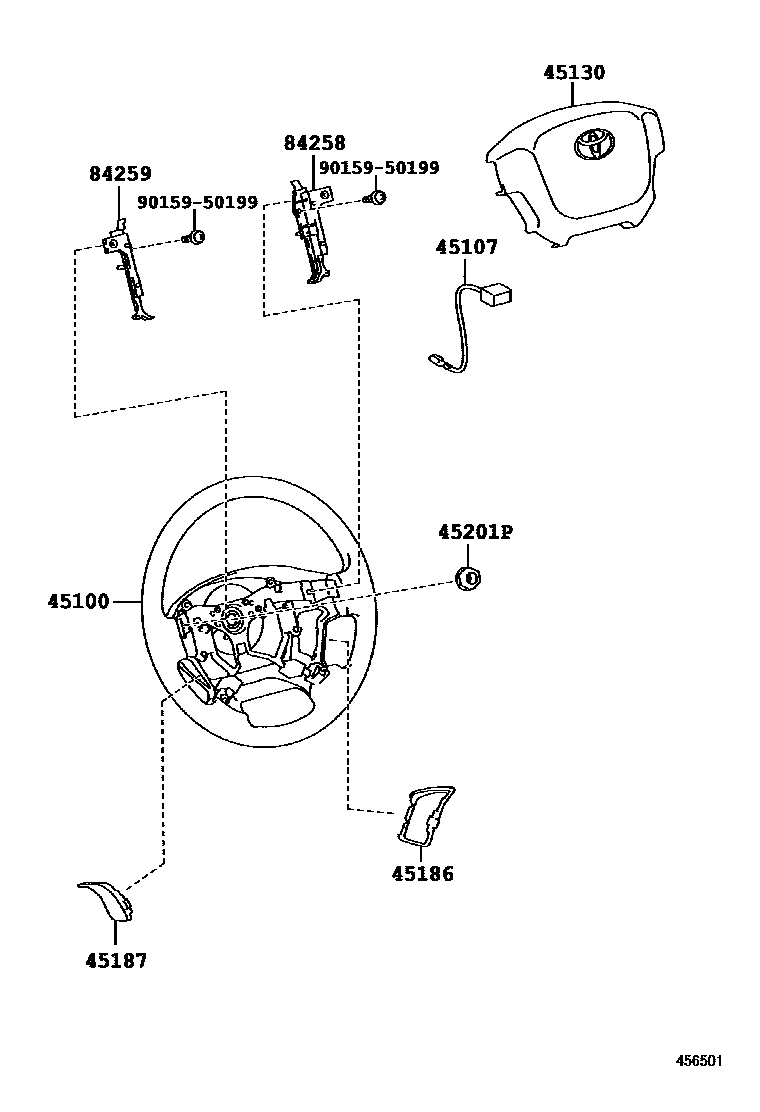

9 parts on this diagram · 2 diagrams in section
