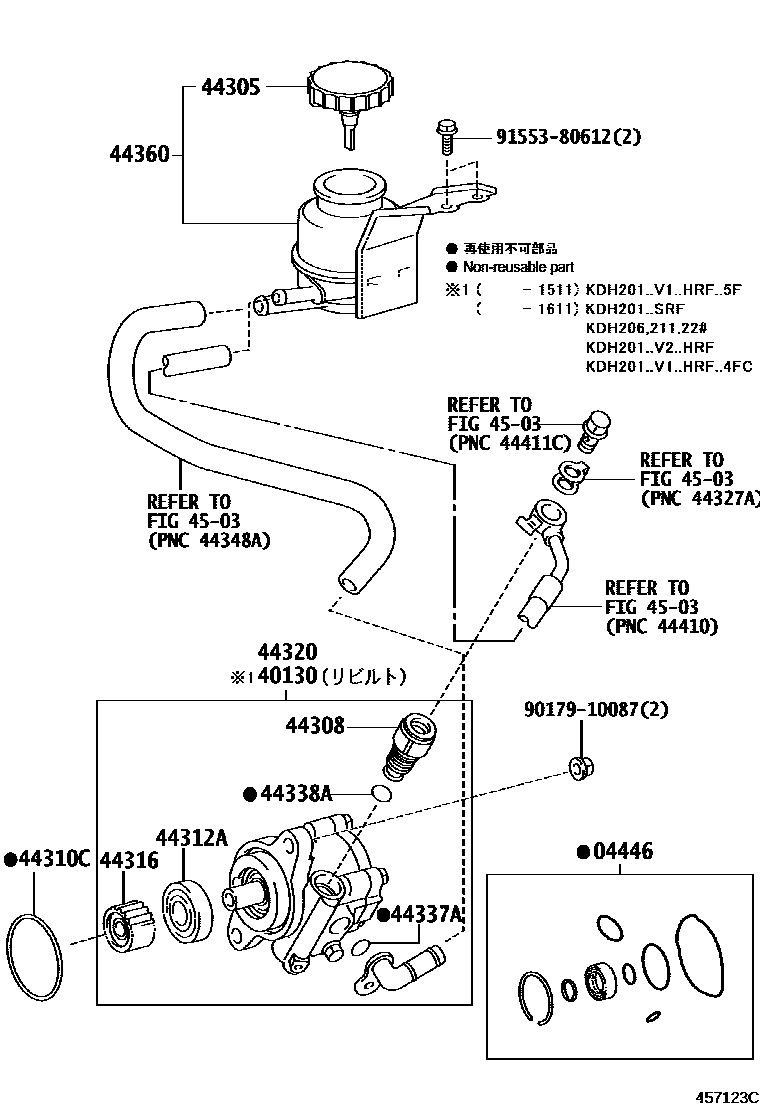

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iTRH200..5F;GDH201,223..IV5¥970201312-202312

main04446-35070iKDH20#,211,22#¥1,280201312-201711

40130PUMP ASSY,VANE REBUILT

main40130-26371iTRH200,21#,22#¥61,800201312-201806

sub44310-26371¥66,100

main40130-26380iKDH20#,211,22#¥47,800201312-201711

sub44310-26380¥51,400

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22061iTRH21#,22#;TRH200..SP..6FC;TRH200..03S..4FC;TRH200..5D..03S..6FC;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;TRH200..SRF..(05S,06S,09S)..(4FC,6FC)¥1,240201312-202312

main44305-26010iGDH201..V2..HRF;GDH201..HRF..4D..CBU;GDH20#..4D..SG..03S..CBU¥1,050201712-202312

main44305-28051iKDH20#,211,22#¥910201312-201711

44308UNION SUB-ASSY, PRESSURE PORT

main44308-26120iGDH201,223..IV5¥1,300201312-202312

main44308-42010iTRH200..V2..HRF..6FC;TRH200..4D..SG..03S..6FC..CBU¥1,990201312-202312

44310PUMP ASSY, VANE

main44310-26440iGDH201,223..IV5¥59,700201712-202312

44310CRING, O(FOR VANE PUMP)

main90301-60002iKDH20#,211,22#¥530201312-201711

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17016iKDH20#,211,22#¥1,240201312-201711

44316GEAR, VANE PUMP

main44316-60030iKDH20#,211,22#¥670201312-201711

44320PUMP ASSY, VANE

main44310-26371iTRH200..5F¥66,100201312-202312

main44310-26380iKDH20#,211,22#¥51,400201312-201711

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iTRH200..5F;GDH201,223..IV5¥140201312-202312

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-18009iTRH200..5F;GDH201,223..IV5¥140201312-202312

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-25060iTRH21#,22#;TRH200..SP..6FC;TRH200..03S..4FC;TRH200..5D..03S..6FC;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;TRH200..SRF..(05S,06S,09S)..(4FC,6FC)¥6,400201312-202312

main44360-26141iKDH211,22#;KDH201..V1..HRF..5F¥8,500201312-201711

main44360-26150iKDH20#¥6,400201701-201711

main44360-26160iGDH201..V2..HRF;GDH201..HRF..4D..CBU;GDH20#..4D..SG..03S..CBU¥6,400201712-202312

4503

9017910087

main90179-10087¥110

9155380612

main91553-80612¥60

15 parts on this diagram · 3 diagrams in section
