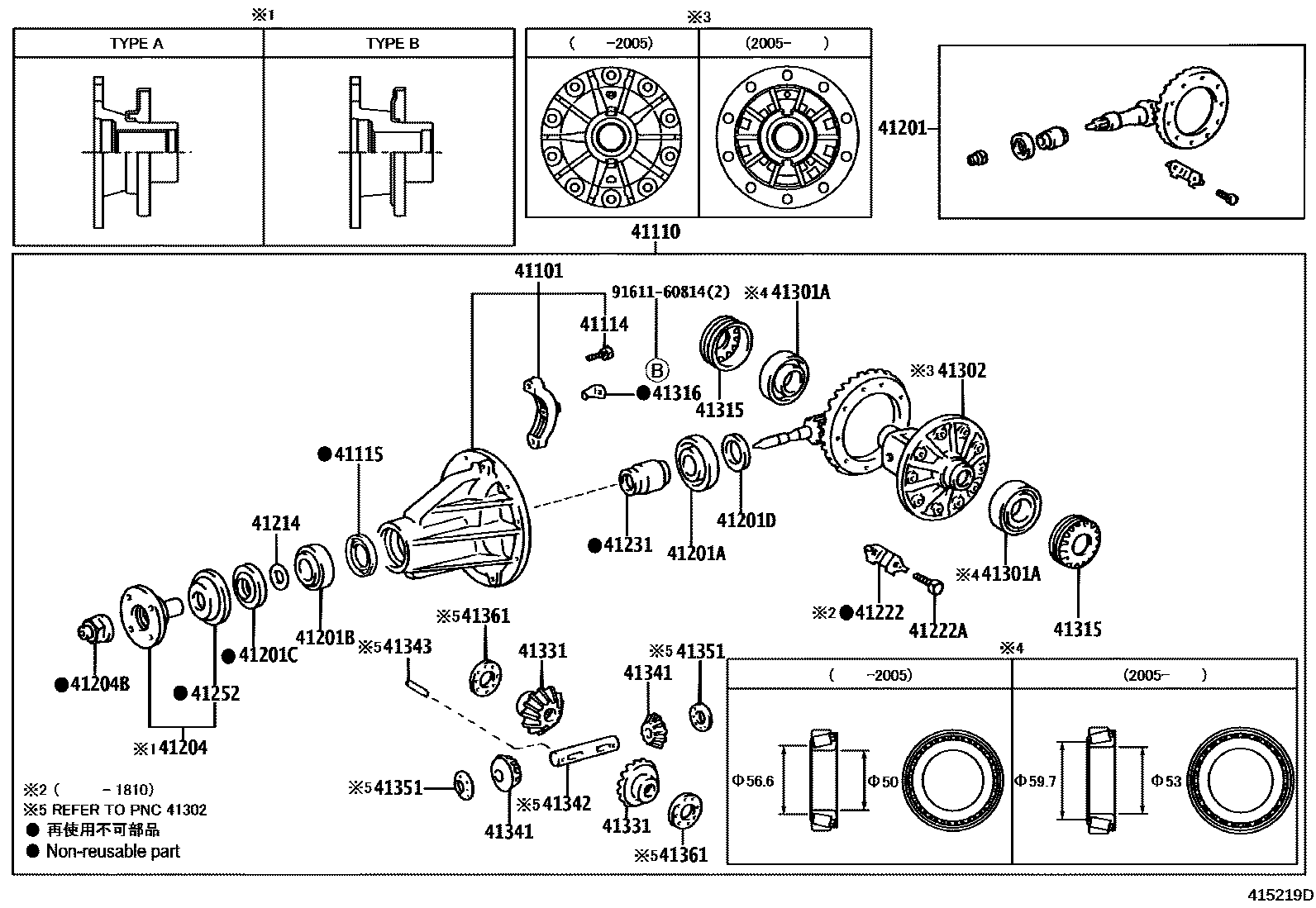

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0004 1 0005 1 0006 1��(LSD) 0007 1 0008 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-35171iTRH200..5F;KDH20#,211,22#,TRH21#,22#..4FC,5F201312-201604

sub41101-35172

main41101-35172iTRH200..5F;GDH201,223..IV5201604-202312

main41101-60161iTRH200..SP..6FC;TRH200..03S..4FC;TRH200..5D..03S..6FC;TRH200..HRF..4FC..CBU;TRH200..SRF..(05S,06S,09S)..(4FC,6FC);TRH200,21#,22#..(COM,V1,WG)..(HRF,SMRF)..6FC201312-202312

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-25450iKDH201..V2..5F201312-201607

sub41110-25451

main41110-25451iKDH201..V2..5F201608-201711

main41110-26431iKDH20#,211,22#..(COM,V1)..4FC201312-201608

sub41110-26432

main41110-26432iGDH20#,211,22#,KDH20#,211,22#..(COM,V1)..(4FC,6FC)201608-202004

sub41110-26A20

main41110-26441iTRH200..V2..5F;TRH21#,22#..4FC201312-201608

sub41110-26442

main41110-26442iTRH200..V2..5F201608-201908

main41110-26621iKDH206..5F;KDH201..V2..4FC201312-201608

sub41110-26622

main41110-26622iKDH206..5F;GDH201,KDH201..V2..(4FC,6FC)201609-202004

sub41110-26A10

main41110-26650iTRH200..V1..(4FC,6FC)201312-201607

sub41110-26651

main41110-26651iTRH200..V1..6FC201608-201912

main41110-26660iTRH21#,22#..6FC;TRH200..V2..(4FC,6FC)201312-201607

sub41110-26661

main41110-26661iTRH21#,22#;TRH200..V2..6FC201608-201908

main41110-26860iTRH200..V2..5F201908-202004

sub41110-26A30

main41110-26870iTRH21#,22#;TRH200..V2..6FC201908-202004

sub41110-26A50

main41110-26880iTRH200..V1..6FC202001-202004

sub41110-26A60

main41110-26A10iGDH201..V2..HRF202005-202312

main41110-26A20iGDH206..IV5;GDH20#..V1..SP;GDH201..V1..5D;GDH206..5D..03S;GDH201..SRF..4D..(06S,09S);GDH206,211,22#..(02S,05S,06S,09S,14S)..(CBU,IV6)202005-202312

main41110-26A30iTRH200..V2..5F202005-202107

main41110-26A40iTRH200..V1..5F202005-202107

main41110-26A50iTRH200..V2..HRF..6FC202005-202312

main41110-26A60iTRH200..IV5;TRH200..V1..SP..6FC;TRH200..5D..03S..6FC;TRH200..V1..(05S,06S,09S)..6FC202005-202312

main41110-35870iKDH201..V1..5F201312-201608

sub41110-35871

main41110-35871iKDH201..V1..5F201609-201711

sub41110-26810

main41110-3D261iTRH200..V1..5F201312-201608

sub41110-3D262

main41110-3D262iTRH200..V1..5F201608-202004

sub41110-26A40

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201.201312-202312

41115RING, DIFFERENTIAL OIL STORAGE

main41115-35010iTRH200..5F;GDH201,223..IV5201312-202312

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-80183iTRH21#,22#..6FC;TRH200..V2..(4FC,6FC)201312-201608

main41201-80300iTRH200..V1..(4FC,6FC)201312-201608

main41201-80557iKDH201..V2..5F201312-201608

main41201-80564iKDH201..V1..5F201312-201608

main41201-80723iKDH206..5F;KDH201..V2..4FC201312-201608

main41201-80724iKDH20#,211,22#..(COM,V1)..4FC201312-201608

main41201-80732iTRH200..V1..5F201312-201608

main41201-80747iTRH200..V2..5F;TRH21#,22#..4FC201312-201608

main41201-80802iTRH200..V2..5F201608-201908

main41201-80803iTRH200..V1..6FC201608-202001

main41201-80804iTRH21#,22#;TRH200..V2..6FC201608-201908

main41201-80805iKDH201..V2..5F201608-201711

main41201-80814iKDH206..5F;GDH201,KDH201..V2..(4FC,6FC)201608-201810

main41201-80815iGDH20#,211,22#,KDH20#,211,22#..(COM,V1)..(4FC,6FC)201608-201810

main41201-80816iTRH200..V1..5F201608-201810

sub41201-80A05

main41201-80817iKDH201..V1..5F201608-201711

main41201-80A00iTRH200..V2..5F201908-202107

main41201-80A01iTRH200..4D..SG..03S..6FC..CBU202001-202312

main41201-80A02iTRH21#,22#;TRH200..V2..SRF..6FC201908-202312

main41201-80A03iGDH201..V2..HRF201810-202312

main41201-80A04iGDH201,223..IV5201810-202312

main41201-80A05iTRH200..V1..5F201810-202107

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35087iGDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#201312-202005

main90366-35203iTRH200..5F;GDH201,223..IV5202005-202312

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30105iGDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#201312-202005

main90366-30117iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU202005-202312

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-41009iTRH200,21#,221,223,226,228,229..6FC;KDH201,TRH224..(V2,WG)..(5F,6FC)..CBU201312-201609

main90311-41018iGDH201,223..IV5201608-202312

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497iTRH200..5F;GDH201,223..IV5201312-202312

main90201-35498iTRH200..5F;GDH201,223..IV5201312-202312

main90201-35499iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main90201-35500iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main90201-35501iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201.201312-202312

main90201-35502iTRH200..5F;GDH201,223..IV5201312-202312

main90201-35503iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main90201-35504iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201.201312-202312

main90201-35505iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201.201312-202312

main90201-35506iTRH200..5F;GDH201,223..IV5201312-202312

main90201-35507iTRH200..5F;GDH201,223..IV5201312-202312

main90201-35508iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main90201-35509iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201.201312-202312

main90201-35510iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201.201312-202312

main90201-35511iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main90201-35512iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main90201-35513iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main90201-35514iTRH200..5F;GDH201,223..IV5201312-202312

main90201-35515iTRH200..5F;GDH201,223..IV5201312-202312

main90201-35516iTRH200..5F;GDH201,223..IV5201312-202312

main90201-35517iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;KDH20#,223,TRH223,224,228;GDH201.201312-202312

main90201-35518iTRH200..5F;GDH201,223..IV5201312-202312

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35082iTRH200,21#,221,223,226,228,229..6FC;KDH201,TRH224..(V2,WG)..(5F,6FC)..CBU201312-201609

main41204-35083iGDH201,223..IV5201608-202312

41204BNUT (FOR REAR DRIVE PINION)

main90177-22003iTRH200..5F;GDH201,223..IV5201312-202312

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26011iTRH200..5F;GDH201,223..IV5201312-202312

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020iTRH200..5F;TRH200,224..(V2,WG)..6FC..CBU;GDH20#,211,22#,TRH21#,221,223,226,228,229..6FC201312-202001

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iTRH200..5F;TRH200,224..(V2,WG)..6FC..CBU;GDH20#,211,22#,TRH21#,221,223,226,228,229..6FC201312-202001

main90105-11063iTRH200..5F;GDH201,223..IV5201810-202312

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iTRH200..5F;GDH201,223..IV5201312-202312

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-35041iTRH200,21#,221,223,226,228,229..6FC;KDH201,TRH224..(V2,WG)..(5F,6FC)..CBU201312-201609

main41252-71040iGDH201,223..IV5201608-202312

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-26040iTRH200..4D..SG..03S..6FC..CBU202005-202312

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50007iGDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#201312-202005

main90366-53010iTRH200..5F;GDH201,223..IV5202005-202312

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-35020iKDH201..5F201312-201711

sub41302-26010

main41311-26030iGDH201..HRF..4D..CBU;GDH20#..4D..SG..03S..CBU;GDH201,TRH200..V2..HRF..6FC202005-202312

main41311-60060iKDH206,TRH200;GDH20#,211,22#,KDH201,211,22#,TRH21#,22#..4FC,6FC201312-202001

sub41311-60061

sub90105-11063

main41311-60061iGDH20#,211,22#,TRH200,21#,22#202001-202005

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-35020iTRH200..5F;GDH201,223..IV5201312-202312

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-35010iTRH200..5F;GDH201,223..IV5201312-202312

41331GEAR, REAR DIFFERENTIAL SIDE

main41039-34080iKDH201..5F201312-201711

main41331-35011iKDH206,TRH200;GDH20#,211,22#,KDH201,211,22#,TRH21#,22#..4FC,6FC201312-202005

41341PINION, REAR DIFFERENTIAL

main41341-35020iKDH206,TRH200;GDH20#,211,22#,KDH201,211,22#,TRH21#,22#..4FC,6FC201312-202005

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-26020iTRH200..5F;GDH201,223..IV5202005-202312

main41342-39610iTRH211,216,221,226;TRH200,214,219,223,224,228,229..COM,V2,WG201312-202005

main41342-39610iTRH21#,221,223,226,228,229..6FC;TRH200,224..(V2,WG)..(5F,6FC)..CBU201312-202001

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iGDH201..SRF..5D;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;GDH20#,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..6202005-202312

main90250-06085iTRH211,216,221,226;TRH200,214,219,223,224,228,229..COM,V2,WG201312-202005

main90250-06085iTRH21#,221,223,226,228,229..6FC;TRH200,224..(V2,WG)..(5F,6FC)..CBU201312-202001

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30052iTRH211,216,221,226;TRH200,214,219,223,224,228,229..COM,V2,WG201312-202005

main41351-30052iTRH21#,221,223,226,228,229..6FC;TRH200,224..(V2,WG)..(5F,6FC)..CBU201312-202001

main41351-30060iKDH201..5F201312-201711

main41351-35030iTRH200..5F;GDH201,223..IV5202005-202312

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-34010iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU202005-202312

main41361-34020iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU202005-202312

main41361-34030iGDH201..SRF..5D;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;GDH20#,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..6202005-202312

main41361-34040iTRH200..5F;GDH201,223..IV5202005-202312

main41361-34050iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU202005-202312

main41361-34060iGDH201..SRF..5D;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;GDH20#,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..6202005-202312

main41361-34070iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU202005-202312

main41361-34080iGDH201..SRF..5D;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;GDH20#,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..6202005-202312

main41361-34090iGDH201..SRF..5D;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;GDH20#,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..6202005-202312

main41361-35310iKDH201..5F201312-201711

main41361-35320iKDH201..5F201312-201711

main41361-35330iKDH201..5F201312-201711

main41361-35340iKDH201..5F201312-201711

main41361-35350iKDH201..5F201312-201711

main41361-40021iTRH211,216,221,226;TRH200,214,219,223,224,228,229..COM,V2,WG201312-202005

main41361-40021iTRH200,224..(V2,WG)..4FC..CBU;TRH21#,221,223,226,228,229..4FC;TRH200,224..(V1,WG)..(02S,03S,05S,06S,09S)..(4FC,6FC)201312-202001

main41362-40021iTRH200..V1..6FC201312-202005

main41362-40021iTRH21#,221,223,226,228,229..6FC;TRH200,224..(V2,WG)..(5F,6FC)..CBU201312-202001

main41363-40021iTRH200..V1..6FC201312-202005

main41363-40021iTRH200,224..(V2,WG)..4FC..CBU;TRH21#,221,223,226,228,229..4FC;TRH200,224..(V1,WG)..(02S,03S,05S,06S,09S)..(4FC,6FC)201312-202001

9161160814

main91611-60814

28 parts on this diagram · 6 diagrams in section
