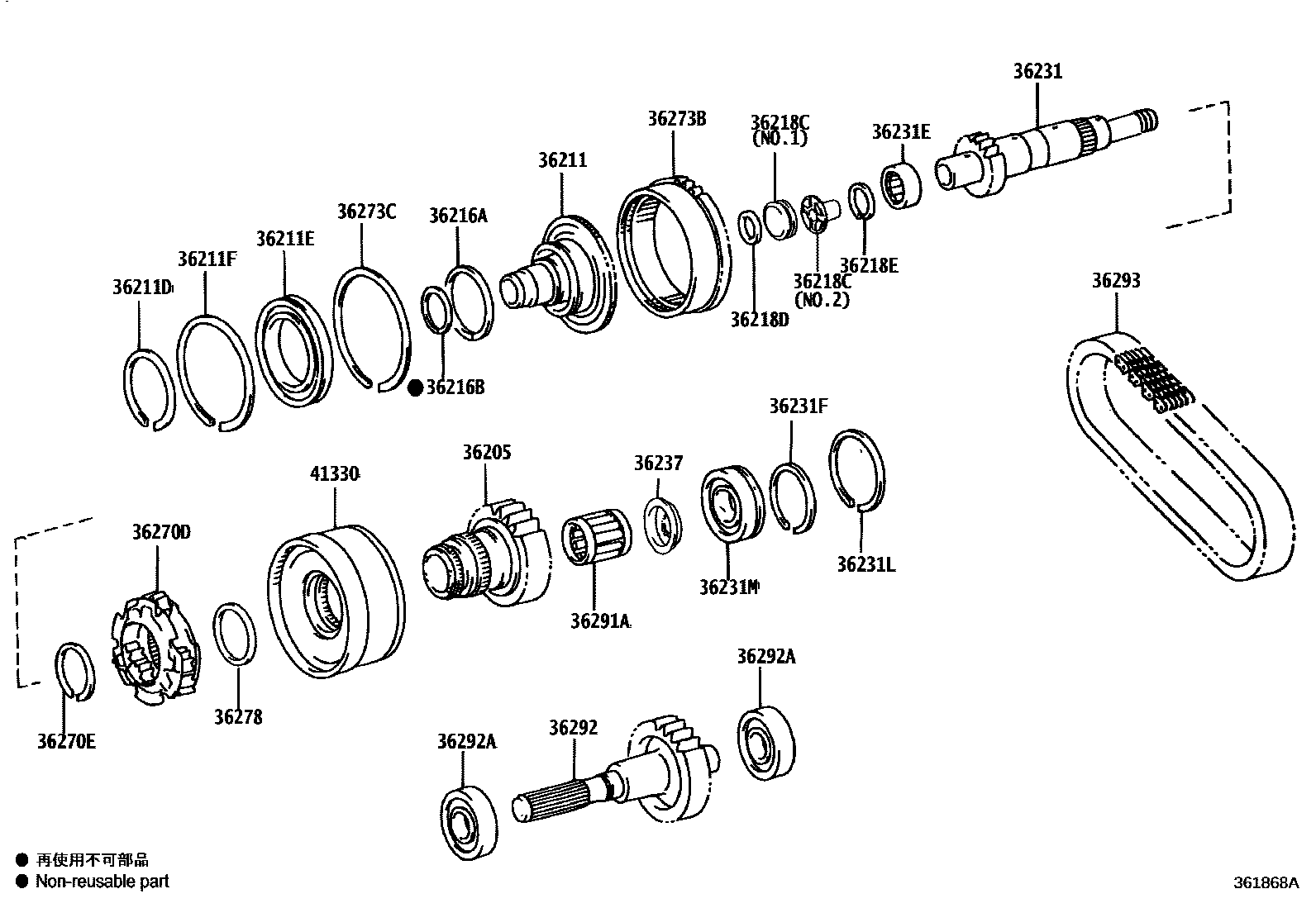

TRANSFER GEAR
36205SPROCKET SUB-ASSY, TRANSFER DRIVE
36211SHAFT, TRANSFER INPUT
36211DRING, HOLE SNAP (FOR TRANSFER INPUT SHAFT)
main90520-72001iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312
main90520-72002iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312
36211EBEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT)
36211FRING, SHAFT SNAP (FOR TRANSFER INPUT SHAFT)
36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1
36216BRING, TRANSFER INPUT SHAFT SEAL, NO.2
main36216-28020iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312
36218CPLUG, TRANSFER INPUT SHAFT
36218DRING, O (FOR TRANSFER INPUT SHAFT PLUG)
36218ERING, HOLE SNAP (FOR TRANSFER INPUT SHAFT PLUG)
36231SHAFT, TRANSFER OUTPUT, REAR
main36231-28050iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201512
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
main90364-31007iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
36231LRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT REAR)
main90520-29018iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312
main90520-29020iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312
main90520-29021iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312
36231MBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
main90363-32006iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312
36237HUB, TRANSFER CLUTCH
36270DGEAR ASSY, MANUAL TRANSFER PLANETARY
36270ERING, SHAFT SNAP (FOR MANUAL TRANSFER PLANETARY GEAR)
main90520-48002iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312
main90520-48005iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312
36273BGEAR, MANUAL TRANSFER PLANETARY RING
36273CRING, HOLE SNAP (FOR MANUAL TRANSFER PLANETARY RING GEAR)
36278WASHER, MANUAL TRANSFER PLANETARY CARRIER
main36278-28010iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312
main36278-28060iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
main90364-40001iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312
36292SPROCKET, TRANSFER DRIVEN
36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)
main90363-28004iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312
main90363-30064iGDH206..SP;GDH206..IV5;GDH206..5D..03S;GDH206..05S,06S,09S;GDH226,KDH206,TRH216,219,226,228,229201312
36293CHAIN, TRANSFER FRONT DRIVE
41330COUPLING ASSY, CENTER DIFFERENTIAL CONTROL
26 parts on this diagram · 1 diagram in section
