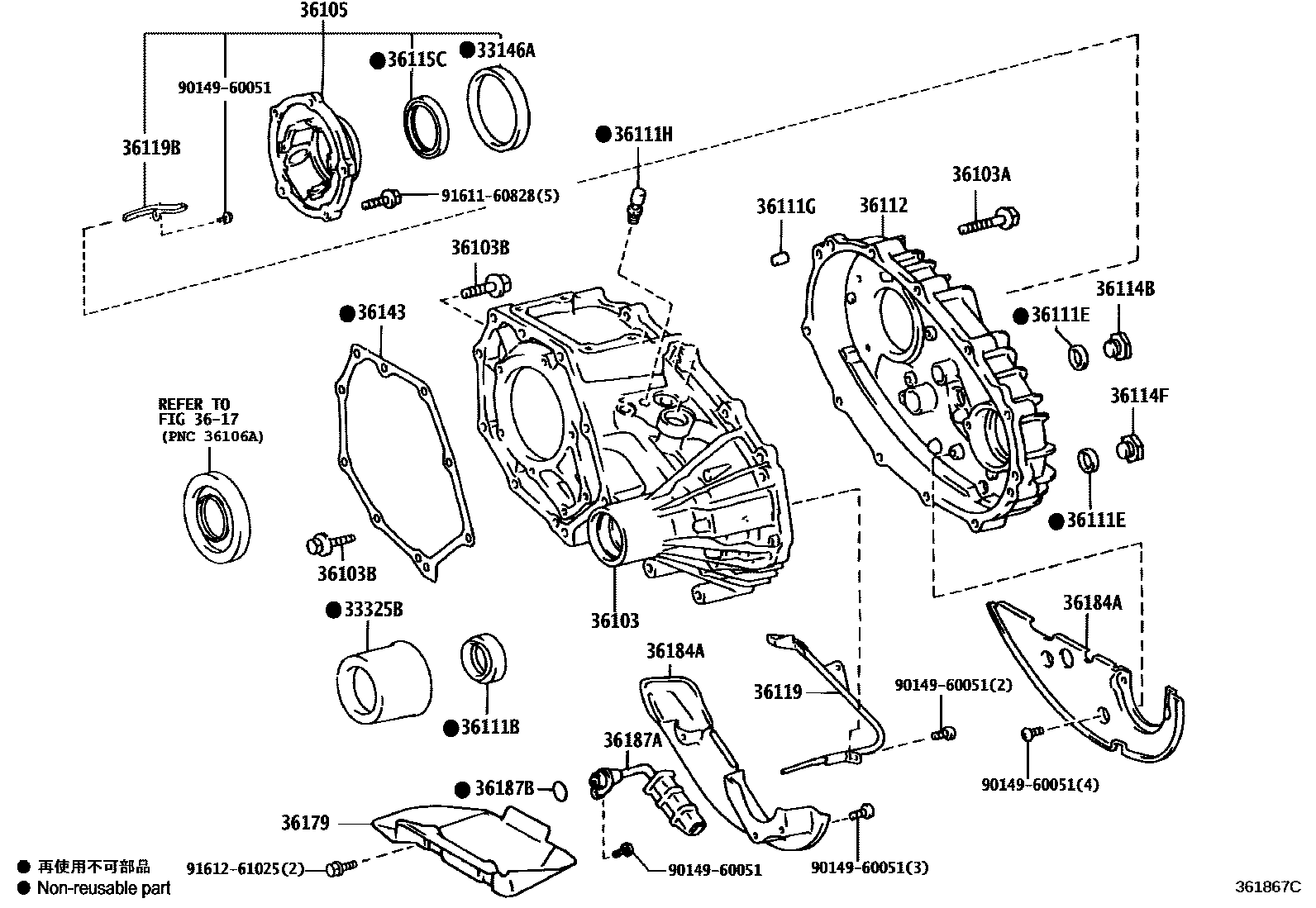

TRANSFER CASE & EXTENSION HOUSING
33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST
sub33146-30020
33325BDEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING)
36103CASE SUB-ASSY, TRANSFER
36103ABOLT (FOR TRANSFER CASE)
36103BBOLT (FOR TRANSFER CASE & ADAPTER SETTING)
36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT
36111BSEAL, OIL (FOR TRANSFER CASE)
36111EGASKET (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36112CASE, TRANSFER, REAR
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36119RECEIVER, TRANSFER OIL, NO.1
36119BRECEIVER, TRANSFER OIL, NO.2
36143GASKET, TRANSFER CASE, FRONT
3617
36179PROTECTOR, TRANSFER CASE LOWER
36184ASEPARATOR, TRANSFER OIL
36187ASTRAINR, TRANSFER OIL, NO.1
36187BRING, O (FOR TRANSFER OIL STRAINER)
9014960051
main90149-60051
9161160828
main91611-60828
9161261025
main91612-61025
25 parts on this diagram · 1 diagram in section
