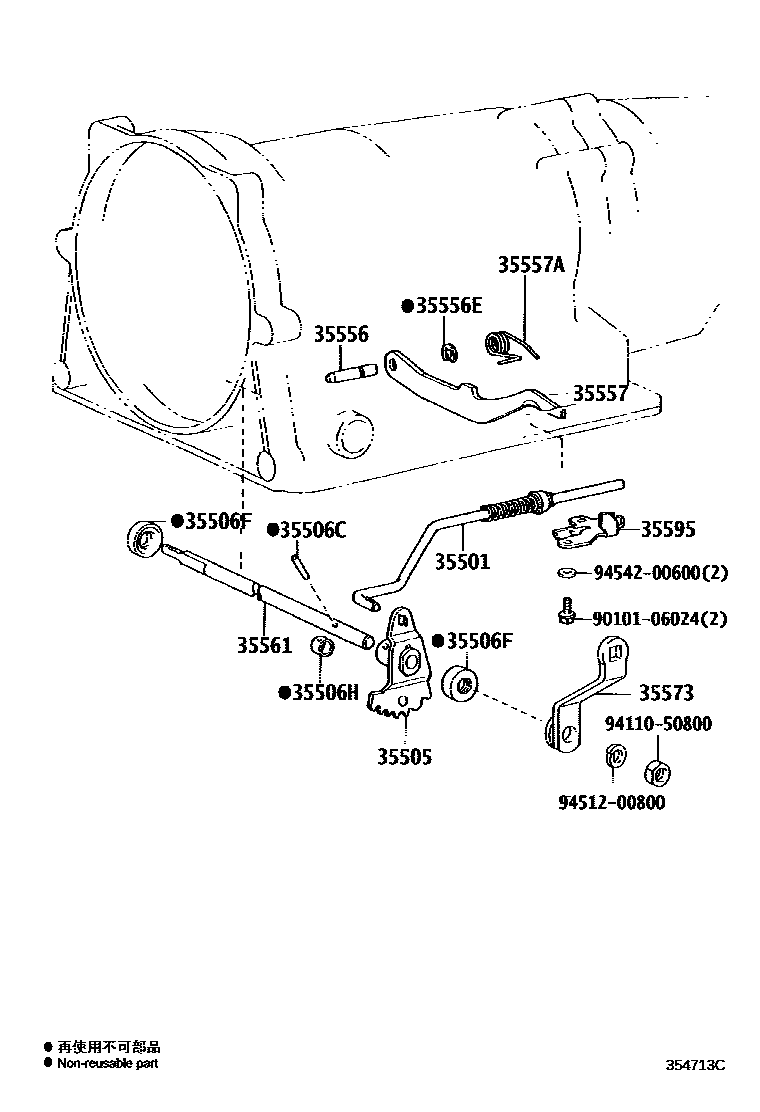

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A45DE 0002 1A340E,A340F,A343E,A343F 0003 1AC60E,AC60F

35501ROD SUB-ASSY, PARKING LOCK

main35501-26020iTRH200..4FC201312-201501

main35501-60010iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

main35501-71020iGDH201,223..IV5201501-202107

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-26010iGDH201..SRF..5D;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;GDH20#,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);GDH206,TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..6201501

main35505-60030iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

sub35505-26020

main35505-71010iTRH200..4FC201312-201501

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);GDH206201312

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11003×2iTRH200..4FC201312-201501

main90311-12002×2iGDH201,223..IV5201312-202107

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGDH201,223..IV5201312-202107

35556SHAFT, PARKING LOCK PAWL

main35556-26010iTRH200..4FC201312-201501

main35556-30020iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

main35556-60020iGDH201,223..IV5201501-202107

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGDH206..IV5;GDH201..SRF..5D;TRH200..03S..4FC;GDH201..V1..HRF..5D;TRH200..V1..HRF..6FC;TRH200..HRF..4FC..CBU;GDH20#,TRH200..SP..6FC;GDH201..SRF..4D..(06S,09S);GDH206201312

35557PAWL, PARKING LOCK

main35557-26020iTRH200..4FC201312-201501

main35557-60020iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

main35557-71010iGDH201..V2..HRF;GDH201..HRF..4D..CBU;GDH20#..4D..SG..03S..CBU201712-202312

main35557-71020iTRH200..SP..6FC;TRH200..5D..03S..6FC;TRH200..SRF..(05S,06S,09S)..6FC;TRH200,21#,22#..(COM,V1,WG)..(HRF,SMRF)..6FC201501

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21001iTRH200..4FC201312-201501

main90508-21002iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

main90949-03123iGDH201,223..IV5201501-202107

35561SHAFT, MANUAL VALVE LEVER

main35561-30060iTRH200..4FC201312-201501

main35561-35010iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

main35561-60030iGDH201,223..IV5201501-202107

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-26090iTRH200..4FC201312-201501

main35573-26100iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

main35573-26110iGDH201,223..IV5201501-202107

35595BRACKET, PARKING LOCK PAWL

main35595-40010iTRH200..4FC201312-201501

main35595-60010iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

main35595-71010iGDH201,223..IV5201501-202107

9010106024

main90101-06024

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

16 parts on this diagram · 3 diagrams in section
