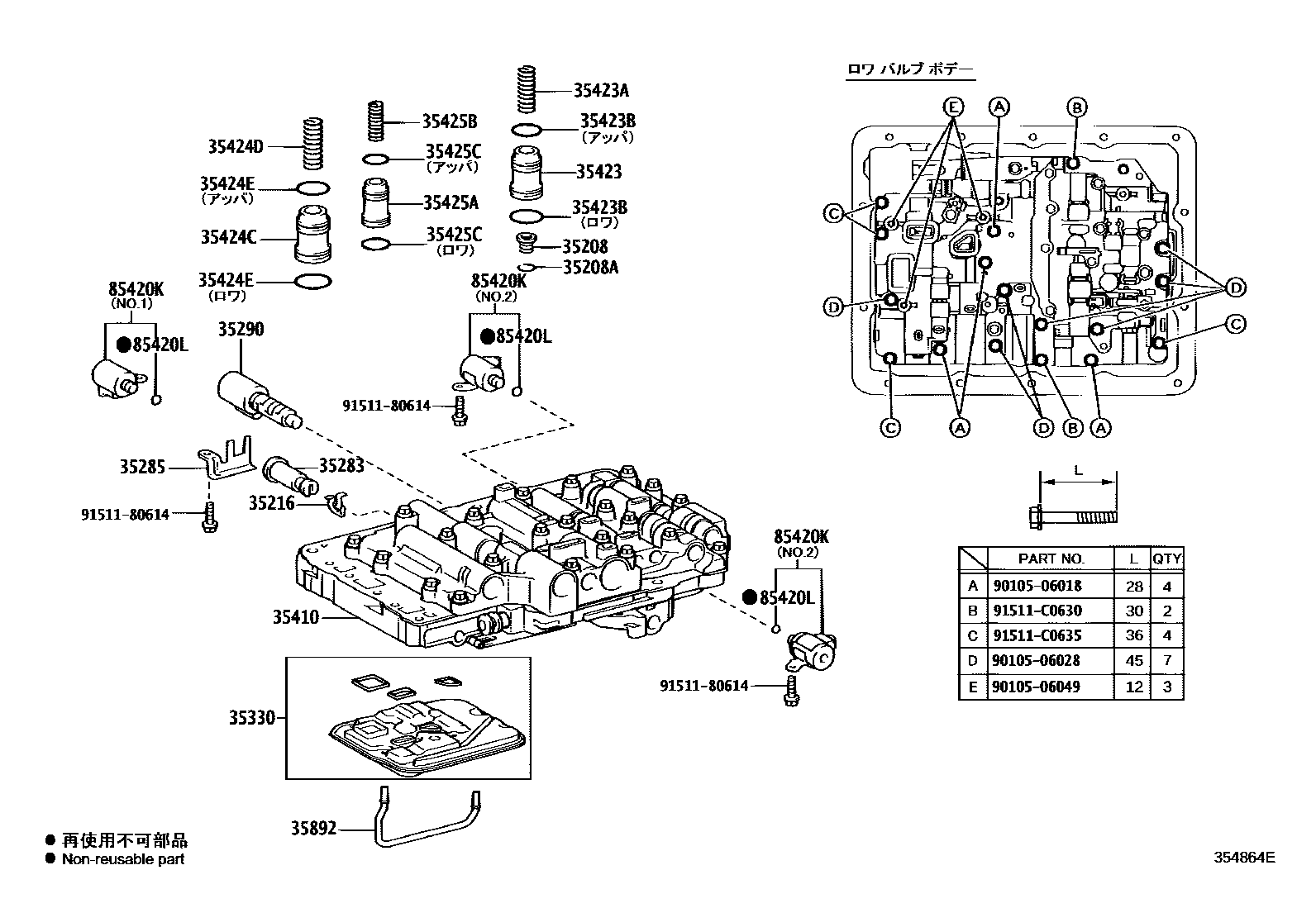

VALVE BODY & OIL STRAINER (ATM)

0001 1A45DE 0002 1A340E,A340F,A343E,A343F 0003 1AC60E,AC60F 0004 1A45DE 0005 1A340E,A340F,A343E,A343F 0006 1AC60E,AC60F

35208SPRING SUB-ASSY, B-2 ACCUMULATOR

main35208-22010iKDH20#,211,22#..4FC201312-201711

main35208-28010iTRH200..4FC201312-201501

main35208-30010iTRH21#,22#201312-201501

35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

main90521-22004iKDH20#,211,22#,TRH200,21#,22#..4FC201312-201711

35216STOPPER, VALVE SLEEVE

main35216-28010iTRH200..4FC201312-201501

35283SLEEVE, LOCK UP CONTROL SOLENOID

main35283-28010iTRH200..4FC201312-201501

35285PLATE, SOLENOID LOCK

main35285-24010iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

main35285-24020iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

main35285-28010iTRH200..4FC201312-201501

main35285-71010iGDH201,223..IV5201501-202312

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-25010iTRH200..4FC201312-201501

main35290-71010iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

35330STRAINER ASSY, VALVE BODY OIL

main35330-26010iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU201501-202312

main35330-30060iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

main35330-53010iTRH200..4FC201312-201501

35410BODY ASSY, TRANSMISSION VALVE

main35410-26740iTRH216,219,226,228,229201312-201501

main35410-26750iKDH201,211,22#..4FC201312-201711

main35410-26760iKDH206..4FC201312-201711

main35410-35790iTRH211,214,221,223,224201312-201501

main35410-71070iTRH200..4FC201312-201501

main35410-71100iTRH200,21#,22#..6FC201501-201504

sub35410-71101

main35410-71101iTRH200,21#,22#..6FC201505-201506

sub35410-71102

main35410-71102iGDH201,223..IV5201507-202310

sub35410-71103

main35410-71103iGDH201..HRF..4D..CBU;GDH201,TRH200..V2..HRF..6FC;GDH20#,TRH200..4D..SG..03S..6FC..CBU202311-202312

35423PISTON, B-2 ACCUMULATOR

main35421-26010iTRH200..4FC201312-201501

main35423-30030iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-24015iTRH21#,22#201312-201501

main90501-25028iKDH20#,211,22#..4FC201312-201711

main90501-25037iTRH200..4FC201312-201501

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-23010iKDH20#,211,22#,TRH200,21#,22#..4FC201312-201711

main90301-29011iTRH200..4FC201312-201501

main90301-31010iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

35424CPISTON, C-1 ACCUMULATOR

main35421-22030iTRH200..4FC201312-201501

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-20162iTRH200..4FC201312-201501

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-21012iTRH200..4FC201312-201501

main90301-26012iTRH200..4FC201312-201501

35425APISTON, C-2 ACCUMULATOR

main35425-30020iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

main35441-30010iTRH200..4FC201312-201501

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-22015iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

main90501-25027iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

main90501-25061iTRH200..4FC201312-201501

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-18010iTRH200..4FC201312-201501

main90301-25010iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

main90301-26012iTRH200..4FC201312-201501

main90301-31010iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

35892TUBE, OVERDRIVE BRAKE

main35892-22010iTRH200..4FC201312-201501

85420KSOLENOID ASSY, TRANSMISSION

main35250-28030iTRH200..4FC201312-201501

main35250-30030iTRH200..4FC201312-201501

main35250-30050iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

main35250-30070iKDH20#,211,22#,TRH21#,22#..4FC201312-201711

85420LRING, O(FOR TRANSMISSION SOLENOID)

main90301-06004iKDH20#,211,22#,TRH200,21#,22#..4FC201312-201711

9010506018

main90105-06018

9010506028

main90105-06028

9010506049

main90105-06049

9151180614

main91511-80614

91511C0630

main91511-C0630

91511C0635

main91511-C0635

26 parts on this diagram · 6 diagrams in section
