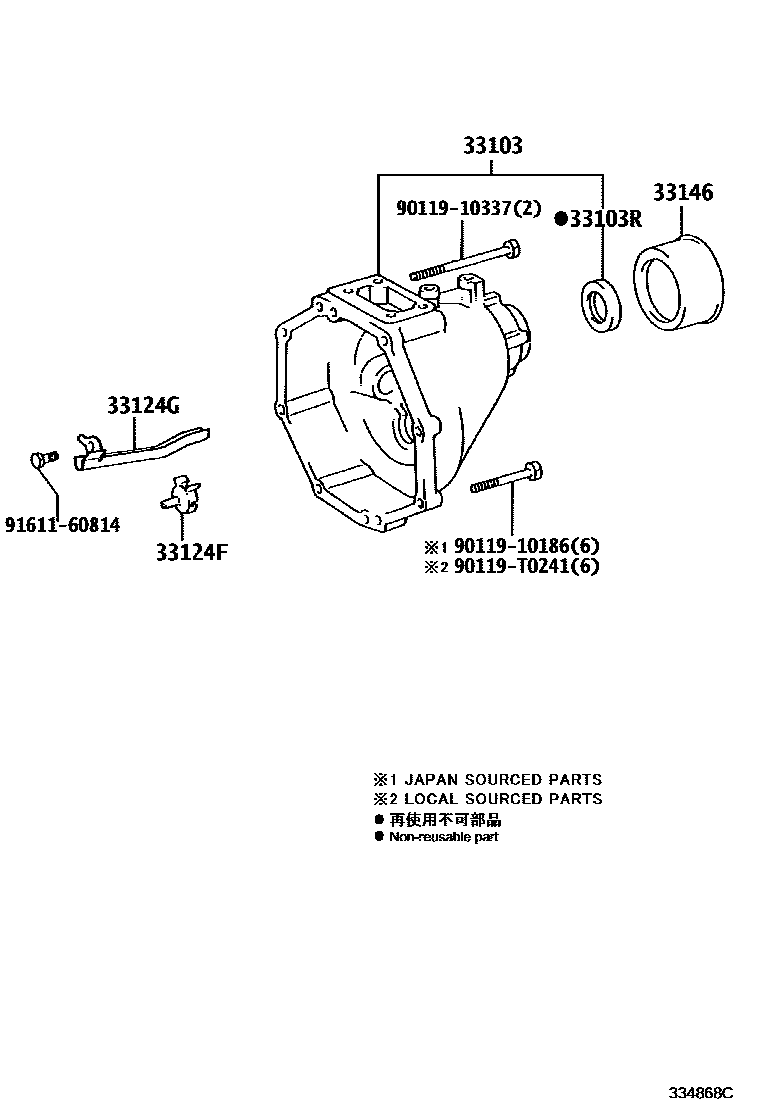

EXTENSION HOUSING (MTM)

0001 1G55 0002 1R351 0003 1R351F

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-0L010iTRH200..5F201312-201508

main33103-26070iKDH201..5F201312-201711

main33103-26100iTRH200..5F201508-202107

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38094iTRH200..5F201508-202107

main90311-40035iKDH201..5F201312-201707

main90311-40048iKDH201..5F201707-201711

main90311-T0050iTRH200..5F201312-201508

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33124-35100iKDH20#..5F201312-201711

main33124-36010iTRH200..5F201312-202107

33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)

main33124-0L010iTRH200..5F201312-201508

main33124-28011iTRH200..5F201508-202107

main33124-35090iKDH201..5F201312-201711

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iKDH201,TRH200..5F201312-202107

main33146-30020iKDH201,TRH200..5F201312-202107

9011910186

main90119-10186

9011910337

main90119-10337

90119T0241

main90119-T0241

9161160814

main91611-60814

9 parts on this diagram · 3 diagrams in section
