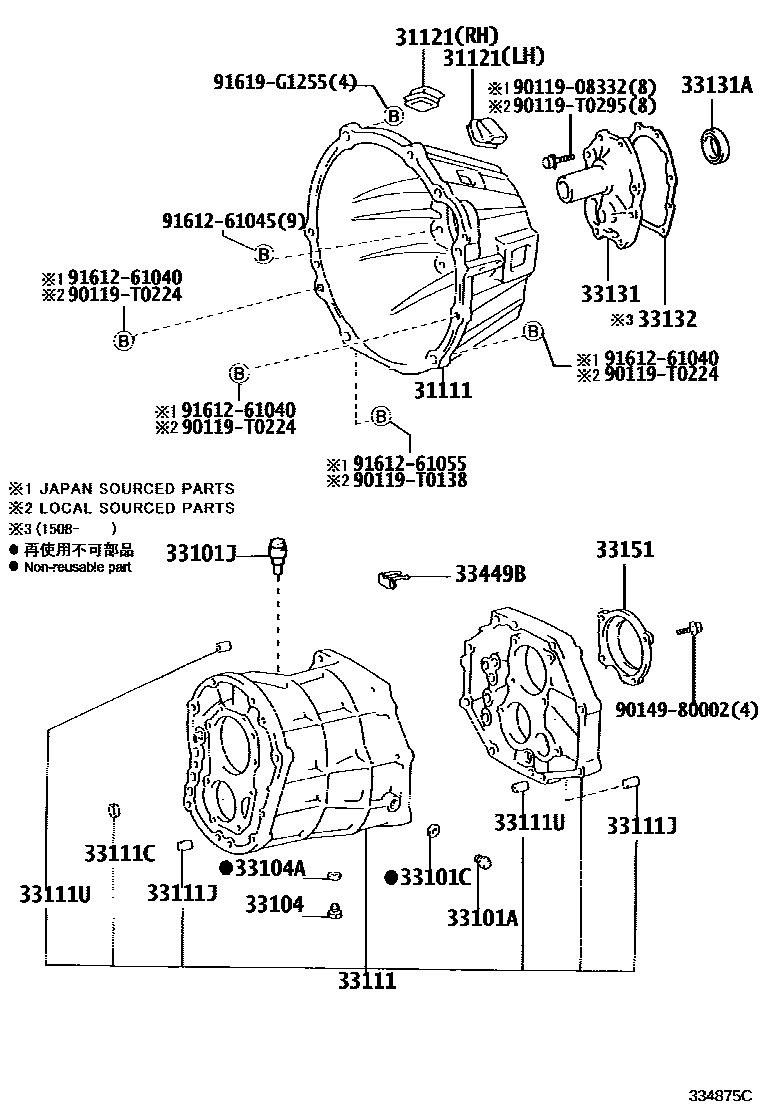

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G55 0002 1R351,R351F

31111HOUSING, CLUTCH

main31111-0K030iTRH200..5F201312-201508

main31111-26032iTRH200..5F201508-202107

main31111-26110iKDH201..5F201312-201711

main31111-26120iKDH206..5F201312-201711

31121COVER, CLUTCH HOUSING, NO.1

main31121-0K030iTRH200..5F201312-201508

main31121-0K040iTRH200..5F201312-201508

main31121-26020iTRH200..5F201508-202107

main31121-35020iTRH200..5F201508-202107

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iKDH20#..5F201312-202107

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iTRH200..5F201312-202107

33101JPLUG, BREATHER

main90930-03085iKDH20#,TRH200..5F201312-202107

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18032iTRH200..5F201508-202107

main90341-18057iTRH200..5F201312-201508

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iTRH200..5F201312-202107

33111CASE, MANUAL TRANSMISSION

main33101-0L010iTRH200..5F201312-201508

sub33101-26060

main33101-26041iKDH20#..5F201312-201711

main33101-26060iTRH200..5F201508-202107

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iKDH20#..5F201312-202107

main96411-41200iKDH201..5F201312-201711

main96411-41800iKDH20#..5F201312-201711

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iKDH20#..5F201312-202107

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iKDH20#,TRH200..5F201312-202107

main90253-15001iTRH200..5F201312-202107

33131RETAINER, BEARING, FRONT(MTM)

main33131-0K030iTRH200..5F201312-201508

sub33131-26020

main33131-26020iTRH200..5F201508-202107

main33131-35031iKDH20#..5F201312-201711

sub33131-35032

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iTRH200..5F201508-202107

main90311-32022iKDH20#..5F201312-201711

main90311-T0021iTRH200..5F201312-201508

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iTRH200..5F201508-202107

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-0K020iTRH200..5F201312-201508

sub33151-35030

main33151-35020iKDH20#..5F201312-201711

main33151-35030iTRH200..5F201508-202107

33449BMAGNET, TRANSMISSION

main33449-26010iTRH200..5F201312-202107

main33449-35030iKDH20#..5F201312-201711

9011908332

main90119-08332

90119T0138

main90119-T0138

90119T0224

main90119-T0224

90119T0295

main90119-T0295

9014980002

main90149-80002

9161261040

main91612-61040

9161261045

main91612-61045

9161261055

main91612-61055

91619G1255

main91619-G1255

25 parts on this diagram · 2 diagrams in section
