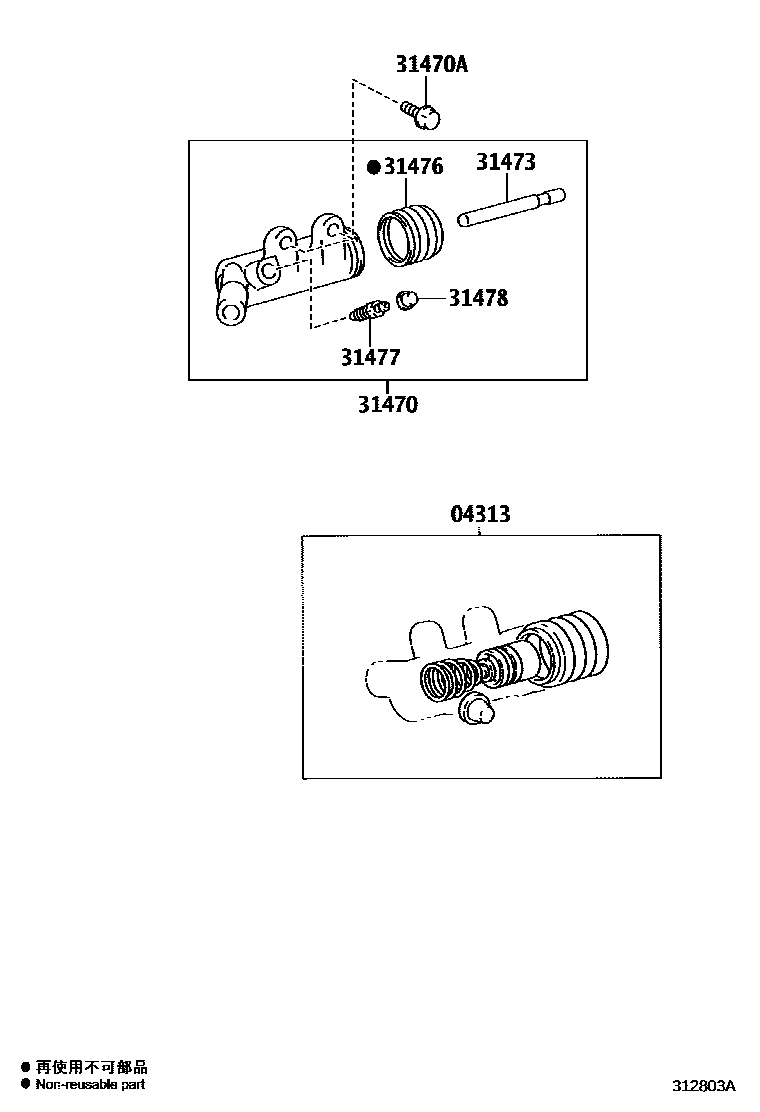

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-22030iTRH200..5F201312-202107

main04313-35060iKDH20#..5F201312-201711

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-26110iTRH200..5F201312-202107

main31470-60201iKDH20#..5F201312-201711

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825iTRH200..5F201312-202107

main91611-G0820iKDH20#..5F201312-201711

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iKDH20#,TRH200..5F201312-202107

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iKDH20#,TRH200..5F201312-202107

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iKDH20#,TRH200..5F201312-202107

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iKDH20#,TRH200..5F201312-202107

7 parts on this diagram · 2 diagrams in section
