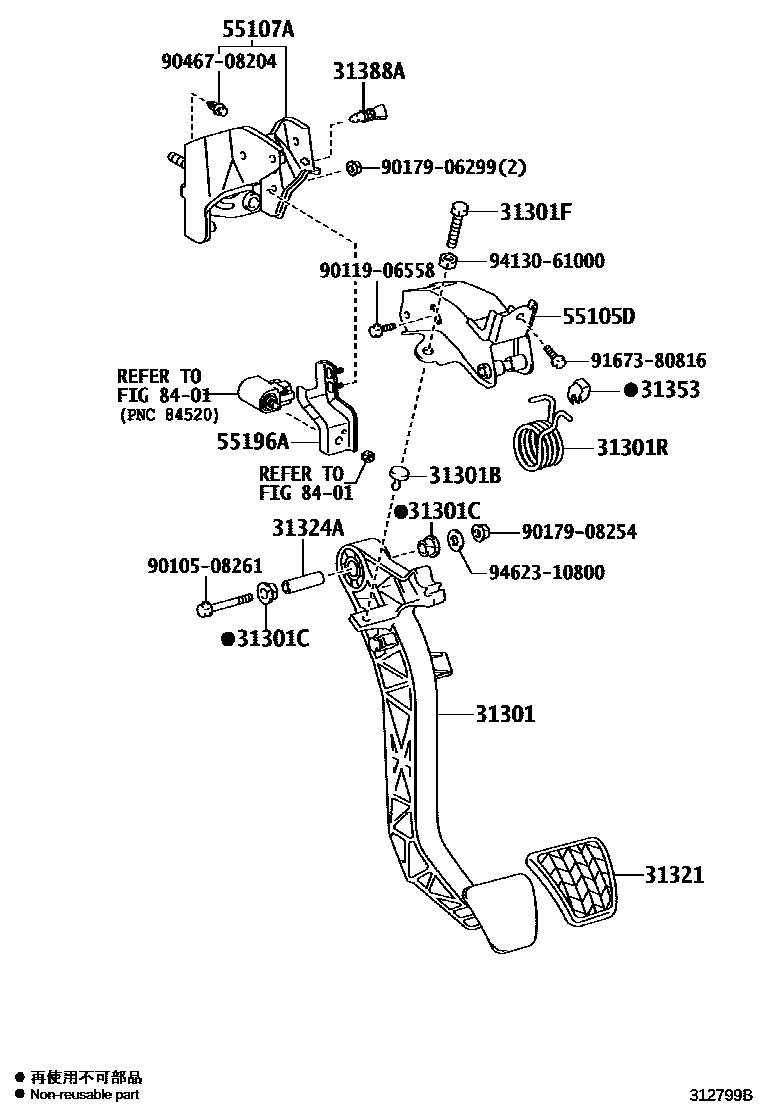

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31311-26151iKDH20#,TRH200..5F201312-202107

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06071iKDH20#,TRH200..5F201312-202107

31301CBUSH(FOR CLUTCH PEDAL)

main90386-14015×2iKDH20#,TRH200..5F201312-202107

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iTRH200..5F201312-201501

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03127iKDH20#,TRH200..5F201312-202107

31321PAD, CLUTCH PEDAL

main31321-52010iKDH20#,TRH200..5F201312-201504

main31321-52020iKDH20#,TRH200..5F201505-202107

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-08160iKDH20#,TRH200..5F201312-202107

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iKDH20#,TRH200..5F201312-202107

31388ASTOPPER, CLUTCH RELEASE SECTOR

main31388-26010iKDH20#,TRH200..5F201312-202107

55105DBRACKET SUB-ASSY, CLUTCH PEDAL

main55105-26020iKDH20#,TRH200..5F201312-202107

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-26040iKDH20#,TRH200..5F201312-202107

55196ABRACKET, CLUTCH START SWITCH MOUNTING

main55196-26020iKDH20#,TRH200..5F201312-202107

8401

9010508261

main90105-08261

9011906558

main90119-06558

9017906299

main90179-06299

9017908254

main90179-08254

9046708204

main90467-08204

9167380816

main91673-80816

9413061000

main94130-61000

9462310800

main94623-10800

21 parts on this diagram · 2 diagrams in section
