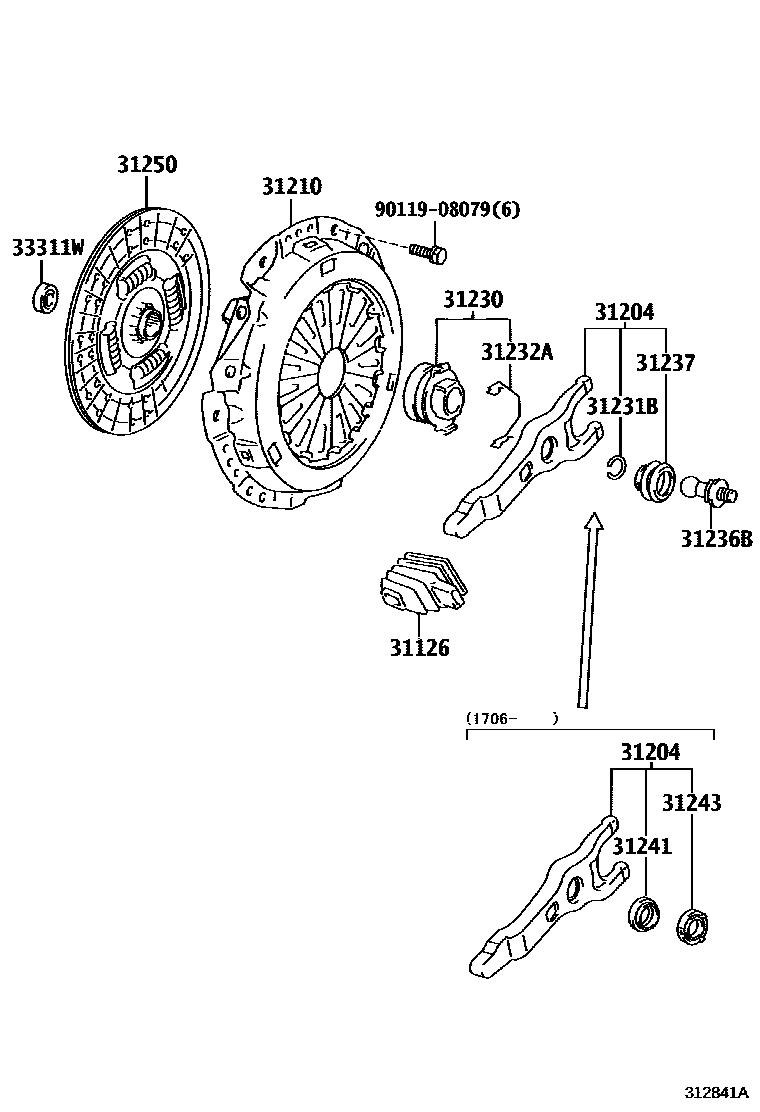

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-0K030iTRH200..5F201312-201508

main31126-26020iTRH200..5F201508-202107

main31126-60081iKDH20#..5F201312-201711

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-0K030iTRH200..5F201312-201508

main31204-20071iTRH200..5F201508-202107

main31204-35070iKDH20#..5F201312-201705

main31204-35071iKDH20#..5F201706-201711

31210COVER ASSY, CLUTCH

main31210-35281iTRH200..5F201312-202107

main31210-36350iKDH20#..5F201312-201711

31230BEARING ASSY, CLUTCH RELEASE

main31230-35091iTRH200..5F201312-202107

main31230-60221iKDH20#..5F201312-201711

31231BRING, SNAP(FOR CLUTCH RELEASE HUB)

main90521-22003iKDH20#..5F201312-201706

31232ACLIP, RELEASE BEARING HUB

main31232-35020iTRH200..5F201508-202107

main31232-35040iTRH200..5F201508-202107

main31232-60030iKDH20#..5F201312-201711

31236BSUPPORT, RELEASE FORK

main31236-26010iTRH200..5F201312-202107

main31236-35050iKDH20#..5F201703-201711

main31236-71011iKDH20#..5F201312-201703

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-60010iKDH201..5F201312-201706

31241SEAL, CLUTCH RELEASE FORK DUST

main31241-71010iKDH20#..5F201706-201711

31243COLLAR, CLUTCH RELEASE FORK

main31243-0K010iKDH20#..5F201706-201711

31250DISC ASSY, CLUTCH

main31250-26200iTRH200..5F201312-202107

main31250-26252iKDH20#..5F201312-201711

sub31250-26253

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iKDH20#..5F201312-201711

sub90363-12024

main90363-12018iTRH200..5F201312-202107

main90363-T0006iKDH20#..5F201312-201711

9011908079

main90119-08079

13 parts on this diagram · 2 diagrams in section
