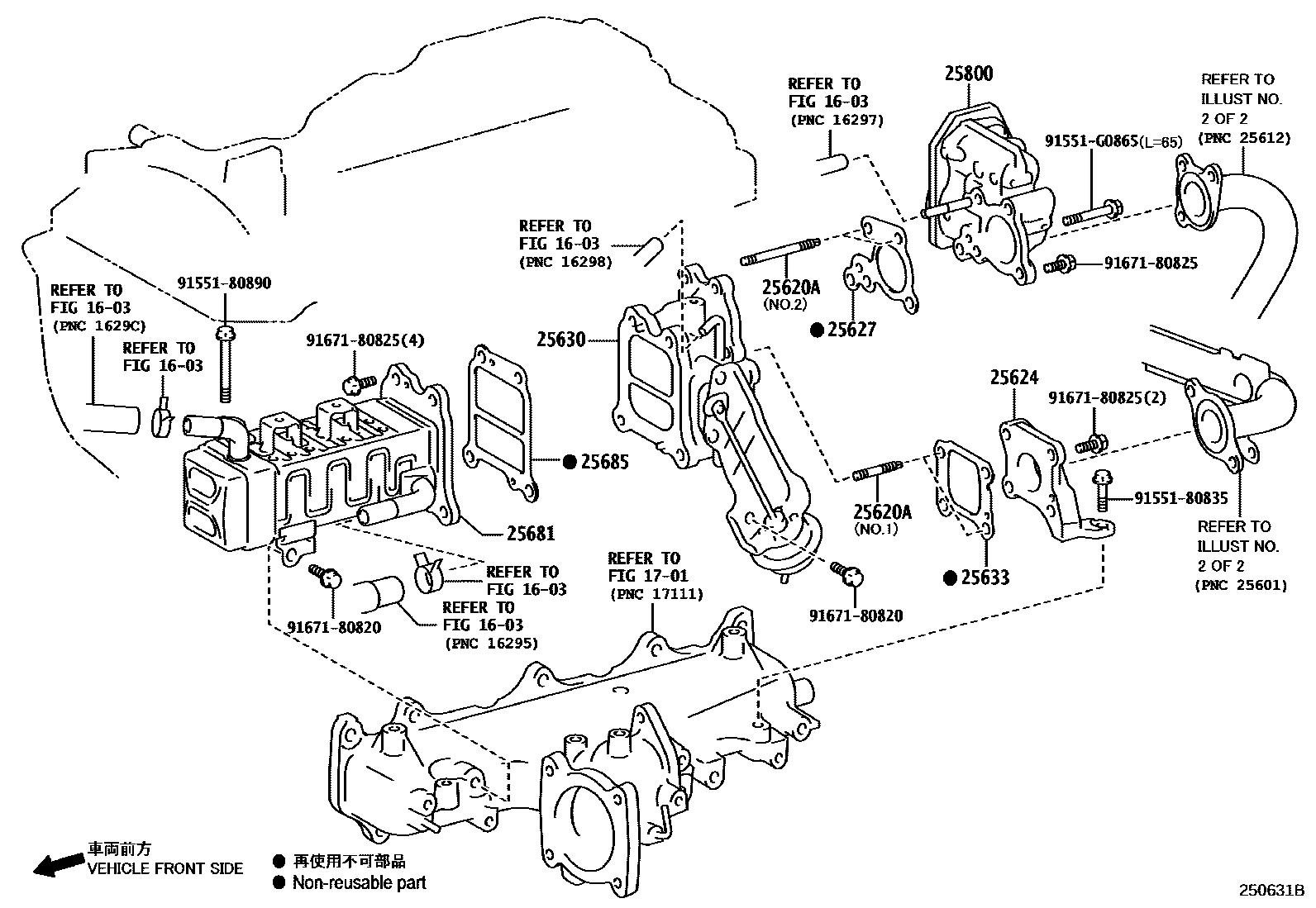

EXHAUST GAS RECIRCULATION SYSTEM

0001 1EGR VAVLE 0002 1EGR VALVE 0003 1

1603

1701

25620ABOLT, STUD(FOR EGR VALVE)

main90126-08047i1GDFTV..GDH201,223..IV5201712-202312

main90126-08064i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

25624ADAPTER, EGR VALVE

main25611-30040i1KDFTV..KDH20#,211,22#201312-201711

main25612-30020i1KDFTV..KDH20#,211,22#201312-201711

main25624-11010i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

25627GASKET, EGR VALVE

main25627-11050i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

main25627-30070i1KDFTV..KDH20#,211,22#201312-201711

25630VALVE ASSY, EGR, NO.2

main25630-11020i1GDFTV..GDH20#,211,22#201712-202101

sub25630-11021

main25630-11021i1GDFTV..GDH201,223..IV5202102-202202

sub25630-11022

main25630-11022i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU202203-202312

main25630-30030i1KDFTV..KDH20#,211,22#201312-201711

25633GASKET, EGR VALVE

main25633-11010i1GDFTV..GDH201,223..IV5201712-202312

main25633-26020i1KDFTV..KDH20#,211,22#201312-201711

25681COOLER, EGR, NO.1

main25681-0W010i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206201712-202312

main25681-0W040i1GDFTV..GDH223..GL..CBU202108-202302

25685GASKET, EGR COOLER, NO.1

main25685-11010i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206201712-202312

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-11010i1GDFTV..GDH201,223..IV5201712-202312

main25800-30200i1KDFTV..KDH20#,211,22#201312-201711

9155180835

main91551-80835

9155180890

main91551-80890

91551G0865

main91551-G0865

9167180820

main91671-80820

9167180825

main91671-80825

15 parts on this diagram · 3 diagrams in section
