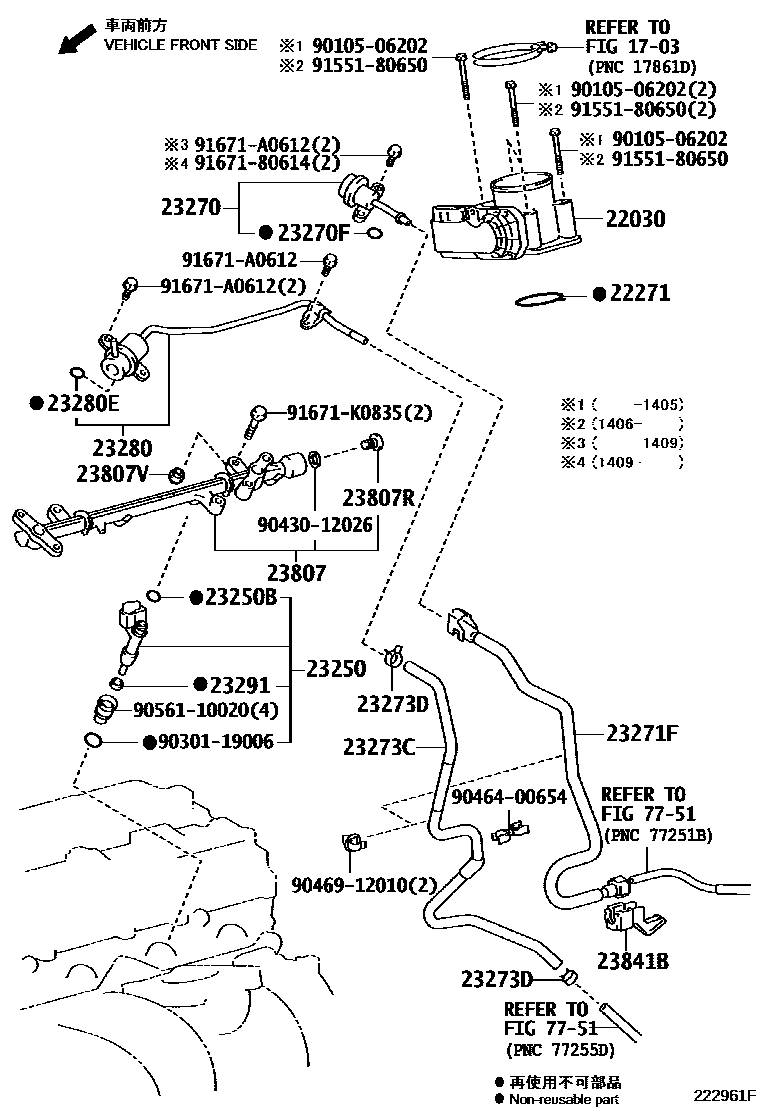

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

1703AIR CLEANER

→ Go to FIG 17-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-37050i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC201501-202312

main22030-75010i1TRFE..TRH200201312-201501

main22030-75020i2TRFE..TRH21#,22#201312-201501

main22030-75040i2TRFE..TRH21#,22#201501

22271GASKET, THROTTLE BODY

main22271-0C021i2TRFE..TRH21#,22#201312-201501

main22271-37010i1TRFE..TRH200..5F201312-202312

main22271-75070i2TRFE..TRH21#,22#201501

23250INJECTOR ASSY, FUEL

main23209-79205i1TRFE..TRH200201312-201501

main23209-79215i2TRFE..TRH21#,22#201501

main23209-79225i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC201501-202312

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i2TRFE..TRH21#,22#201312-201501

main90301-07042i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201501-202312

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-75010i1TRFE..TRH200201312-201411

main23270-75050i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201409-202312

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i1TRFE..TRH200..5F201312-202312

23271FHOSE, FUEL

main23271-75190i1TRFE..TRH200..5F201312-202203

main23271-75200i2TRFE..TRH21#,22#201312-201603

main23271-75201i2TRFE..TRH21#,22#201604-202203

main23271-V3010i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC202204-202312

main23271-V3020i2TRFE..TRH21#,22#202204

23273CHOSE, FUEL, NO.2

main23273-75261i1TRFE..TRH200201312-201501

main23273-75270i2TRFE..TRH21#,22#201312-201501

main23273-75360i1TRFE..TRH200..5F201501-202312

main23273-75370i2TRFE..TRH21#,22#201501

23273DCLIP(FOR FUEL HOSE NO.2)

main96135-51100i1TRFE..TRH200..5F201312-202312

23280REGULATOR ASSY, FUEL PRESSURE

main23280-75040i1TRFE,2TRFE..TRH200,21#,22#201312-201501

main23280-75100i1TRFE..TRH200..5F201501-202312

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07037i2TRFE..TRH21#,22#;1TRFE..TRH200..SP..6FC;1TRFE..TRH200..03S..4FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..HRF..4FC..CBU;1TRFE..TRH200.201312-202312

23291INSULATOR, INJECTOR VIBRATION

main23291-73010i1TRFE..TRH200201312-202312

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-75050i1TRFE,2TRFE..TRH200,21#,22#201312-201410

main23807-75052i1TRFE,2TRFE..TRH200,21#,22#201410-201501

23807RPLUG, FUEL DELIVARY PIPE

main90341-12030i1TRFE,2TRFE..TRH200,21#,22#201312-201501

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-75020i1TRFE..TRH200..5F201501-202312

main90561-08036i1TRFE,2TRFE..TRH200,21#,22#201312-201501

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1TRFE..TRH200..5F201312-202312

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9010506202

main90105-06202

9030119006

main90301-19006

9043012026

main90430-12026

9046400654

main90464-00654

9046912010

main90469-12010

9056110020

main90561-10020

9155180650

main91551-80650

9167180614

main91671-80614

91671A0612

main91671-A0612

91671K0835

main91671-K0835

28 parts on this diagram · 5 diagrams in section
