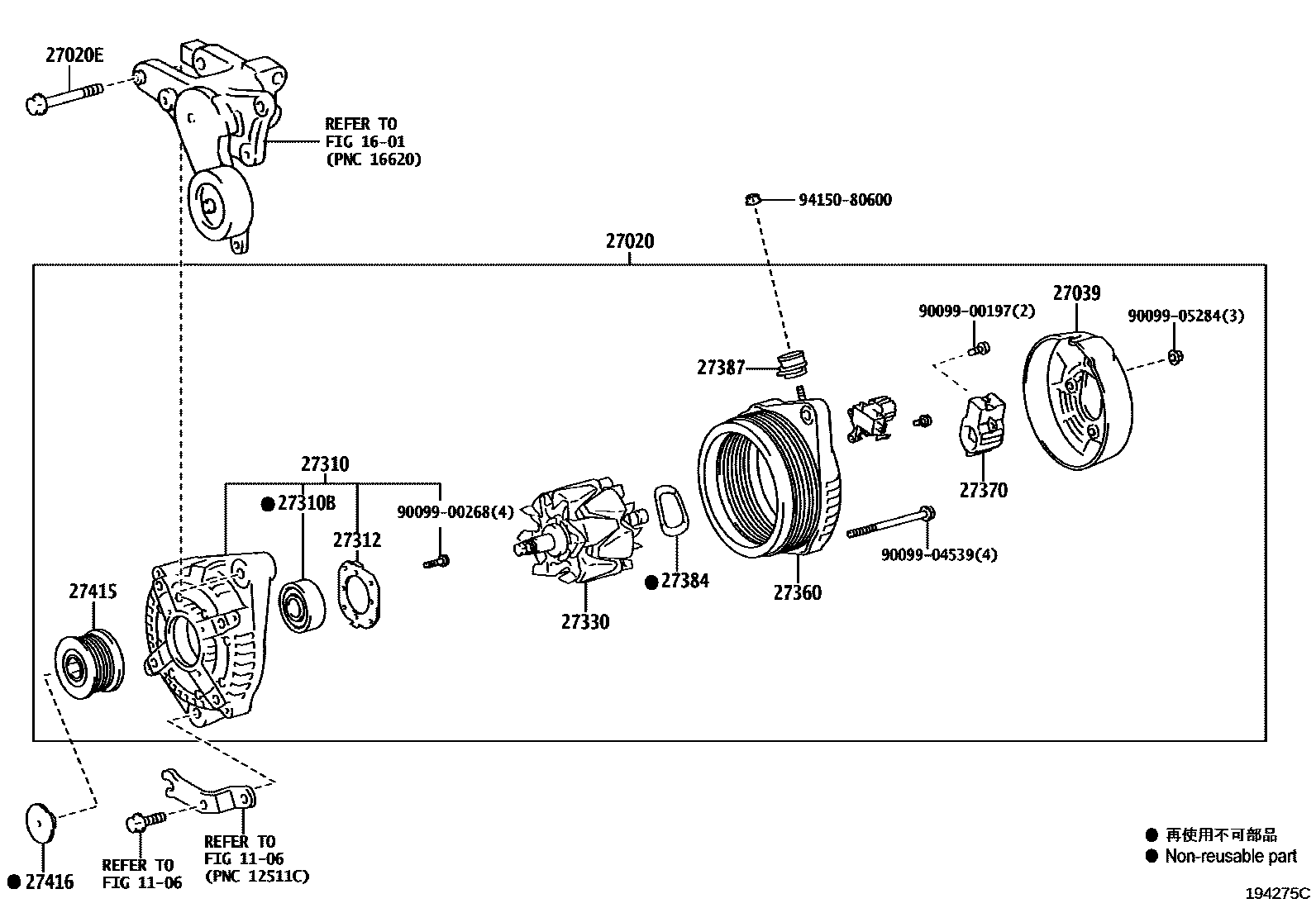

ALTERNATOR

0001 112V 100A, 130A, 150A 0002 112V 130A 0004 112V 130A 0005 112V 130A 0006 112V 130A

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

27020ALTERNATOR ASSY

main27060-11360i1GDFTV..GDH20#..SP;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206,211,22#..(02S,05S,0201712-202312

main27060-11370i1GDFTV..GDH20#..SP201712

main27060-11370i1GDFTV..GDH20#..SP201712-202107

main27060-11370i1GDFTV..GDH20#..5D..03S201712

main27060-30171i1KDFTV..KDH20#,223..IV5201312-201711

main27060-30210i1KDFTV..KDH20#,221..DX..CBU201312-201711

main27060-30220i1KDFTV..KDH20#,221..DX..CBU201312-201711

main27060-30220i1KDFTV..KDH20#,221..DX..CBU201312-201711

main27060-30220i1KDFTV..KDH20#,221..DX..CBU201312-201711

main27060-30220i1KDFTV..KDH20#,221..SG..DX..CBU201312-201711

main27060-30220i1KDFTV..KDH20#,221..SG..DX..CBU201312-201711

main27060-30220i1KDFTV..KDH20#,221..SG..DX..CBU201312-201711

main27060-30220i1KDFTV..KDH20#,221..SG..DX..CBU201312-201711

main27060-30220i1KDFTV..KDH20#,221..SG..DX..CBU201312-201711

main27060-75330i1TRFE..TRH200..5F201312-201501

main27060-75372i1TRFE,2TRFE..TRH200,21#,22#..4FC..(CBU,IV6,IV7)201312-201501

main27060-75471i1TRFE,2TRFE..TRH200,223,224,228..IV5201312-201501

main27060-75500i1TRFE,2TRFE..TRH200,223,224,228..IV5201501

main27060-75510i1TRFE..TRH200..5F201501-202312

27020EBOLT(FOR ALTERNATOR)

main90105-10092i1KDFTV..KDH20#,211,22#201312-201401

main90105-10092i1KDFTV..KDH20#,211,22#201401-201711

main90105-T0074i1KDFTV..KDH20#,211,22#201401-201711

27039COVER, ALTERNATOR REAR END

main27039-31390i1TRFE..TRH200..6FC..IV5;2TRFE..TRH223,224,228..IV5;2TRFE..TRH223,224,228..4FC..CBU;1TRFE,2TRFE..TRH200,21#,221,226,229..4FC201312-201501

main27039-31580i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

main27039-37220i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201501-202312

main27039-50430i1KDFTV..KDH20#,211,22#201312-201711

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-11300i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

main27310-30080i1KDFTV..KDH20#,211,22#201312-201711

main27310-75270i1TRFE,2TRFE..TRH200,21#,22#201312-201501

main27310-75460i1TRFE,2TRFE..TRH200,223,224,228..IV5201501

main27310-75470i1TRFE..TRH200..5F201501-202312

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i1TRFE..TRH200..5F;1GDFTV..GDH201,223..IV5201312-202312

27312PLATE, RETAINER

main27312-72100i1TRFE..TRH200..5F;1GDFTV..GDH201,223..IV5201312-202312

27330ROTOR ASSY, ALTERNATOR

main27330-30070i1KDFTV..KDH20#,221..DX..CBU201312-201711

main27330-33090i1TRFE..TRH200..6FC..IV5;1KDFTV,2TRFE..KDH20#,TRH223,224,228..02S,05S;1KDFTV,1TRFE,2TRFE..KDH211,223,TRH200,21#,221,226,229..4FC;1KDFTV,2TRFE..KDH20#,TRH223,224,228.201312-201501

main27330-37220i1GDFTV..GDH206..IV5;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1TRFE..TRH200..V1..HRF..6FC..CBU;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV,1TRFE..GDH20#,TRH201501-202312

27360COIL ASSY, ALTERNATOR

main27360-11300i1GDFTV..GDH20#..SP;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206,211,22#..(02S,05S,0201712-202312

main27360-11310i1GDFTV..GDH20#..SP201712

main27360-11310i1GDFTV..GDH20#..SP201712

main27360-11310i1GDFTV..GDH201,223..IV5201712-202107

main27360-30181i1KDFTV..KDH20#,223..IV5201312-201711

main27360-30220i1KDFTV..KDH20#,221..DX..CBU201312-201711

main27360-30230i1KDFTV..KDH20#,221..SG..DX..CBU201312-201711

main27360-30230i1KDFTV..KDH20#,221..SG..DX..CBU201312-201711

main27360-30230i1KDFTV..KDH20#,221..SG..DX..CBU201312-201711

main27360-30230i1KDFTV..KDH20#,221..SG..DX..CBU201312-201711

main27360-30230i1KDFTV..KDH20#,221..SG..DX..CBU201312-201711

main27360-30230i1KDFTV..KDH20#,221..SG..DX..CBU201312-201711

main27360-30230i1KDFTV..KDH20#,221..SG..DX..CBU201312-201711

main27360-75280i1TRFE,2TRFE..TRH200,21#,22#..CBU,IV6,IV7201312-201501

main27360-75420i1TRFE,2TRFE..TRH200,223,224,228..IV5201312-201501

main27360-75460i1TRFE,2TRFE..TRH200,223,224,228..IV5201501

main27360-75470i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC;1TRFE,2TRFE..TRH200,21#,22#..(COM,V1,WG)..(HRF,SMRF)..6FC..(CBU,IV6,IV7)201501-202312

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i1GDFTV..GDH201,223..IV5201712-202312

main27370-58460i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..03S..4FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..HRF..4FC..CBU;1KDFTV,2TRFE..KDH20#,211,22#,TRH201312-202312

27384WASHER

main27384-50030i1TRFE..TRH200..5F201312-201501

27387INSULATOR, TERMINAL

main27387-20130i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..03S..4FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..HRF..4FC..CBU;1KDFTV,2TRFE..KDH20#,211,22#,TRH201312-202312

main27387-31580i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W063i1TRFE..TRH200..5F201312-202312

main27415-30010i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201312-202312

27416CAP, ALTERNATOR PULLEY

main27416-0W050i2TRFE..TRH21#,22#;1TRFE..TRH200..SP..6FC;1TRFE..TRH200..03S..4FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..HRF..4FC..CBU;1TRFE..TRH200.201312-202312

main27416-30010i1KDFTV..KDH20#,211,22#201312-201707

main27416-30020i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201708-202312

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

9415080600

main94150-80600

20 parts on this diagram · 5 diagrams in section
