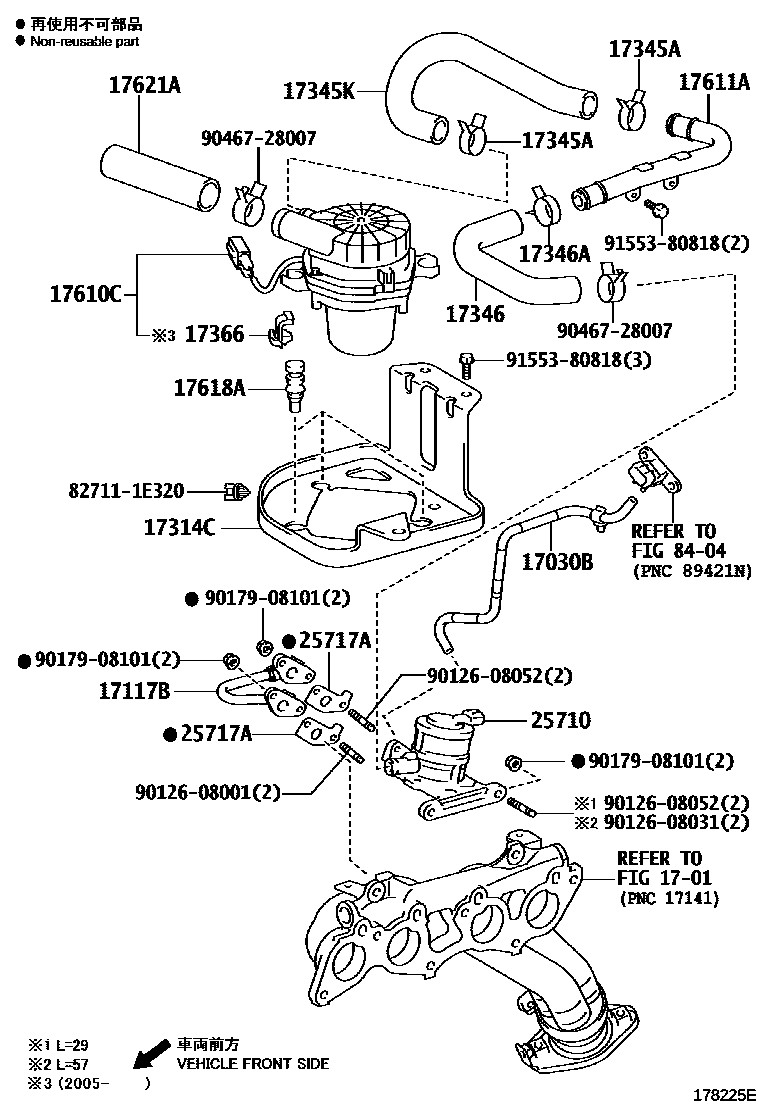

MANIFOLD AIR INJECTION SYSTEM

1701

17030BHOSE ASSY, AIR

main17030-75040i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201501-202312

17117BPIPE, INTAKE, NO.4

main17117-75011i1TRFE..TRH200..5F201312-202107

17314CBRACKET, AIR PUMP

main17314-0C030i1TRFE,2TRFE..TRH200,21#,22#201312-202005

main17314-0W060i1TRFE..TRH200..5F202005-202107

17345ACLAMP OR CLIP, NO.5(FOR AIR INJECTION SYSTEM HOSE, NO.5)

main96134-52600×2i1TRFE..TRH200..5F201312-202107

17345KHOSE, AIR, NO.5

main17345-75060i1TRFE..TRH200..5F201312-202107

17346HOSE, NO.6(FOR AIR INJECTION SYSTEM)

main17346-75050i1TRFE..TRH200..5F201312-202107

main17346-75060i2TRFE..TRH21#,22#201312

17346ACLAMP OR CLIP, NO.6(FOR AIR INJECTION SYSTEM HOSE, NO.6)

main96134-52600i2TRFE..TRH21#,22#;1TRFE..TRH200..SP..6FC;1TRFE..TRH200..03S..4FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..HRF..4FC..CBU;1TRFE..TRH200.201312

17366CLAMP, AIR INJECTION HOSE, NO.1

main17366-0P010×2i2TRFE..TRH21#,22#202005

17610CPUMP ASSY, AIR

main17610-0C010i1TRFE,2TRFE..TRH200,21#,22#201312-202005

main17610-0C050i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU202005-202312

17611APIPE, AIR PUMP INLET

main17611-75010i1TRFE..TRH200..5F201312-202107

17618AINSULATOR, AIR PUMP

main17618-0C010×3i2TRFE..TRH21#,22#;1TRFE..TRH200..SP..6FC;1TRFE..TRH200..03S..4FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..HRF..4FC..CBU;1TRFE..TRH200.201312

17621AINLET, AIR PUMP

main17621-75010i1TRFE..TRH200..5F201312-202107

25710VALVE ASSY, AIR SWITCHING

main25710-75015i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201501-202312

main25710-75025i1TRFE,2TRFE..TRH200,21#,22#201312-201501

25717AGASKET, AIR SWITCHING VALVE

main25717-75010×2i2TRFE..TRH21#,22#;1TRFE..TRH200..SP..6FC;1TRFE..TRH200..03S..4FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..HRF..4FC..CBU;1TRFE..TRH200.201312

8404

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

9012608001

main90126-08001

9012608031

main90126-08031

9012608052

main90126-08052

9017908101

main90179-08101

9046728007

main90467-28007

9155380818

main91553-80818

23 parts on this diagram · 1 diagram in section
