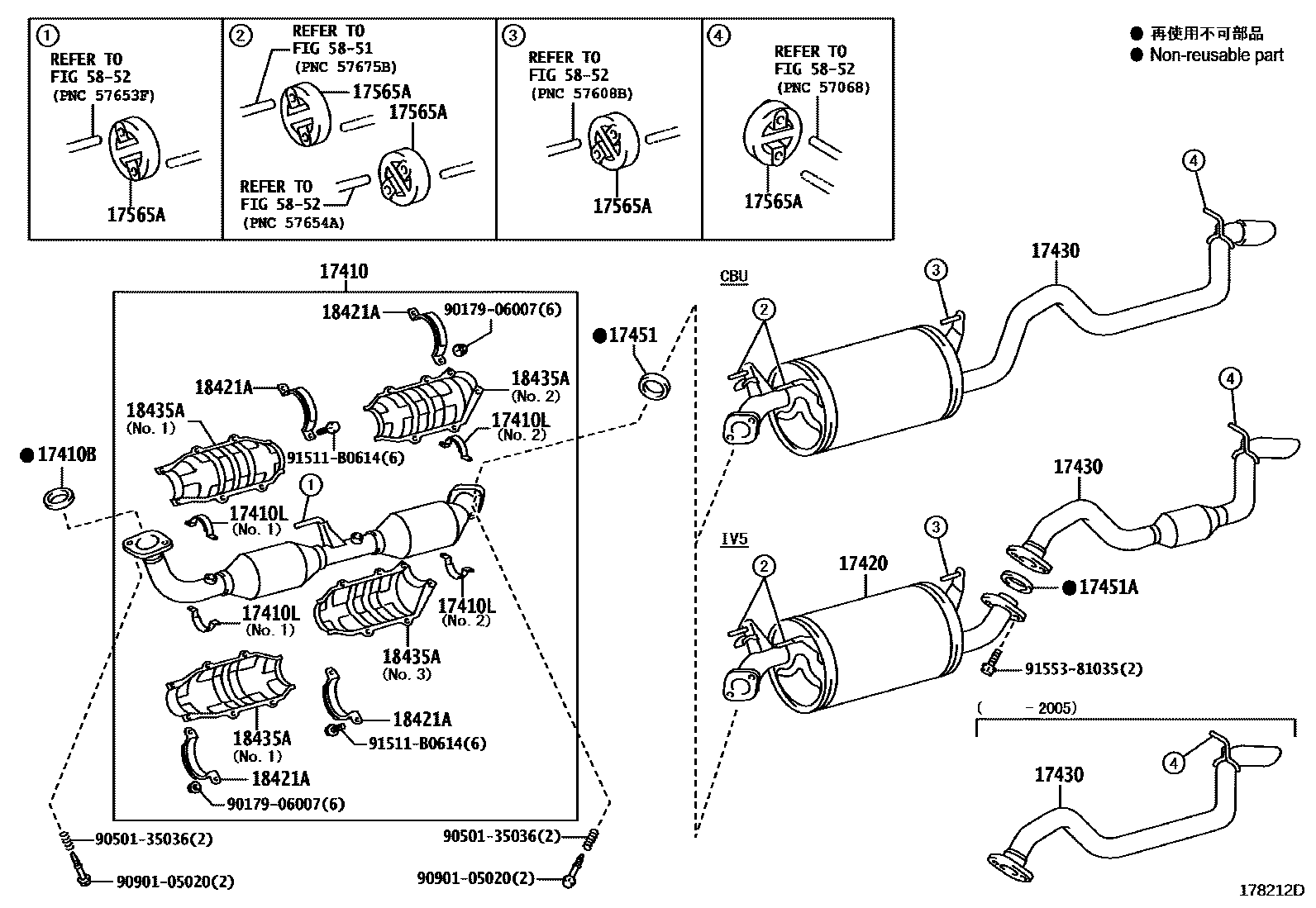

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-11B10i1GDFTV..GDH201,223..IV5201712-202410

main17410-11B20i1GDFTV..GDH206..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH206,226..02S,05S,06S,09S201712-202410

main17410-30330i1KDFTV..KDH201,211,22#201312-201711

main17410-30340i1KDFTV..KDH206201312-201711

main17410-75490i1TRFE..TRH200201312-201501

main17410-75560i2TRFE..TRH211,214,221,223,224201312-201501

main17410-75650i2TRFE..TRH216,219,226,228,229201312-201501

main17410-75660i1TRFE..TRH200201501-202005

main17410-75670i2TRFE..TRH211,214,221,223,224201501-202005

main17410-75680i2TRFE..TRH216,219,226,228,229201501-202005

main17410-75700i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU202005-202312

main17410-75710i2TRFE..TRH211,214,221,223,224202005

main17410-75720i2TRFE..TRH216,219,226,228,229202005

main17410-V3010i1GDFTV..GDH201..SP;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH211,221,223..CBU,IV6;1GDFTV..GDH201..SRF..4D..(06S,09S)202410

main17410-V3020i1GDFTV..GDH206..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH206,226..02S,05S,06S,09S202410

17410BGASKET, EXHAUST PIPE

main17451-22070i1TRFE..TRH200..5F;1GDFTV..GDH201,223..IV5201312-202312

17410LSTAY, EXHAUST PIPE PROTECTOR (FOR FRONT)

main17541-75030i1TRFE..TRH200..5F201312-202312

main17541-75040i2TRFE..TRH21#,22#;1TRFE..TRH200..SP..6FC;1TRFE..TRH200..03S..4FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..HRF..4FC..CBU;1TRFE..TRH200.201312-202312

17420PIPE ASSY, EXHAUST, CENTER

main17420-11650i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH206..05S,06S,09S;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GD201712-202312

main17420-11740i1GDFTV..GDH223..IV5201712-202107

main17420-30230i1KDFTV..KDH20#,211201312-201711

main17420-30240i1KDFTV..KDH22#201312-201711

main17420-75420i2TRFE..TRH22#201312

main17420-75460i1TRFE..TRH200..IV5201312

17430PIPE ASSY, EXHAUST, TAIL

main17430-11A10i1GDFTV..GDH211,22#..CBU,IV6201712

main17430-11A20i1GDFTV..GDH20#..SP;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH206..5D..03S;1GDFTV..GDH206..05S,06S,09S;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S)201712-202312

main17430-30170i1KDFTV..KDH20#..CBU201312-201711

main17430-30180i1KDFTV,2TRFE..KDH211,22#,TRH22#..CBU,IV6,IV7201312-202005

main17430-75710i1TRFE..TRH200..CBU201312-202005

main17430-75750i2TRFE..TRH21#201312-202005

main17430-75802i1KDFTV,1TRFE..KDH20#,TRH200..IV5201312-202005

main17430-75812i1KDFTV,2TRFE..KDH223,TRH223,224,228..IV5201312-202005

main17430-75A30i1GDFTV..GDH201..IV5201712-202107

main17430-75A40i1GDFTV..GDH223..IV5201712-202107

main17430-75A50i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU202005-202312

main17430-75A60i2TRFE..TRH21#202005

main17430-75A70i2TRFE..TRH22#..CBU,IV6,IV7202005

main17430-75B00i1TRFE..TRH200..IV5202005

main17430-75B10i2TRFE..TRH223,228..IV5202005

17451GASKET, EXHAUST PIPE

main17451-74040i1KDFTV..KDH20#,211,22#;1TRFE..TRH200..SP..6FC;1TRFE..TRH200..03S..4FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..HRF..4FC..CBU;1TRFE..TR201312-202312

main90917-06054i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201312-202312

17451AGASKET, EXHAUST PIPE, NO.2

main90917-06073i1TRFE..TRH200..IV5;1KDFTV..KDH20#,211,22#201312

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0P240i1GDFTV..GDH201..HRF..4D..CBU;1GDFTV,1TRFE..GDH201,TRH200..V2..HRF..6FC;1GDFTV,1TRFE..GDH20#,TRH200..4D..SG..03S..6FC..CBU201312-202312

main17565-28010i1GDFTV..GDH223..IV5201312-202312

18421ASTAY, CONVERTER PROTECTOR, LH

main18421-75020i1TRFE..TRH200..5F201312-202312

18435APROTECTOR, MONOLITHIC CONVERTER

main18435-75050i2TRFE..TRH216,219,226,228,229201312-201501

sub18435-75120

main18435-75060i1TRFE,2TRFE..TRH200,21#,22#201312-202005

main18435-75100i2TRFE..TRH211,214,221,223,224201312-201408

sub18435-75130

main18435-75120i1TRFE..TRH200..5F201409-202005

main18435-75130i2TRFE..TRH211,214,221,223,224201409-201501

main18435-75150i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC;1TRFE,2TRFE..TRH200,21#,22#..(COM,V1,WG)..(HRF,SMRF)..6FC202005-202312

main18435-75160i1TRFE..TRH200..5F202005-202312

main18445-75030i2TRFE..TRH211,214,221,223,224..6FC;1TRFE,2TRFE..TRH200,216,219,226,228,229201312-202005

main18445-75050i2TRFE..TRH211,214,221,223,224201312-201501

main18445-75060i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU202005-202312

5851

5852

9017906007

main90179-06007

9050135036

main90501-35036

9090105020

main90901-05020

91511B0614

main91511-B0614

9155381035

main91553-81035
