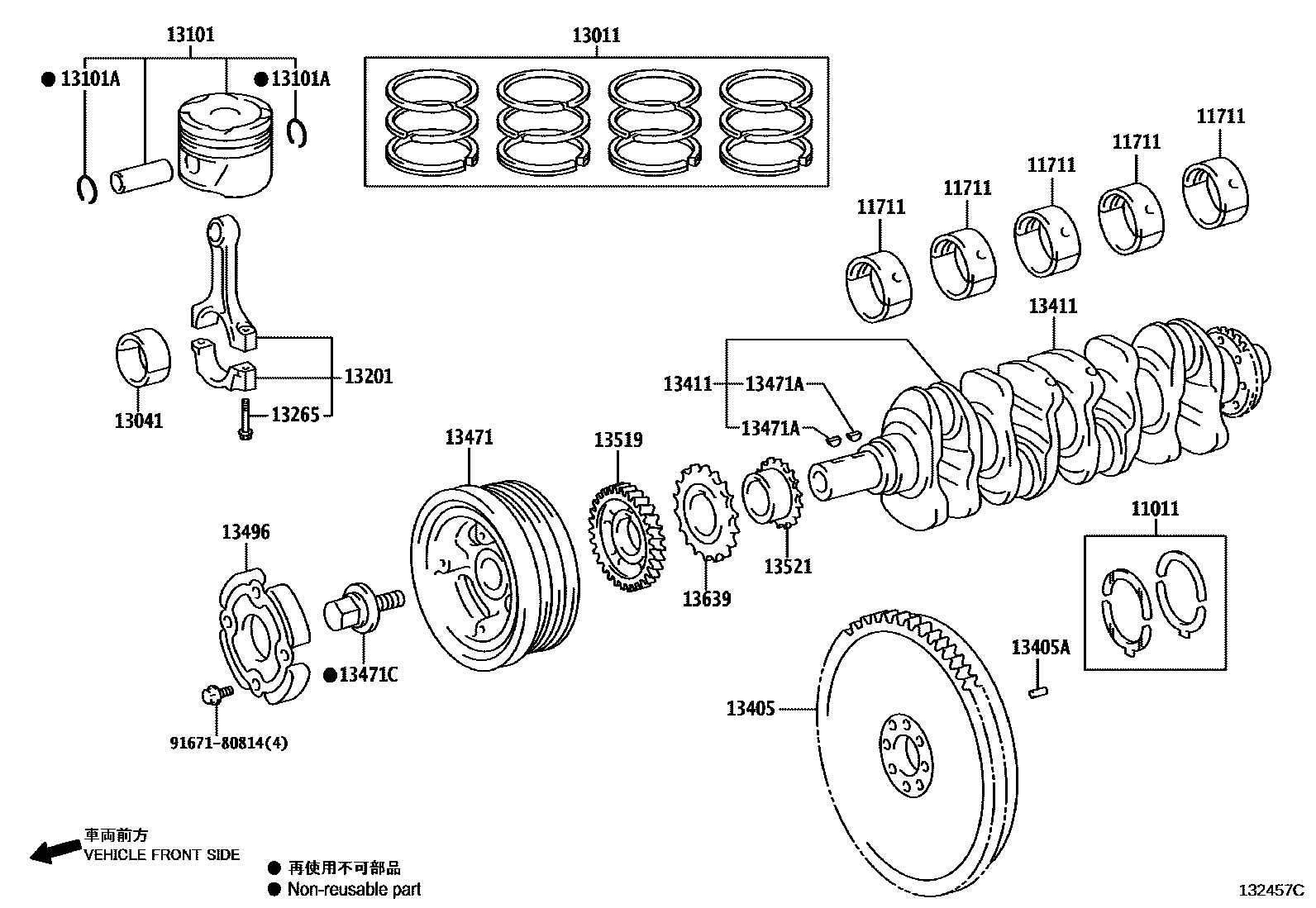

CRANKSHAFT & PISTON

0001 1 0002 1 0003 1 0004 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-30010i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

main11011-75020×2i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC;1TRFE,2TRFE..TRH200,21#,22#..(COM,V1,WG)..(HRF,SMRF)..6FC201902

main11011-75021×2i1TRFE..TRH200201501-201901

main11012-30010i1KDFTV..KDH20#,211,22#201312-201711

main11013-30010i1KDFTV..KDH20#,211,22#201312-201711

11711BEARING, CRANKSHAFT

main11701-11030-02×5i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

main11701-11030-03×5i1GDFTV..GDH201,223..IV5201712-202107

main11701-11030-04×5i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

main11701-11030-05×5i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

main11701-11030-06×5i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

main11701-30020-02×5i1KDFTV..KDH20#,211,22#201708-201711

main11701-30020-03×5i1KDFTV..KDH20#,211,22#201708-201711

main11701-30020-04×5i1KDFTV..KDH20#,211,22#201708-201711

main11701-30020-05×5i1KDFTV..KDH20#,211,22#201708-201711

main11701-30020-06×5i1KDFTV..KDH20#,211,22#201708-201711

main11701-30030-02×5i1KDFTV..KDH20#,211,22#201312-201707

main11701-30030-03×5i1KDFTV..KDH20#,211,22#201312-201707

main11701-30030-04×5i1KDFTV..KDH20#,211,22#201312-201707

main11701-30030-05×5i1KDFTV..KDH20#,211,22#201312-201707

main11701-30030-06×5i1KDFTV..KDH20#,211,22#201312-201707

main11701-75031-01×5i1TRFE,2TRFE..TRH200,21#,22#201312-201405

main11701-75031-02×5i1TRFE,2TRFE..TRH200,21#,22#201312-201405

main11701-75031-03×5i1TRFE,2TRFE..TRH200,21#,22#201312-201405

main11701-75032-01×5i1TRFE,2TRFE..TRH200,21#,22#201406-201412

main11701-75032-02×5i1TRFE,2TRFE..TRH200,21#,22#201406-201412

main11701-75032-03×5i1TRFE,2TRFE..TRH200,21#,22#201406-201412

main11701-75032-04×5i1TRFE,2TRFE..TRH200,21#,22#201406-201412

main11701-75032-05×5i1TRFE,2TRFE..TRH200,21#,22#201406-201412

main11701-75033-01×5i1TRFE,2TRFE..TRH200,21#,22#201501-201712

main11701-75033-02×5i1TRFE,2TRFE..TRH200,21#,22#201501-201712

main11701-75033-03×5i1TRFE,2TRFE..TRH200,21#,22#201501-201712

main11701-75033-04×5i1TRFE,2TRFE..TRH200,21#,22#201501-201712

main11701-75033-05×5i1TRFE,2TRFE..TRH200,21#,22#201501-201712

main11701-75034-01×5i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC;1TRFE,2TRFE..TRH200,21#,22#..(COM,V1,WG)..(HRF,SMRF)..6FC201712

main11701-75034-02×5i1TRFE..TRH200..5F201712-202107

main11701-75034-03×5i1TRFE..TRH200..5F201712-202107

main11701-75034-04×5i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201712-202312

main11701-75034-05×5i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201712-202312

13011RING SET, PISTON

main13011-11200i1GDFTV..GDH20#,211,22#201712-202004

main13011-11201i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU202005-202312

main13011-30160i1KDFTV..KDH20#,211,22#201312-201711

main13011-75100i1TRFE..TRH200201312-201501

main13011-75110i2TRFE..TRH21#,22#201312-201501

main13011-75200i2TRFE..TRH21#,22#201501

main13011-75210i1TRFE..TRH200..5F201501-202107

main13013-30160i1KDFTV..KDH20#,211,22#201312-201711

main13013-75100i1TRFE..TRH200201312-201501

main13013-75110i2TRFE..TRH21#,22#201312-201501

main13013-75200i2TRFE..TRH21#,22#201501

main13013-75210i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201501-202312

main13014-30160i1KDFTV..KDH20#,211,22#201312-201711

main13015-30160i1KDFTV..KDH20#,211,22#201312-201711

13041BEARING, CONNECTING ROD

main13041-11060-02×4i1GDFTV..GDH201,223..IV5201712-202107

main13041-11060-03×4i1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6201712-202109

main13041-11060-04×4i1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6201712-202109

main13041-11060-05×4i1GDFTV..GDH201,223..IV5201712-202107

main13041-11060-06×4i1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6201712-202109

main13041-11061-02×4i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206202110

main13041-11061-03×4i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206202110

main13041-11061-04×4i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU202110-202312

main13041-11061-05×4i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206202110

main13041-11061-06×4i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206202110

main13041-30030-02×4i1KDFTV..KDH20#,211,22#201312-201711

main13041-30030-03×4i1KDFTV..KDH20#,211,22#201312-201711

main13041-30030-04×4i1KDFTV..KDH20#,211,22#201312-201711

main13041-30030-05×4i1KDFTV..KDH20#,211,22#201312-201711

main13041-30030-06×4i1KDFTV..KDH20#,211,22#201312-201711

main13041-75050-04×4i1TRFE,2TRFE..TRH200,21#,22#201312-201501

main13041-75050-05×4i1TRFE,2TRFE..TRH200,21#,22#201312-201501

main13041-75050-06×4i1TRFE,2TRFE..TRH200,21#,22#201312-201501

main13041-75052-04×4i1TRFE,2TRFE..TRH200,21#,22#201501-201601

main13041-75052-05×4i1TRFE,2TRFE..TRH200,21#,22#201501-201601

main13041-75052-06×4i1TRFE,2TRFE..TRH200,21#,22#201501-201601

main13041-75070-04×4i1TRFE..TRH200..5F201601-202107

main13041-75070-05×4i1TRFE..TRH200..5F201601-202107

main13041-75070-06×4i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC;1TRFE,2TRFE..TRH200,21#,22#..(COM,V1,WG)..(HRF,SMRF)..6FC201601

13101PISTON SUB-ASSY, W/PIN

main13101-11190-01×4i1GDFTV..GDH20#,211,22#201712-202106

main13101-11190-02×4i1GDFTV..GDH20#,211,22#201712-202106

main13101-11191-01×4i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206202106

main13101-11191-02×4i1GDFTV..GDH201,223..IV5202106-202107

main13101-30172-01×4i1KDFTV..KDH20#,211,22#201710-201711

main13101-30172-02×4i1KDFTV..KDH201..V1..HRF..5F201312-201711

main13101-30172-03×4i1KDFTV..KDH201..V1..HRF..5F201312-201711

main13101-75120×4i1TRFE..TRH200201312-201501

main13101-75130×4i2TRFE..TRH21#,22#201312-201501

main13101-75200×4i2TRFE..TRH21#,22#201501

main13101-75210×4i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC201501

main13103-30170×4i1KDFTV..KDH20#,211,22#201312-201510

main13103-30172×4i1KDFTV..KDH20#,211,22#201510-201711

main13103-75120×4i1TRFE..TRH200201312-201501

main13103-75130×4i2TRFE..TRH21#,22#201312-201501

main13103-75200×4i2TRFE..TRH21#,22#201501

main13103-75210×4i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201501-202312

main13104-30170×4i1KDFTV..KDH20#,211,22#201312-201510

main13104-30172×4i1KDFTV..KDH20#,211,22#201510-201711

main13105-30170×4i1KDFTV..KDH20#,211,22#201312-201510

main13105-30172×4i1KDFTV..KDH20#,211,22#201510-201711

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025×8i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201312-202312

main90520-32013×8i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206201712

main90520-37014×8i1KDFTV..KDH20#,211,22#201312-201711

13201ROD SUB-ASSY, CONNECTING

main13201-0E020-A0×4i1GDFTV..GDH201,223..IV5201801-202107

main13201-0E020-B0×4i1GDFTV..GDH201,223..IV5201801-202107

main13201-0E020-C0×4i1GDFTV..GDH201,223..IV5201801-202107

main13201-11050-A0×4i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206201801

main13201-11050-B0×4i1GDFTV..GDH20#,211,22#201712-201801

main13201-11050-C0×4i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206201801

main13201-30021×4i1KDFTV..KDH20#,211,22#201312-201711

sub13201-30051

main13201-79476×4i1TRFE..TRH200201312-201501

main13201-79477×4i1TRFE..TRH200201501-201601

main13201-79478×4i1TRFE..TRH200201601-202001

main13201-79479×4i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU202001-202312

main13201-79615×4i2TRFE..TRH21#,22#201312-201501

main13201-79616×4i2TRFE..TRH21#,22#201501-201601

main13201-79617×4i2TRFE..TRH21#,22#201601

13265BOLT, CONNECTING ROD

main13265-0C010×8i2TRFE..TRH21#,22#201904-202005

main13265-22031×8i1GDFTV..GDH201,223..IV5201712-202107

main13265-28010×8i1TRFE,2TRFE..TRH200,21#,22#201312-201812

main13265-28020×8i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC201901

main13265-67021×8i1KDFTV..KDH20#,211,22#201312-201711

13405FLYWHEEL SUB-ASSY

main13405-11090i1GDFTV..GDH201,223..IV5201712-202107

main13405-67030i1KDFTV..KDH20#,211,22#..4FC201312-201711

main13405-67060i1KDFTV..KDH20#..5F201312-201711

main13405-75050i1TRFE..TRH200..5F201312-202107

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-05121i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

main90250-08054×3i1TRFE..TRH200..5F201312-202107

main90250-10192×3i1KDFTV..KDH20#..5F201312-201711

13411CRANKSHAFT

main13401-0C022i2TRFE..TRH21#,22#202401

main13401-0C030i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC202401

main13401-11090i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206201712

main13401-30010i1KDFTV..KDH20#,211,22#201312-201711

main13401-75010i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201312-202312

main13401-75021i2TRFE..TRH21#,22#202005-202401

main13401-75040i2TRFE..TRH21#,22#201312-201408

main13401-75041i2TRFE..TRH21#,22#201408-202005

13471PULLEY, CRANKSHAFT

main13408-11060i1GDFTV..GDH201,223..IV5201712-202107

main13408-11061i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206202210

main13408-30021i1KDFTV..KDH20#,211,22#201312-201711

main13408-75050i2TRFE..TRH21#,22#;1TRFE..TRH200..SP..6FC;1TRFE..TRH200..03S..4FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..HRF..4FC..CBU;1TRFE..TRH200.201312

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005×2i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..03S..4FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..HRF..4FC..CBU;1TRFE..TRH200..SRF..(05S,06S,09S201312-202401

main90280-T0003×2i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC;1TRFE,2TRFE..TRH200,21#,22#..(COM,V1,WG)..(HRF,SMRF)..6FC202401

main95161-30516×2i1KDFTV..KDH20#,211,22#201312-201711

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-16041i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201312-202312

main90119-18003i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206201712

13496COVER, CRANKSHAFT PULLY

main13496-11010i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206201712

13519GEAR, OIL PUMP DRIVE

main13519-0E010i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206202308

main13519-11010i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU202308-202312

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-11050i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206201712

main13521-30020i1KDFTV..KDH20#,211,22#201312-201711

main13521-75020i2TRFE..TRH21#,22#201312-201405

main13521-75021i1TRFE..TRH200..5F201405-202107

13639SPROCKET, BALANCESHAFT TIMING

main13639-11010i1GDFTV..GDH201,223..IV5201712-202107

9167180814

main91671-80814

19 parts on this diagram · 4 diagrams in section
