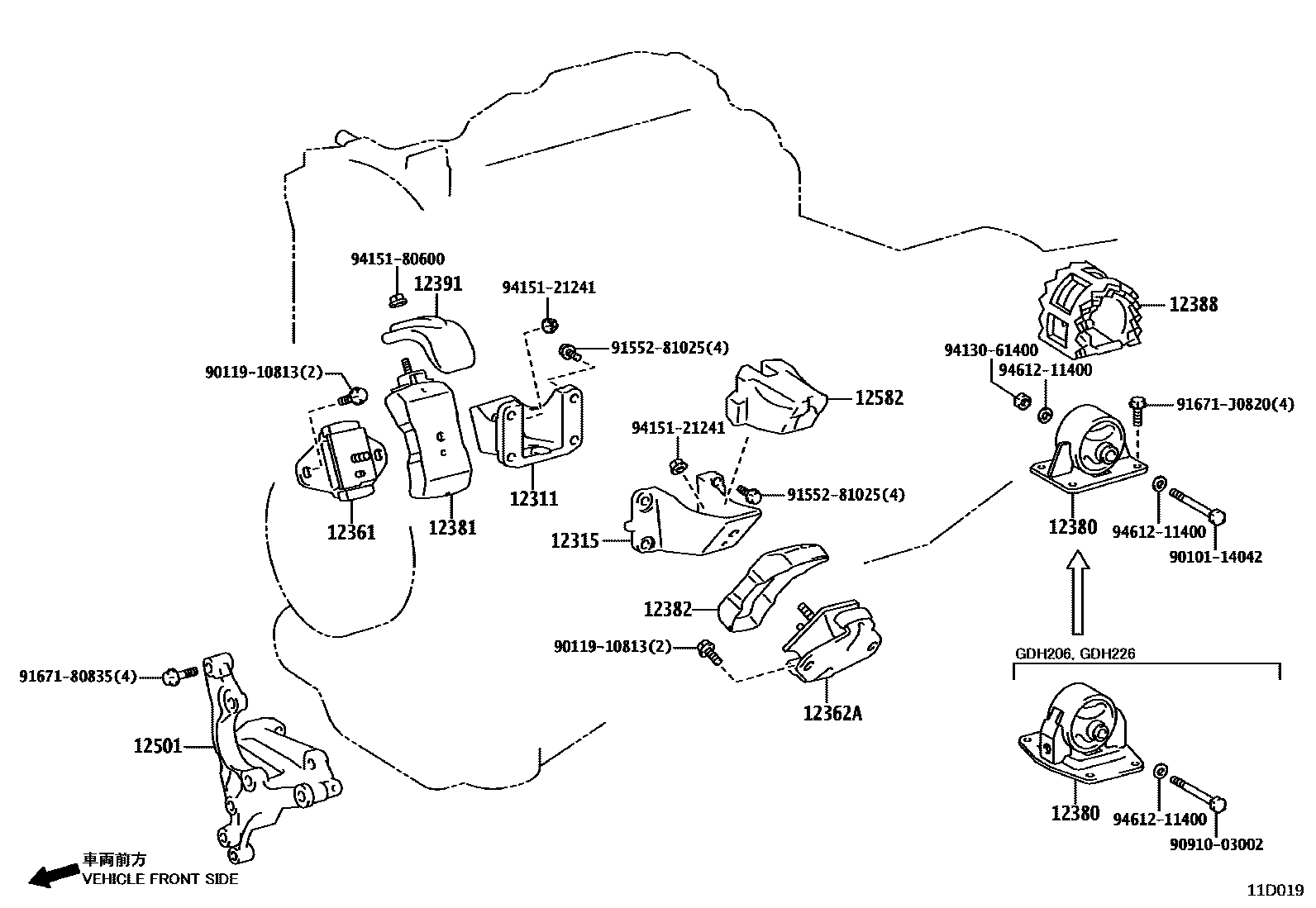

MOUNTING

0001 1 0002 1 0003 1 0004 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-11150i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH201..4D..SG..03S..CBU201712-202312

main12311-11160i1GDFTV..GDH206..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH206,226..02S,05S,06S,09S201712-202312

main12311-30071i1KDFTV..KDH20#,211,22#201312-201711

main12311-75101i2TRFE..TRH21#,22#;1TRFE..TRH200..SP..6FC;1TRFE..TRH200..03S..4FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..HRF..4FC..CBU;1TRFE..TRH200.201312-202312

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-11070i1GDFTV..GDH206..4D..SG..03S..CBU201712-202312

main12315-30061i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH201..4D..SG..03S..CBU201312-202312

main12315-30071i1KDFTV..KDH206201312-201711

main12315-75110i1TRFE..TRH200..5F201312-202312

main12315-75120i2TRFE..TRH216,219,226,228,229201312

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-11220i1GDFTV..GDH20#,211,22#201712-201809

sub12361-11221

main12361-11221i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201810-202312

main12361-30090i1KDFTV..KDH20#,211,22#201312-201711

main12361-30100i1KDFTV..KDH20#,211,22#201312-201711

main12361-75080i1TRFE..TRH200..5F201312-202312

main12361-75100i2TRFE..TRH21#,22#201312

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12361-75080i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201312-202312

main12362-11320i1GDFTV..GDH20#,211,22#201712-201809

sub12362-11321

main12362-11321i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201810-202312

12380INSULATOR ASSY, ENGINE MOUNTING, REAR

main12380-30010i1KDFTV..KDH201,211,22#201312-201711

main12380-30020i1GDFTV..GDH206..4D..SG..03S..CBU201312-202312

main12380-30030i1KDFTV..KDH206..5F201312-201711

main12380-75020i1TRFE..TRH200..5F201312-202107

main12380-75040i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201501-202312

12381STABILIZER, ENGINE MOUNTING

main12381-11040i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206201712-202312

main12381-30040i1KDFTV..KDH20#,211,22#201312-201711

main12381-67010i1KDFTV..KDH20#,211,22#201312-201711

main12381-75030i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201312-202312

main12381-75080i2TRFE..TRH21#,22#201312

12382STABILIZER, ENGINE MOUNTING, LH

main12381-75030i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201312-202312

main12381-75091i2TRFE..TRH21#,22#201312

main12382-11010i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

12388STOPPER, ENGINE MOUNTING BRACKET, REAR

main12388-67011i1KDFTV..KDH20#,211,22#201312-202312

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-11030i1GDFTV..GDH201,223..IV5201712-202312

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-11011i1GDFTV..GDH20#,211,22#201712-201811

sub12501-11012

main12501-11012i1GDFTV..GDH201,223..IV5201812-202312

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-11010i1GDFTV..GDH201,223..IV5201712-202312

9010114042

main90101-14042

9011910813

main90119-10813

9091003002

main90910-03002

9155281025

main91552-81025

9167180835

main91671-80835

91671J0820

main91671-J0820

9413061400

main94130-61400

9415121241

main94151-21241

9415180600

main94151-80600

9461211400

main94612-11400

21 parts on this diagram · 4 diagrams in section
