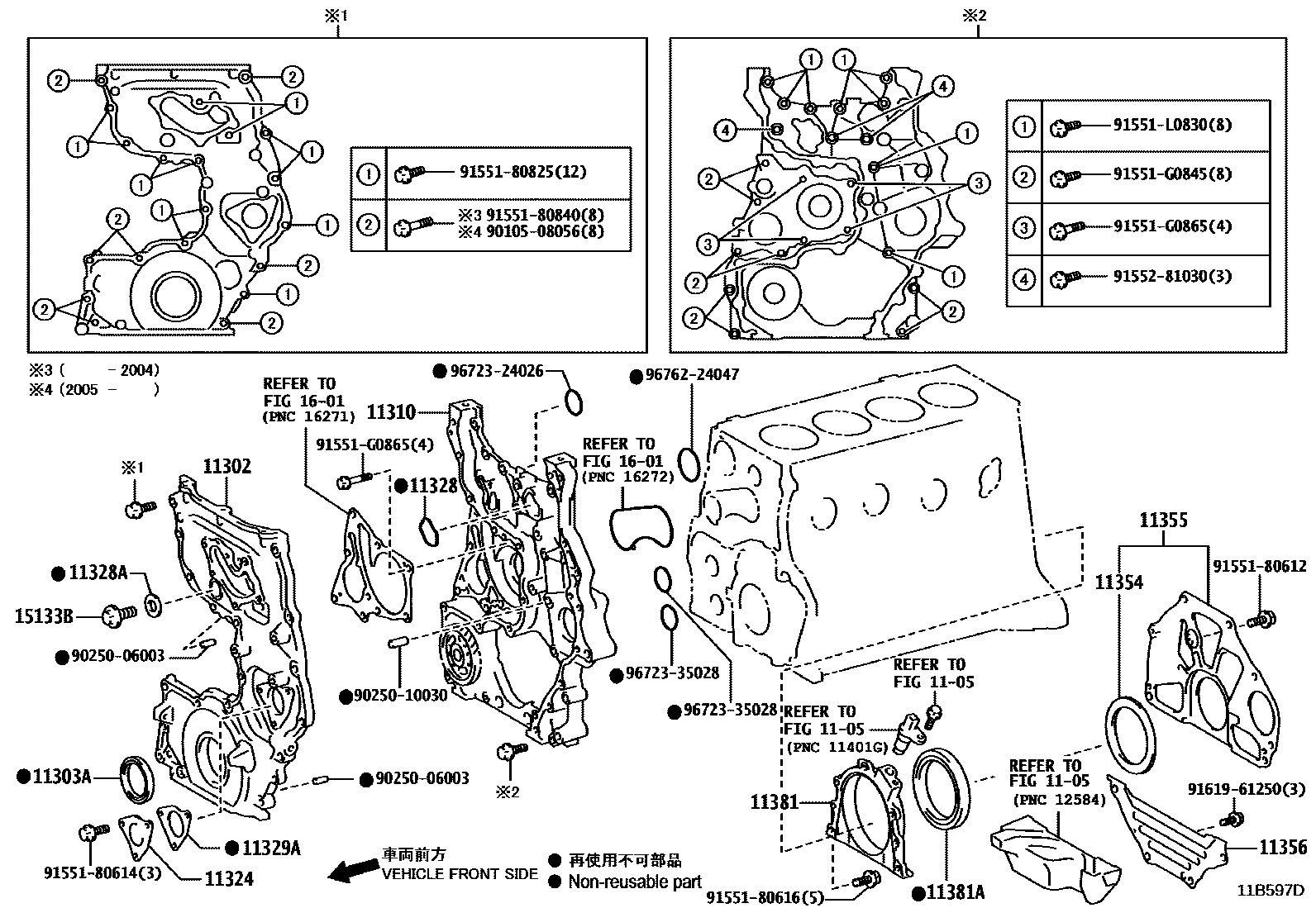

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1

1105

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-75065i1TRFE..TRH200201312-201406

sub91671-80840

main11310-75066i1TRFE..TRH200201406-201501

main11310-75073i2TRFE..TRH21#,22#201312-201406

sub91671-80840

main11310-75074i2TRFE..TRH21#,22#201406-201501

main11310-75080i1TRFE..TRH200201501-202010

main11310-75090i2TRFE..TRH21#,22#201501-202010

main11310-75120i2TRFE..TRH21#,22#202010

main11310-75130i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU202010-202312

main11321-11120i1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6201712-202306

main11321-35040i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU202307-202312

11303ASEAL, OIL(FOR CRANKSHAFT FRONT)

main90311-48029i1TRFE,2TRFE..TRH200,21#,22#201312-201410

main90311-48031i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201411-202312

main90311-50051i1KDFTV..KDH20#,211,22#201312-201711

11310COVER ASSY, TIMING CHAIN

main11310-11041i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

main11310-35120i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206202407-202501

main11310-35121i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206202501

11324PLATE, TIMING CHAIN COVER

main11324-11010i1GDFTV..GDH201,223..IV5201712-202107

main11324-75010i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC;1TRFE,2TRFE..TRH200,21#,22#..(COM,V1,WG)..(HRF,SMRF)..6FC201501

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-11070i1GDFTV..GDH201,223..IV5201712-202107

main11328-75030i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC;1TRFE,2TRFE..TRH200,21#,22#..(COM,V1,WG)..(HRF,SMRF)..6FC201501

11328AGASKET, TIMING BELT COVER, NO.1

main11328-11080i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206201911

main11328-38030i1GDFTV..GDH20#,211,22#201712-201910

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-11020i1GDFTV..GDH201,223..IV5201712-202107

11354SEAL, FLYWHEEL HOUSING DUST

main11354-0C010i2TRFE..TRH224..6FC..CBU;1TRFE,2TRFE..TRH200,21#,221,223,226,228,229..6FC201312-202104

main11354-30010i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206201712

main11354-75030i1TRFE..TRH200..V2..HRF..6FC;1TRFE..TRH200..4D..SG..03S..6FC..CBU201312-202312

main12145-75010i2TRFE..TRH21#,22#202204

11355PLATE, REAR END

main11355-11040i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

main11355-67011i1KDFTV..KDH20#,211,22#201312-201711

main11355-75021i1TRFE..TRH200..5F201312-202107

11356PLATE, REAR END, NO.2

main11356-30020i1KDFTV..KDH201..5F201312-201709

main11356-30021i1KDFTV..KDH201..5F201710-201711

main11356-30030i1KDFTV..KDH206..5F;1KDFTV..KDH201,211,22#..4FC201312-201711

main11356-67020i1KDFTV..KDH206..4FC201312-201603

main11356-67021i1KDFTV..KDH206..4FC201604-201711

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0K010i1KDFTV..KDH20#,211,22#201312-201711

main11381-11010i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206201712

main11381-67020i1KDFTV..KDH20#,211,22#201312-201711

main11381-75011i2TRFE..TRH21#,22#201312-201406

main11381-75012i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..03S..4FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..HRF..4FC..CBU;1TRFE..TRH200..SRF..(05S,06S,09S)..(4FC,6FC);1TRFE,2TRFE..TR201406

11381ASEAL, ENGINE REAR OIL

main90311-88005i1TRFE,2TRFE..TRH200,21#,22#201312-201410

main90311-88006i1TRFE..TRH200..5F201411-202107

main90311-95015i1GDFTV..GDH20#..SP;1GDFTV..GDH206..IV5;1GDFTV..GDH206..5D..03S;1GDFTV..GDH201..SRF..5D;1GDFTV..GDH201..V1..HRF..5D;1GDFTV..GDH201..SRF..4D..(06S,09S);1GDFTV..GDH206201712

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-38071i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU201712-202312

1601

9010508056

main90105-08056

9025006003

main90250-06003

9025010030

main90250-10030

9155180612

main91551-80612

9155180614

main91551-80614

9155180616

main91551-80616

9155180825

main91551-80825

9155180840

main91551-80840

91551G0845

main91551-G0845

91551G0865

main91551-G0865

91551L0830

main91551-L0830

9155281030

main91552-81030

9161961250

main91619-61250

9672324026

main96723-24026

9672335028

main96723-35028

9676224047

main96762-24047

31 parts on this diagram · 7 diagrams in section
