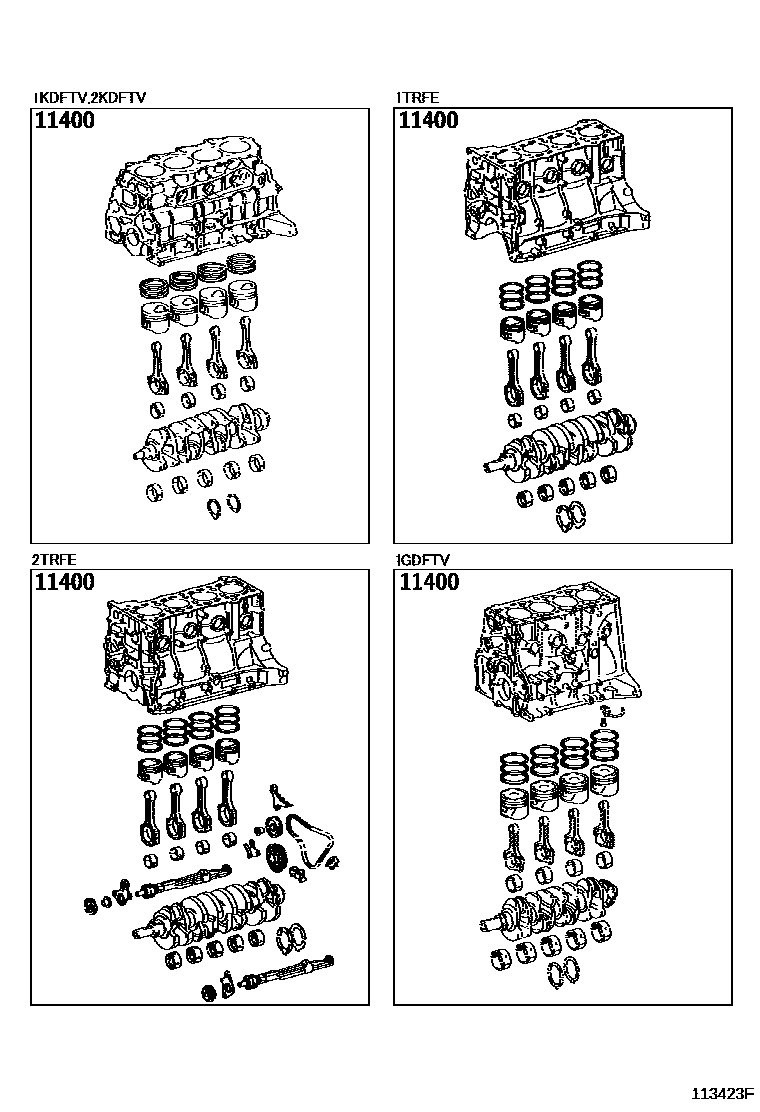

SHORT BLOCK ASSEMBLY

11400BLOCK ASSY, SHORT

main11400-11290i1GDFTV..GDH20#,211,22#201712-202008

sub11400-11310

main11400-11310i1GDFTV..GDH201..V2..HRF;1GDFTV..GDH201..HRF..4D..CBU;1GDFTV..GDH20#..4D..SG..03S..CBU202008-202312

main11400-30370i1KDFTV..KDH20#,211,22#201312-201411

sub11400-30440

sub11400-30520

main11400-30400i1KDFTV..KDH20#,211,22#201411-201711

sub11400-30440

sub11400-30520

main11400-75140i1TRFE..TRH200201312-201501

main11400-75550i2TRFE..TRH21#,22#201312-201405

sub11400-75551

main11400-75551i2TRFE..TRH21#,22#201405-201501

sub11400-75381

main11400-75590i1TRFE..TRH200..SP..6FC;1TRFE..TRH200..5D..03S..6FC;1TRFE..TRH200..V1..HRF..6FC;1TRFE..TRH200..SRF..(05S,06S,09S)..6FC202010-202312

main11400-75590i1TRFE..TRH200..6FC201501-202107

main11400-75600i2TRFE..TRH21#,22#202005

main11400-75610i2TRFE..TRH21#,22#201501-202005

sub11400-75600

1 parts on this diagram · 1 diagram in section
