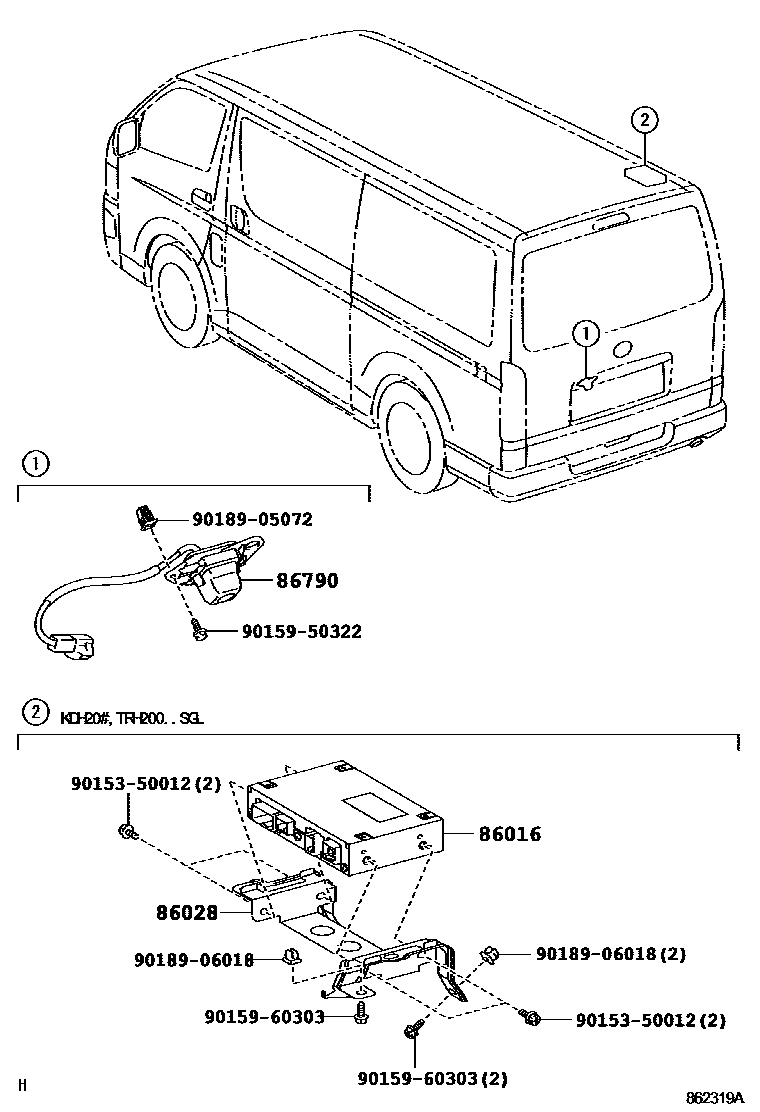

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1 0005 1

86016PARTS SET, TELEVISION TUNER

main86016-50010iKDH200,205,TRH200..SGL200408-200512

86028BRACKET SUB-ASSY, TELEVISION

main86028-26030iKDH200,205,TRH200..SGL200408-200512

86790CAMERA ASSY, TELEVISION

main86790-26050iKDH222,227,TRH223,224,228,229..GC,GL200501-200512

sub86790-26051

main86790-26050iKDH20#,211,223,TRH200,21#..GL,SGL200408-201008

sub86790-26051

main86790-26060iTRH229..CBU;KDH20#,211,22#,TRH200,21#,221,223,224,226,228..HRF,SMRF,SRF201205

9015350012

main90153-50012

9015950322

main90159-50322

9015960303

main90159-60303

9018905072

main90189-05072

9018906018

main90189-06018

8 parts on this diagram · 3 diagrams in section
