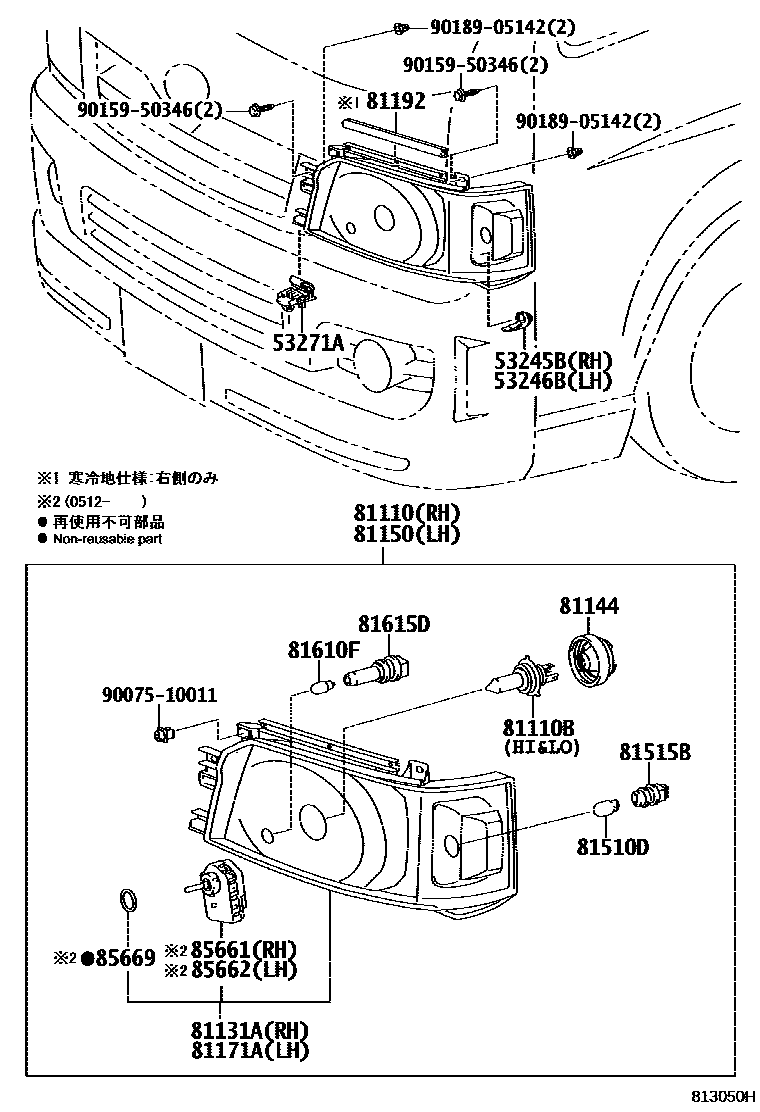

HEADLAMP

0001 1 0002 1������������� 0003 1����������������� 0004 1�����������������

53245BBRACKET, HEADLAMP, RH

main53245-26040iKDH20#,211,22#,TRH200,21#,22#200408-201312

53246BBRACKET, HEADLAMP, LH

main53246-26020iKDH20#,211,22#,TRH200,21#,22#200408-201312

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060×2iKDH20#,211,22#,TRH200,21#,22#200408-201008

81110HEADLAMP ASSY, RH

main81110-26390iKDH20#,TRH200200408-200512

main81110-26430iKDH22#,TRH21#,22#200408-200512

main81110-26470iKDH20#,TRH200200512-201008

main81110-26480iKDH211,22#,TRH21#,22#200512-201008

sub90075-10011

main81110-26550iKDH20#,TRH200201008-201312

main81110-26560iKDH211,22#,TRH21#,22#201008-201312

sub81110-26A50

main00000-00000iKDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,TRH200..SG..DX..CBU201205-201312

main81110-26530iKDH20#,TRH200200709-200812

main81110-26540iKDH211,22#,TRH21#,22#200709-200812

main81110-26660iKDH22#,TRH214,219,221,223,226,228..(06S,10S,15S)..DX201205-201312

sub81110-26A60

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

main90981-13046×2iTRH221,226..02S;KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU201008-201312

81131AUNIT, HEADLAMP, RH

main81130-26390iKDH20#,TRH200200408-200512

main81130-26430iKDH22#,TRH21#,22#200408-200512

main81130-26470iKDH20#,TRH200200512-201008

main81130-26480iKDH211,22#,TRH21#,22#200512-201008

main81130-26550iKDH20#,TRH200201008-201312

main81130-26560iKDH211,22#,TRH21#,22#201008-201312

main81130-26530iKDH20#,TRH200200709-200812

main81130-26540iKDH211,22#,TRH21#,22#200709-200812

main81145-26650iKDH20#,TRH200..SGL201008-201312

main81145-26660iTRH221,226..02S;KDH211,223,TRH21#,223,224,228,229..(GC,GL,SGL)..CBU201008-201312

81144COVER, HEADLAMP, NO.1

main90075-65002×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

81150HEADLAMP ASSY, LH

main81150-26390iKDH20#,TRH200200408-200512

main81150-26430iKDH22#,TRH21#,22#200408-200512

main81150-26470iKDH20#,TRH200200512-201008

main81150-26480iKDH211,22#,TRH21#,22#200512-201008

sub90075-10011

main81150-26550iKDH20#,TRH200201008-201312

main81150-26560iKDH211,22#,TRH21#,22#201008-201312

main00000-00000iKDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,TRH200..SG..DX..CBU201205-201312

main81150-26530iKDH20#,TRH200200709-200812

main81150-26540iKDH211,22#,TRH21#,22#200709-200812

main81150-26660iKDH22#,TRH214,219,221,223,226,228..(06S,10S,15S)..DX201205-201312

81171AUNIT, HEADLAMP, LH

main81170-26390iKDH20#,TRH200200408-200512

main81170-26430iKDH22#,TRH21#,22#200408-200512

main81170-26470iKDH20#,TRH200200512-201008

main81170-26480iKDH211,22#,TRH21#,22#200512-201008

main81170-26550iKDH20#,TRH200201008-201312

main81170-26560iKDH211,22#,TRH21#,22#201008-201312

main81170-26530iKDH20#,TRH200200709-200812

main81170-26540iKDH211,22#,TRH21#,22#200709-200812

main81185-26650iKDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,TRH200..SG..DX..CBU201205-201312

main81185-26660iKDH22#,TRH214,219,221,223,226,228..(06S,10S,15S)..DX201205-201312

81192SEAL, HEADLAMP

main81192-26010iKDH20#,22#200408-200709

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2iKDH20#,211,22#,TRH200,21#,22#200408-201008

main90981-15021×2iKDH20#,211,22#,TRH200,21#,22#201008-201312

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

81615DSOCKET, CLEARANCE LAMP

main90075-60046×2iKDH20#,22#,TRH200,21#,22#200408-200512

main90075-60077×2iKDH20#,211,22#,TRH200,21#,22#200512-201312

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iKDH20#,211,22#,TRH200,21#,22#200512-201312

main85661-12020iTRH221,226..02S;KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU201008-201312

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iKDH20#,211,22#,TRH200,21#,22#200512-201312

main85661-12020iTRH221,226..02S;KDH20#,211,223,TRH200,21#,223,224,228,229..(GC,GL,SGL)..CBU201008-201312

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iKDH20#,211,22#,TRH200,21#,22#200512-201312

9007510011

main90075-10011

9015950346

main90159-50346

9018905142

main90189-05142

20 parts on this diagram · 4 diagrams in section
