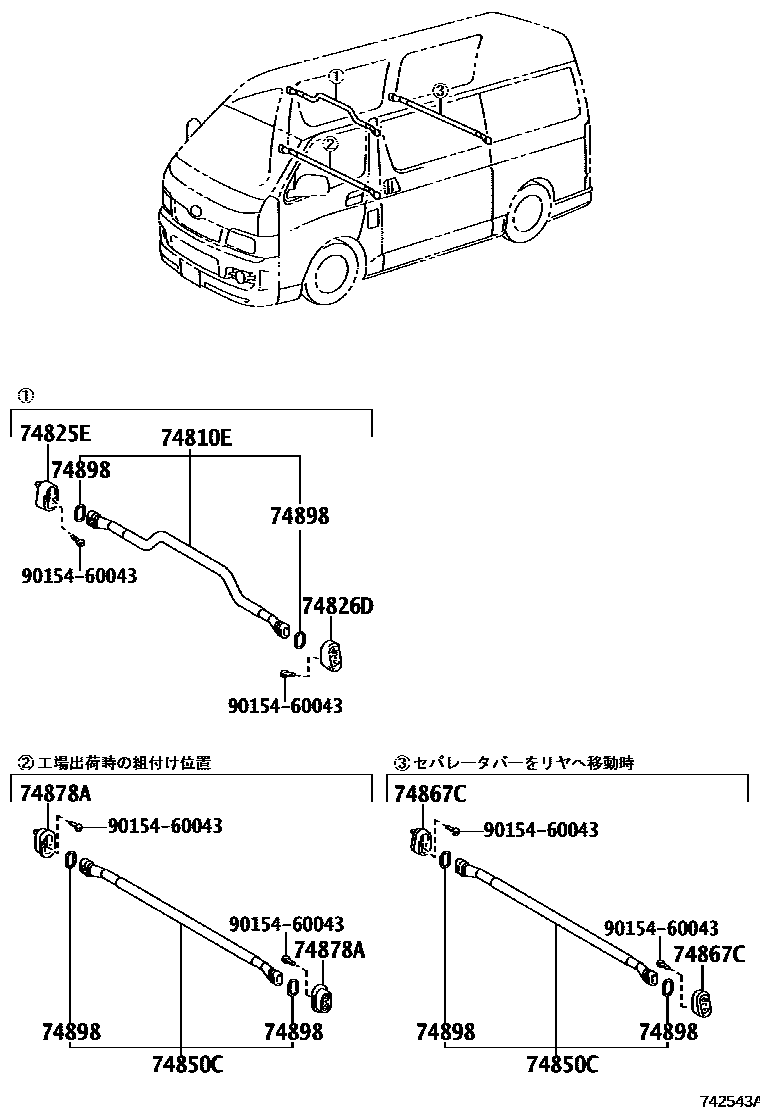

SEPARATOR & SEPARATOR CURTAIN

0001 1������ ��� 0003 1������ ��� 0004 1������ ����

74810EBAR ASSY, SEPARATOR

main74850-26070-B0iKDH200,201,206,TRH200..HRF..CBU200408-201008

GRAY,TRIM1#

main74850-26070-B2iKDH20#,TRH200..HRF..CBU201008-201312

LT.GRAY,TRIM1#

main74850-26090-B0iKDH220,221,225,TRH221,226..06S200501-201008

GRAY,TRIM1#

main74850-26090-B2iKDH221,TRH221,226..06S201008-201312

LT.GRAY,TRIM1#

main74850-26180-B0iKDH211,TRH211,216200709-201008

GRAY,TRIM1#

main74850-26180-B2iKDH211,TRH211,216201008-201312

LT.GRAY,TRIM1#

74825EBRACKET, SEPARATOR, RH

main74825-26020-B0supersedes 74825-26040-B0iKDH211,TRH211,216200709-201312

LT.GRAY,TRIM1#

74826DBRACKET, SEPARATOR, LH

main74825-26040-B0iKDH200,201,206,220,221,225,TRH200,221,226..HRF..06S..CBU200408-201312

LT.GRAY,TRIM1#

main74826-26070-B0iKDH211,TRH211,216200709-201312

LT.GRAY,TRIM1#

main74826-26080-B0iKDH220,221,225,TRH221,226..06S200501-201312

74850CBAR ASSY, SEPARATOR

main74850-26060-B0iKDH200,201,TRH200..V1..SP;KDH205,206..(03S,05S,06S)..CBU;KDH200,201,TRH200..SG..(03S,05S,06S)..CBU200408-201008

GRAY,TRIM1#

main74850-26060-B2iKDH201..V1..SP;TRH200..(05S,06S)..CBU;KDH206..(03S,05S,06S)..CBU;KDH201..SG..(03S,05S,06S)..CBU201008-201312

LT.GRAY,TRIM1#

main74850-26080-B0iKDH211,220,221,225,TRH211,216,221,226..05S,06S200501-201008

GRAY,TRIM1#

main74850-26080-B3iKDH211,221,TRH211,216,221,226..05S,06S201008-201312

LT.GRAY,TRIM1#

main74850-26100-B0iKDH20#,TRH200..09S200408-200801

main74850-26101-B0iKDH20#,TRH200..09S200802-201008

main74850-26101-B2iKDH20#,TRH200..09S201008-201312

main74850-26160-B0iKDH20#,TRH200..09S200408-201008

main74850-26160-B2iKDH20#,TRH200..09S201008-201312

74867CBRACKET, SEPARATOR BAR, LOWER

main74867-26090-B0×2iKDH20#,TRH200..09S201008-201312

LT.GRAY,TRIM1#

main74867-26090-B1×2iKDH20#,TRH200..09S200408-201008

GRAY,TRIM1#

main74867-26110-B0iKDH20#,211,TRH200,211,216..SGL200408-201312

main74867-26120-B0×2iKDH20#,220,221,225,TRH200,221,226..06S..CBU200408-201008

GRAY,TRIM1#

main74867-26120-B2×2iKDH20#,221,TRH200,221,226..06S..CBU201008-201312

LT.GRAY,TRIM1#

main74879-26040-B0iKDH20#,211,TRH200,211,216..SGL200408-201312

74878ABRACKET, SEPARATOR BAR, LOWER

main74867-26080-B0iKDH20#..5D..03S..4FC201008-201312

main74867-26080-B1iKDH222,223,227,TRH214,219,223,228..DX200408-201008

main74867-26130-B0iKDH222,223,227,TRH214,219,223,228..DX200408-201008

main74867-26130-B1iKDH223,TRH214,219,223,228..DX201008-201312

74898PAD, SEPARATOR BAR

main74898-26020×4iKDH200,201,TRH200..V1..SP;KDH205,206..SRF..(03S,05S,06S);KDH200,201,TRH200..SRF..SG..(03S,05S,06S)200412

9015460043

main90154-60043

8 parts on this diagram · 3 diagrams in section
