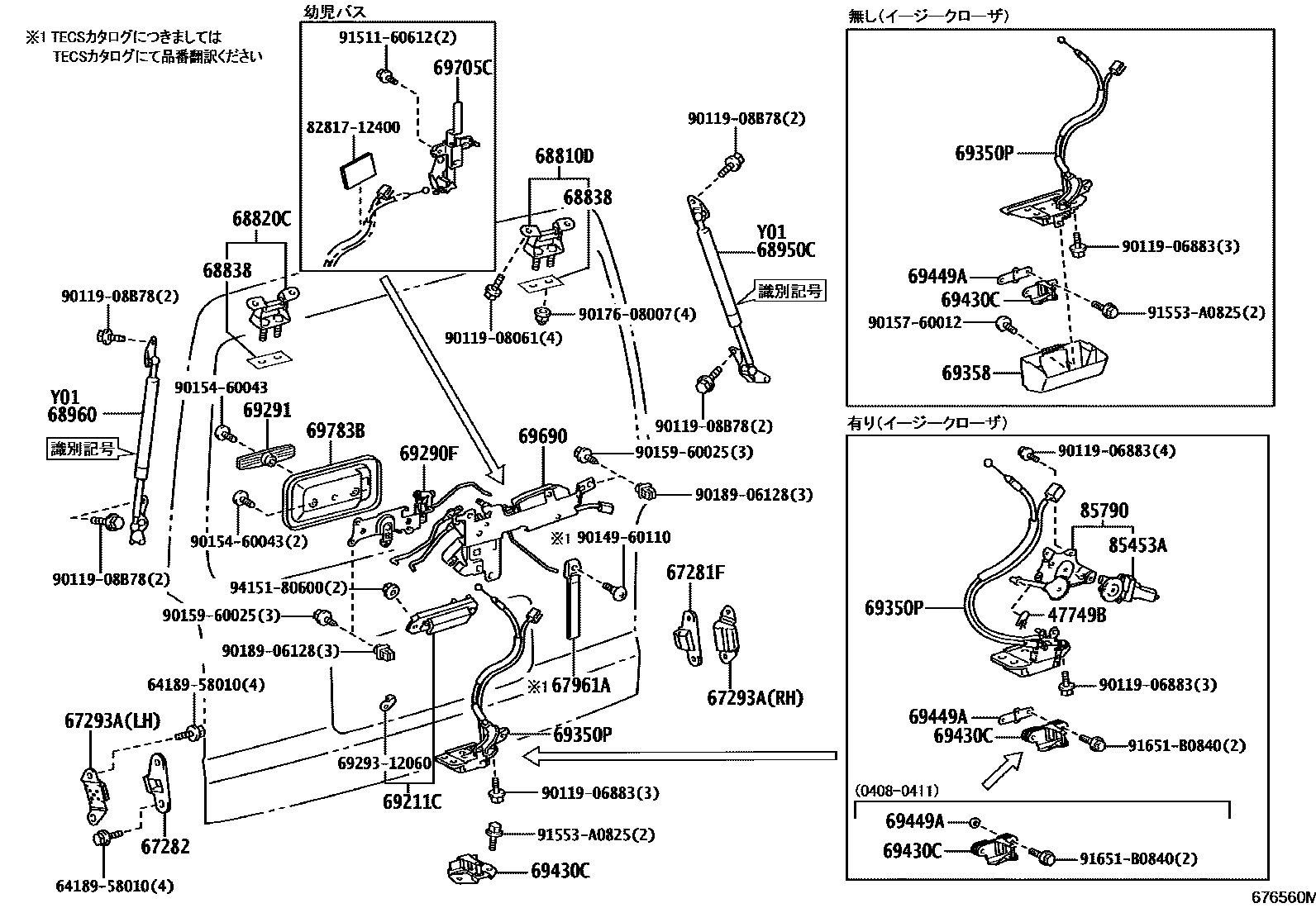

BACK DOOR LOCK & HINGE

0001 1 0002 1

47749BCLIP, PIN HOLD

main47749-26010iTRH221,226..SHRF;KDH20#,222,223,227,TRH200,223,224,228,229..IV5200408-201312

67281PLATE, BACK DOOR STOPPER

main67281-26031iTRH221,226..SHRF201008

main67282-26021iTRH221,226..SHRF201008

67281FSTOPPER, BACK DOOR, LOWER

main67281-28010iKDH20#,211,22#,TRH200,21#,22#..HRF,SMRF,SRF200408-201312

main69403-26060iTRH221,226..SHRF201008-201312

67282STOPPER, BACK DOOR, NO.1

main67282-28010iKDH20#,211,22#,TRH200,21#,22#..HRF,SMRF,SRF200408-201312

main69404-26010iTRH221,226..SHRF201008-201312

67293ACUSHION, BACK DOOR STOPPER

main67293-28020iKDH20#,211,22#,TRH200,21#,22#..HRF,SMRF,SRF200408-201312

main67294-28010iKDH20#,211,22#,TRH200,21#,22#..HRF,SMRF,SRF200408-201312

main69401-26030iTRH221,226..SHRF201008-201312

main69402-26010iTRH221,226..SHRF201008-201312

67961ASTRAP, BACK DOOR PULL

main67961-26050-B0iKDH201,206;TRH214,219..GL;KDH222,227,TRH223,224,228,229..IV5;KDH200,205,211,220,221,223,225,TRH200,211,216,221,226..HRF,SMRF200408-201008

GRAY,TRIM1#

main67961-26050-B1iKDH201,TRH200..SG;KDH201,TRH200..V1..SP;KDH206,211,22#,TRH21#,22#201008-201312

DK.GRAY,TRIM1#

68810DHINGE ASSY, BACK DOOR, RH

main68810-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

sub68810-26011

68820CHINGE ASSY, BACK DOOR, LH

main68820-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

sub68820-26011

68838PAD, BACK DOOR HINGE, NO.1

main68838-26030×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

68950CSTAY ASSY, BACK DOOR, RH

main68950-26020supersedes 68950-26011iTRH21#200408-200610

main68950-26021supersedes 68950-26011iTRH21#200611-200701

main68950-26022supersedes 68950-26016iKDH211,TRH21#200702-200910

main68950-26023supersedes 68950-26016iKDH211,TRH21#200911-201007

main68950-26024supersedes 68950-26016iKDH211,TRH21#201008-201206

main68950-26025supersedes 68950-26016iKDH211,TRH21#201206-201209

main68950-26026supersedes 68950-26016iKDH211,TRH21#201210-201312

main68950-26040supersedes 68950-26031iKDH222,227,TRH223,224,228,229..CBU200501-200610

main68950-26041supersedes 68950-26031iKDH222,227,TRH223,224,228,229..CBU200611-200701

main68950-26042supersedes 68950-26032iKDH222,223,227,TRH223,224,228,229..CBU200702-200910

main68950-26043supersedes 68950-26036iKDH223,TRH223,224,228,229..CBU200911-201007

main68950-26044supersedes 68950-26036iKDH223,TRH223,224,228,229..CBU201008-201102

main68950-26045supersedes 68950-26036iKDH223,TRH223,224,228,229..CBU201103-201209

main68950-26046supersedes 68950-26036iKDH223,TRH223,224,228,229..CBU201210-201312

sub68950-26047

main68950-26050supersedes 68950-26191iKDH205..CBU;KDH200,TRH200..V1..SP;KDH200,TRH200..SRF..SG200510-200512

sub68950-26051

main68950-26080supersedes 68950-26070iKDH205..CBU;KDH200,TRH200..V1..SP;KDH200,TRH200..SRF..SG200408-200508

sub68950-26081

main68950-26100supersedes 68950-26090iKDH20#,TRH200..V1..SP200408-200508

sub68950-26101

main68950-26160supersedes 68950-26151iKDH220,225,TRH221,226;KDH222,227,TRH223,224,228,229..IV5200501-200610

main68950-26161supersedes 68950-26151iKDH220,225,TRH221,226;KDH222,227,TRH223,224,228,229..IV5200611-200701

main68950-26162supersedes 68950-26152iKDH220,221,225,TRH221,226;KDH222,223,227,TRH223,224,228,229..IV5200702-200910

main68950-26163supersedes 68950-26155iKDH221,TRH221,226;KDH223,TRH223,224,228,229..IV5200911-201007

main68950-26164supersedes 68950-26155iKDH221,TRH221,226..HRF;KDH223,TRH223,224,228,229..IV5201008-201102

main68950-26165supersedes 68950-26155iKDH221,TRH221,226..HRF;KDH223,TRH223,224,228,229..IV5201103-201209

main68950-26166supersedes 68950-26156iKDH221,TRH221,226..HRF;KDH223,TRH223,224,228..IV5201210-201312

sub68950-26167

main68950-26180supersedes 68950-26170iKDH20#,TRH200..HRF200408-200508

sub68950-26181

main68950-26200supersedes 68950-26190iKDH205..CBU;KDH200,TRH200..V1..SP;KDH200,TRH200..SRF..SG200508-200610

main68950-26201supersedes 68950-26191iKDH205..CBU;KDH200,TRH200..V1..SP;KDH200,TRH200..SRF..SG200611-200701

main68950-26202supersedes 68950-26192iKDH205,206..SRF;KDH200,201,TRH200..V1..SP;KDH200,201,TRH200..SRF..SG200702-200910

main68950-26203supersedes 68950-26197iKDH206..SRF;KDH201,TRH200..V1..SP;KDH201,TRH200..SRF..SG200911-201007

main68950-26204supersedes 68950-26197iKDH206..SRF;KDH201,TRH200..V1..SP;KDH201,TRH200..SRF..SG201008-201012

main68950-26205supersedes 68950-26197iKDH206..SRF;KDH201,TRH200..V1..SP;KDH201,TRH200..SRF..SG201101-201209

main68950-26206supersedes 68950-26197iKDH206..SRF;KDH201,TRH200..V1..SP;KDH201,TRH200..SRF..SG201210-201312

sub68950-26207

main68950-26220supersedes 68950-26210iKDH20#,TRH200..V1..SP200508-200610

main68950-26221supersedes 68950-26211iKDH20#,TRH200..V1..SP200611-200701

main68950-26222supersedes 68950-26212iKDH20#,TRH200..V1..SP200702-200910

main68950-26223iKDH20#,TRH200..V1..SP200911-201008

sub68950-26224

main68950-26225iKDH20#,TRH200..V1..SP201008-201205

main68950-26226iKDH20#,TRH200..V1..SP201206-201209

main68950-26227supersedes 68950-26217iKDH20#,TRH200..V1..SP201210-201312

sub68950-26228

main68950-26230supersedes 68950-26191iKDH205..CBU;KDH200,TRH200..V1..SP;KDH200,TRH200..SRF..SG200512-200610

main68950-26231supersedes 68950-26191iKDH205..CBU;KDH200,TRH200..V1..SP;KDH200,TRH200..SRF..SG200611-200701

main68950-26232supersedes 68950-26192iKDH205,206..SRF;KDH200,201,TRH200..V1..SP;KDH200,201,TRH200..SRF..SG200702-200910

main68950-26233supersedes 68950-26197iKDH206..SRF;KDH201,TRH200..V1..SP;KDH201,TRH200..SRF..SG200911-201007

main68950-26234supersedes 68950-26197iKDH206..SRF;KDH201,TRH200..V1..SP;KDH201,TRH200..SRF..SG201008-201012

main68950-26235supersedes 68950-26197iKDH206..SRF;KDH201,TRH200..V1..SP;KDH201,TRH200..SRF..SG201101-201209

main68950-26236supersedes 68950-26197iKDH206..SRF;KDH201,TRH200..V1..SP;KDH201,TRH200..SRF..SG201210-201312

sub68950-26237

main68950-26260supersedes 68950-26250iKDH20#,TRH200..HRF200508-200610

main68950-26261supersedes 68950-26251iKDH20#,TRH200..HRF200611-200701

main68950-26262supersedes 68950-26252iKDH20#,TRH200..HRF200702-200910

main68950-26263supersedes 68950-26256iKDH20#,TRH200..HRF200911-201007

main68950-26264supersedes 68950-26256iKDH20#,TRH200..HRF201008-201206

main68950-26265supersedes 68950-26256iKDH20#,TRH200..HRF201206-201209

main68950-26266supersedes 68950-26256iKDH20#,TRH200..HRF201210-201312

sub68950-26267

main68950-26286supersedes 68950-26277iTRH221,226..SHRF201008-201209

main68950-26287supersedes 68950-26277iTRH221,226..SHRF201210-201312

68960STAY ASSY, BACK DOOR, LH

main68960-26020supersedes 68960-26011iTRH21#200408-200610

main68960-26021supersedes 68960-26011iTRH21#200611-200701

main68960-26022supersedes 68960-26016iKDH211,TRH21#200702-200910

main68960-26023supersedes 68960-26016iKDH211,TRH21#200911-201007

main68960-26024supersedes 68960-26016iKDH211,TRH21#201008-201206

main68960-26025supersedes 68960-26016iKDH211,TRH21#201206-201209

main68960-26026supersedes 68960-26016iKDH211,TRH21#201210-201312

main68960-26040supersedes 68960-26031iKDH222,227,TRH223,224,228,229..CBU200501-200610

main68960-26041supersedes 68960-26031iKDH222,227,TRH223,224,228,229..CBU200611-200701

main68960-26042supersedes 68960-26032iKDH222,223,227,TRH223,224,228,229..CBU200702-200910

main68960-26043supersedes 68960-26036iKDH223,TRH223,224,228,229..CBU200911-201007

main68960-26044supersedes 68960-26036iKDH223,TRH223,224,228,229..CBU201008-201102

main68960-26045supersedes 68960-26036iKDH223,TRH223,224,228,229..CBU201103-201209

main68960-26046supersedes 68960-26036iKDH223,TRH223,224,228,229..CBU201210-201312

sub68960-26047

main68960-26050supersedes 68960-26191iKDH205..CBU;KDH200,TRH200..V1..SP;KDH200,TRH200..SRF..SG200510-200512

sub68960-26051

main68960-26080supersedes 68960-26070iKDH205..CBU;KDH200,TRH200..V1..SP;KDH200,TRH200..SRF..SG200408-200508

sub68960-26081

main68960-26100supersedes 68960-26090iKDH20#,TRH200..V1..SP200408-200508

sub68960-26101

main68960-26160supersedes 68960-26151iKDH220,225,TRH221,226;KDH222,227,TRH223,224,228,229..IV5200501-200610

main68960-26161supersedes 68960-26151iKDH220,225,TRH221,226;KDH222,227,TRH223,224,228,229..IV5200611-200701

main68960-26162supersedes 68960-26152iKDH220,221,225,TRH221,226;KDH222,223,227,TRH223,224,228,229..IV5200702-200910

main68960-26163supersedes 68960-26155iKDH221,TRH221,226;KDH223,TRH223,224,228,229..IV5200911-201007

main68960-26164supersedes 68960-26155iKDH221,TRH221,226..HRF;KDH223,TRH223,224,228,229..IV5201008-201102

main68960-26165supersedes 68960-26155iKDH221,TRH221,226..HRF;KDH223,TRH223,224,228,229..IV5201103-201209

main68960-26166supersedes 68960-26156iKDH221,TRH221,226..HRF;KDH223,TRH223,224,228..IV5201210-201312

sub68960-26167

main68960-26180supersedes 68960-26170iKDH20#,TRH200..HRF200408-200508

sub68960-26181

main68960-26200supersedes 68960-26190iKDH205..CBU;KDH200,TRH200..V1..SP;KDH200,TRH200..SRF..SG200508-200610

main68960-26201supersedes 68960-26191iKDH205..CBU;KDH200,TRH200..V1..SP;KDH200,TRH200..SRF..SG200611-200701

main68960-26202supersedes 68960-26192iKDH205,206..SRF;KDH200,201,TRH200..V1..SP;KDH200,201,TRH200..SRF..SG200702-200910

main68960-26203supersedes 68960-26197iKDH206..SRF;KDH201,TRH200..V1..SP;KDH201,TRH200..SRF..SG200911-201007

main68960-26204supersedes 68960-26197iKDH206..SRF;KDH201,TRH200..V1..SP;KDH201,TRH200..SRF..SG201008-201012

main68960-26205supersedes 68960-26197iKDH206..SRF;KDH201,TRH200..V1..SP;KDH201,TRH200..SRF..SG201101-201209

main68960-26206supersedes 68960-26197iKDH206..SRF;KDH201,TRH200..V1..SP;KDH201,TRH200..SRF..SG201210-201312

sub68960-26207

main68960-26220supersedes 68960-26210iKDH20#,TRH200..V1..SP200508-200610

main68960-26221supersedes 68960-26211iKDH20#,TRH200..V1..SP200611-200701

main68960-26222supersedes 68960-26212iKDH20#,TRH200..V1..SP200702-200910

main68960-26223supersedes 68960-26217iKDH20#,TRH200..V1..SP200911-201008

sub68960-26224

main68960-26225iKDH20#,TRH200..V1..SP201008-201205

main68960-26226iKDH20#,TRH200..V1..SP201206-201209

main68960-26227supersedes 68960-26217iKDH20#,TRH200..V1..SP201210-201312

sub68960-26228

main68960-26230supersedes 68960-26191iKDH205..CBU;KDH200,TRH200..V1..SP;KDH200,TRH200..SRF..SG200512-200610

main68960-26231supersedes 68960-26191iKDH205..CBU;KDH200,TRH200..V1..SP;KDH200,TRH200..SRF..SG200611-200701

main68960-26232supersedes 68960-26192iKDH205,206..SRF;KDH200,201,TRH200..V1..SP;KDH200,201,TRH200..SRF..SG200702-200910

main68960-26233supersedes 68960-26197iKDH206..SRF;KDH201,TRH200..V1..SP;KDH201,TRH200..SRF..SG200911-201007

main68960-26234supersedes 68960-26197iKDH206..SRF;KDH201,TRH200..V1..SP;KDH201,TRH200..SRF..SG201008-201012

main68960-26235supersedes 68960-26197iKDH206..SRF;KDH201,TRH200..V1..SP;KDH201,TRH200..SRF..SG201101-201209

main68960-26236supersedes 68960-26197iKDH206..SRF;KDH201,TRH200..V1..SP;KDH201,TRH200..SRF..SG201210-201312

sub68960-26237

main68960-26260supersedes 68960-26250iKDH20#,TRH200..HRF200508-200610

main68960-26261supersedes 68960-26251iKDH20#,TRH200..HRF200611-200701

main68960-26262supersedes 68960-26252iKDH20#,TRH200..HRF200702-200910

main68960-26263supersedes 68960-26256iKDH20#,TRH200..HRF200911-201007

main68960-26264supersedes 68960-26256iKDH20#,TRH200..HRF201008-201206

main68960-26265supersedes 68960-26256iKDH20#,TRH200..HRF201206-201209

main68960-26266supersedes 68960-26256iKDH20#,TRH200..HRF201210-201312

sub68960-26267

main68960-26286supersedes 68960-26277iTRH221,226..SHRF201008-201209

main68960-26287supersedes 68960-26277iTRH221,226..SHRF201210-201312

69211CHANDLE, BACK DOOR OUTSIDE

main69023-26040iKDH20#,211,22#,TRH200,21#,22#200408-201312

69290FHANDLE ASSY, BACK DOOR INSIDE

main69290-26040-B0iKDH222,223,227,TRH223,228..GL;KDH20#,211,220,221,225,TRH200,21#,221,224,226,229200408-201008

GRAY,TRIM1#

main69290-26040-B1iKDH223,TRH223,228..GL;KDH20#,211,221,TRH200,21#,221,224,226,229201008-201312

DK.GRAY,TRIM1#

69291HANDLE ASSY, BACK DOOR INSIDE

main69291-95J00-B5iKDH222,223,227,TRH223,228..GL;KDH20#,211,220,221,225,TRH200,21#,221,224,226,229200408-201008

GRAY,TRIM1#

main69291-95J00-B6iKDH223,TRH223,228..GL;KDH20#,211,221,TRH200,21#,221,224,226,229201008-201312

DK.GRAY,TRIM1#

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-26120iKDH222,223,227,TRH214,219,22#..(HRF,SMRF)..(02S,10S,15S)..CBU200408-201309

main69350-26121iKDH223,TRH214,219,22#..(HRF,SMRF)..(02S,10S,15S)..CBU201310-201312

sub69350-26122

main69350-26130iKDH201,TRH200..V2..03S200408-201008

sub69350-26131

main69350-26140iKDH20#,TRH200..V1..SP201008-201312

sub69350-26141

69358PROTECTOR, BACK DOOR LOCK

main69358-26010iKDH201,TRH200..V2..03S200408-201008

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-26020iKDH20#,222,223,227,TRH200,223,224,228,229..IV5200408-201312

main69430-95J00iKDH222,223,227,TRH214,219,22#..(02S,10S,15S)..CBU200408-201312

main69430-95J01iKDH201,TRH200..V2..03S200408-201008

69449ASHIM, BACK DOOR LOCK STRIKER

main69449-26010iKDH201,206;KDH222,223,227,TRH223,224,228,229..IV5;KDH200,205,211,220,221,225,TRH200,211,216,221,226..(03S,05S,06S,09S)..CBU200408-201312

main69449-26020iKDH200,205,TRH200..IV5200411-201312

main69449-26030iKDH201,206;KDH222,223,227,TRH223,224,228,229..IV5;KDH200,205,211,220,221,225,TRH200,211,216,221,226..(03S,05S,06S,09S)..CBU200408-201312

main69449-95J00iKDH222,223,227,TRH223,224,228,229..IV5;KDH20#,211,220,221,225,TRH200,211,216,221,226..03S,05S,06S,09S200411-201312

mainC378322080×2iKDH20#,TRH200..IV5200408-200411

69690CONTROL ASSY, BACK DOOR REMOTE

main69690-26140iKDH223,TRH223,228..DX201205-201312

main69690-26150iTRH214,219;KDH20#,211,223,TRH200,211,216,223,224,228,229..GC,GL,SGL201205-201312

main69690-26180iKDH222,223,227,TRH223,228..DX200501-201205

main69690-26190iTRH229..IV5;KDH222,227..GL;KDH201,206,TRH200..DX;KDH200,205,220,221,225,TRH221,226200408-201312

69705CLINK SUB-ASSY, BACK DOOR LOCK CONTROL

main69705-26010iKDH222,227..DX200408-200709

69783BBEZEL, BACK DOOR INSIDE HANDLE

main69783-26010-B0iKDH20#,220,221,225,TRH200,214,219,221,226..DX..CBU200408-201008

GRAY,TRIM1#

main69783-26010-B1iKDH20#,221,TRH200,214,219,221,226..DX..CBU201008-201312

DK.GRAY,TRIM1#

85453AMOTOR, DOOR CONTROL

main85453-26040iTRH221,226..SHRF;KDH20#,222,223,227,TRH200,223,224,228,229..IV5200408-201312

85790MOTOR ASSY, BACK DOOR CLOSER

main85790-26040iKDH20#,TRH200..V1..SP201008-201312

6418958010CLAMP, BACK PANEL SILENCER

main64189-58010

6929312060HANDLE, BACK DOOR

main69293-12060

8281712400PROTECTOR, WIRING HARNESS, NO.1

main82817-12400

9011906883

main90119-06883

9011908061

main90119-08061

9011908B78

main90119-08B78

9014960110

main90149-60110

9015460043

main90154-60043

9015760012

main90157-60012

9015960025

main90159-60025

9017608007

main90176-08007

9018906128

main90189-06128

9151160612

main91511-60612

91553A0825

main91553-A0825

91651B0840

main91651-B0840

9415180600

main94151-80600

39 parts on this diagram · 2 diagrams in section
