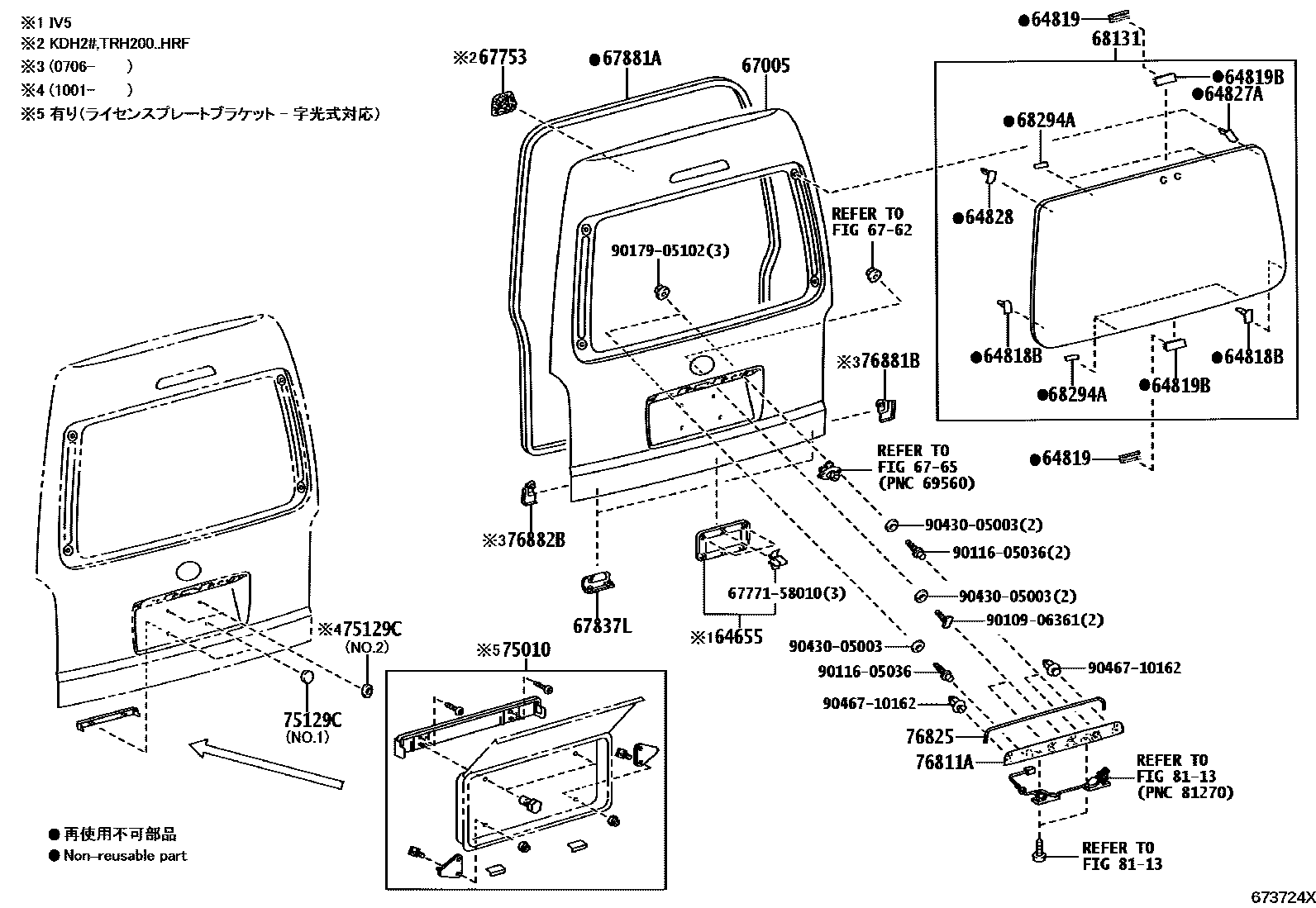

BACK DOOR PANEL & GLASS

0001 1������� 0002 1������

64655COVER, BACK DOOR CLOSER

main64655-26060-B0iKDH20#,222,223,227,TRH200,223,224,228,229..IV5200408-201008

GRAY,TRIM1#

main64655-26060-B1iKDH20#,223,TRH200,223,224,228,229..IV5201008-201312

DK.GRAY,TRIM1#

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-26050iKDH20#,211,22#,TRH200,21#,22#200408-201312

main64819-26050iKDH20#,211,22#,TRH200,21#,22#200408-201312

64819SPACER, BACK WINDOW GLASS, NO.2

main64819-26060×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-26010×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

64827ACLIP, BACK WINDOW GLASS, RH

main64827-26030iKDH211,22#,TRH21#,22#200408-201312

main64827-26040iKDH20#,TRH200200701-201312

64828CLIP, BACK WINDOW GLASS, LH

main64828-26030iKDH20#,211,22#,TRH200,21#,22#200408-201312

67005PANEL SUB-ASSY, BACK DOOR

main67005-26A10iKDH222,227,TRH223,224,228,229..IV5200501-200703

main67005-26A11iKDH222,223,227,TRH223,224,228,229..IV5200704-201205

main67005-26C91iKDH211,TRH21#200704-201205

main67005-26D30supersedes 67005-26D20iKDH22#,TRH221,223,226,228..DX200512-200703

main67005-26D31iKDH22#,TRH22#..HRF..CBU200704-201205

main67005-26E10iKDH20#,TRH200..V1..SP201008-201205

main67005-26F70supersedes 67005-26F60iKDH20#,TRH200..03S200512-200703

main67005-26F71iKDH200,205,206..03S;KDH201,TRH200..V1..03S200704-201205

main67005-26F90supersedes 67005-26F80iKDH20#,TRH200..SRF..(06S,09S)200512-200703

main67005-26F91iKDH20#,TRH200..V1..03S200704-201205

main67005-26J20supersedes 67005-26J10iKDH200,TRH200..HRF..CBU200512-200703

main67005-26J21iKDH200,201,206,TRH200..HRF..CBU200704-201205

main67005-26J40supersedes 67005-26J30iKDH20#,TRH200..IV5200512-200703

main67005-26J41iKDH20#,TRH200..IV5200704-201205

main67005-26K51iTRH221,226..SHRF201008-201205

main67005-26K52iTRH221,226..SHRF201205-201312

main67005-26A20iKDH222,227,TRH223,224,228,229..IV5200501-200512

main67005-26A21iKDH222,223,227,TRH223,224,228,229..IV5200704-201008

main67005-26A90supersedes 67005-26A80iKDH20#,TRH200..03S200408-200508

main67005-26B20supersedes 67005-26B10iKDH20#,TRH200..SGL200408-200508

main67005-26C40supersedes 67005-26C30iKDH200,TRH200..HRF..CBU200408-200508

main67005-26C60supersedes 67005-26C50iKDH20#,TRH200..IV5200408-200508

main67005-26D40iKDH222,227,TRH223,224,228,229..(GC,GL)..CBU200512-200703

main67005-26D41iKDH222,223,227,TRH223,224,228,229..(GC,GL)..CBU200704-201008

main67005-26E00supersedes 67005-26C90iTRH21#200408-200703

main67005-26E01iTRH214,219..DX200704-201205

main67005-26E02iTRH214,219..DX201205-201312

main67005-26E20iKDH222,227,TRH223,228..DX200501-200512

sub67005-26E21

main67005-26E30iKDH222,227,TRH223,228..DX200501-200512

main67005-26E31iKDH222,223,227,TRH223,228..DX200704-201205

main67005-26E32iKDH223,TRH223,228..DX201205-201312

main67005-26F50supersedes 67005-26F72iKDH20#,TRH200..V1..03S201205-201312

main67005-26G00supersedes 67005-26F90iKDH20#,TRH200..SGL200508-200703

main67005-26G01iKDH20#,TRH200..SGL200704-201008

main67005-26K60iKDH211,TRH21#..GL,SGL200709-201008

main67005-26P20supersedes 67005-26F72iKDH20#,TRH200..V1..03S201205-201312

main67005-26P31supersedes 67005-26E11iKDH20#,TRH200..V1..SP201205-201312

main67005-26P40supersedes 67005-26J22iKDH20#,TRH200..HRF..CBU201205-201312

main67005-26P51supersedes 67005-26J42iKDH20#,TRH200..IV5201205-201312

main67005-26P60supersedes 67005-26C92iKDH211,TRH21#201205-201312

main67005-26P70supersedes 67005-26D32iKDH22#,TRH22#..HRF..CBU201205-201312

main67005-26P81supersedes 67005-26A12iKDH223,TRH223,224,228..IV5201205-201312

main67005-26P90iTRH214,219..DX201205-201312

main67005-26Q00iKDH223,TRH223,228..DX201205-201312

6762

6765

67753COVER, BACK DOOR

main82719-26050-B0iKDH20#,TRH200..HRF200408-201312

LT.GRAY,TRIM1#

67837LSEAL, DOOR DUST PROOF

main67837-26040×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

67881AWEATHERSTRIP, BACK DOOR

main67881-26070iKDH20#,TRH200..SRF200408-200906

main67881-26071iKDH20#,TRH200..SRF200907-201203

main67881-26072iKDH20#,TRH200..SRF201204-201312

sub67881-26073

main67881-26080iKDH20#,TRH200..HRF200408-200906

main67881-26081iKDH20#,TRH200..HRF200907-201203

main67881-26082iKDH20#,TRH200..HRF201204-201312

sub67881-26083

main67881-26090iKDH211,TRH21#200408-200906

main67881-26091iKDH211,TRH21#200907-201203

main67881-26092iKDH211,TRH21#201204-201312

sub67881-26093

main67881-26100iKDH22#,TRH22#200501-200906

main67881-26101iKDH22#,TRH22#..HRF200907-201203

main67881-26102iKDH22#,TRH22#..HRF201204-201312

sub67881-26103

main67881-26111iTRH221,226..SHRF201008-201203

main67881-26112iTRH221,226..SHRF201204-201312

sub67881-26113

68131GLASS, BACK DOOR

main68105-26091iTRH224..IV5;KDH22#,TRH214,219,221,223,226,228..(06S,10S,15S)..DX201210-201312

sub68105-26093

main68105-26120iTRH221,226..02S;KDH211,222,223,227,TRH21#,223,224,228,229..GC,GL,SGL200501-201203

main68105-26121supersedes 68105-26091iTRH221,224,226..(02S,10S)..CBU;KDH211,223,TRH21#,223,228,229..GC,GL,SGL201204-201312

sub68105-26122

main68105-26200iKDH20#,TRH200..V1..SP200408-201312

main68105-26100supersedes 68105-26091iTRH224..IV5201205-201312

main68105-26130supersedes 68105-26121iTRH224..IV5200501-201205

sub68105-26131

main68105-26160supersedes 68105-26140iKDH20#,TRH200..(06S,09S)..CBU200408-201312

sub68105-26161

main68105-26170supersedes 68105-26140iKDH20#,TRH200..V1..03S200408-201312

sub68105-26171

main68105-26190supersedes 68105-26150iKDH20#,TRH200..(06S,09S)..CBU200408-201312

sub68105-26191

68294ADAM, BACK DOOR GLASS ADHESIVE

main68294-26030×4iKDH20#,211,22#,TRH200,21#,22#200408-201312

75010FRAME, REAR LICENSE PLATE

main75010-44010iKDH20#,211,22#,TRH200,21#,22#200408-201312

75129CCUSHION, REAR LICENCE PLATE

main75129-26010×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

main75129-26020×2iKDH20#,211,22#,TRH200,21#,22#201001-201312

76811AGARNISH, BACK DOOR, OUTSIDE

main76811-26130iTRH224..IV5201205-201312

main76811-26140iTRH221,226,229..02S,10S;KDH222,223,227,TRH223,228..IV5;KDH20#,211,TRH200,21#,224..(GC,GL,SGL)..CBU200408-201312

main76811-26150iKDH223..IV5;KDH20#,211,TRH200,21#..GL,SGL200408-201008

main76811-26160iKDH222,227,TRH223,228..GL..CBU200501-200512

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-26120iKDH20#,211,22#,TRH200,21#,22#200408-201312

76881BPROTECTOR, BACK DOOR LOWER MOULDING, RH

main76881-26010iKDH20#,211,22#,TRH200,21#,22#200706-201312

76882BPROTECTOR, BACK DOOR LOWER MOULDING, LH

main76882-26010iKDH20#,211,22#,TRH200,21#,22#200706-201312

8113

6777158010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-58010

9010906361

main90109-06361

9011605036

main90116-05036

9017905102

main90179-05102

9043005003

main90430-05003

9046710162

main90467-10162

27 parts on this diagram · 2 diagrams in section
