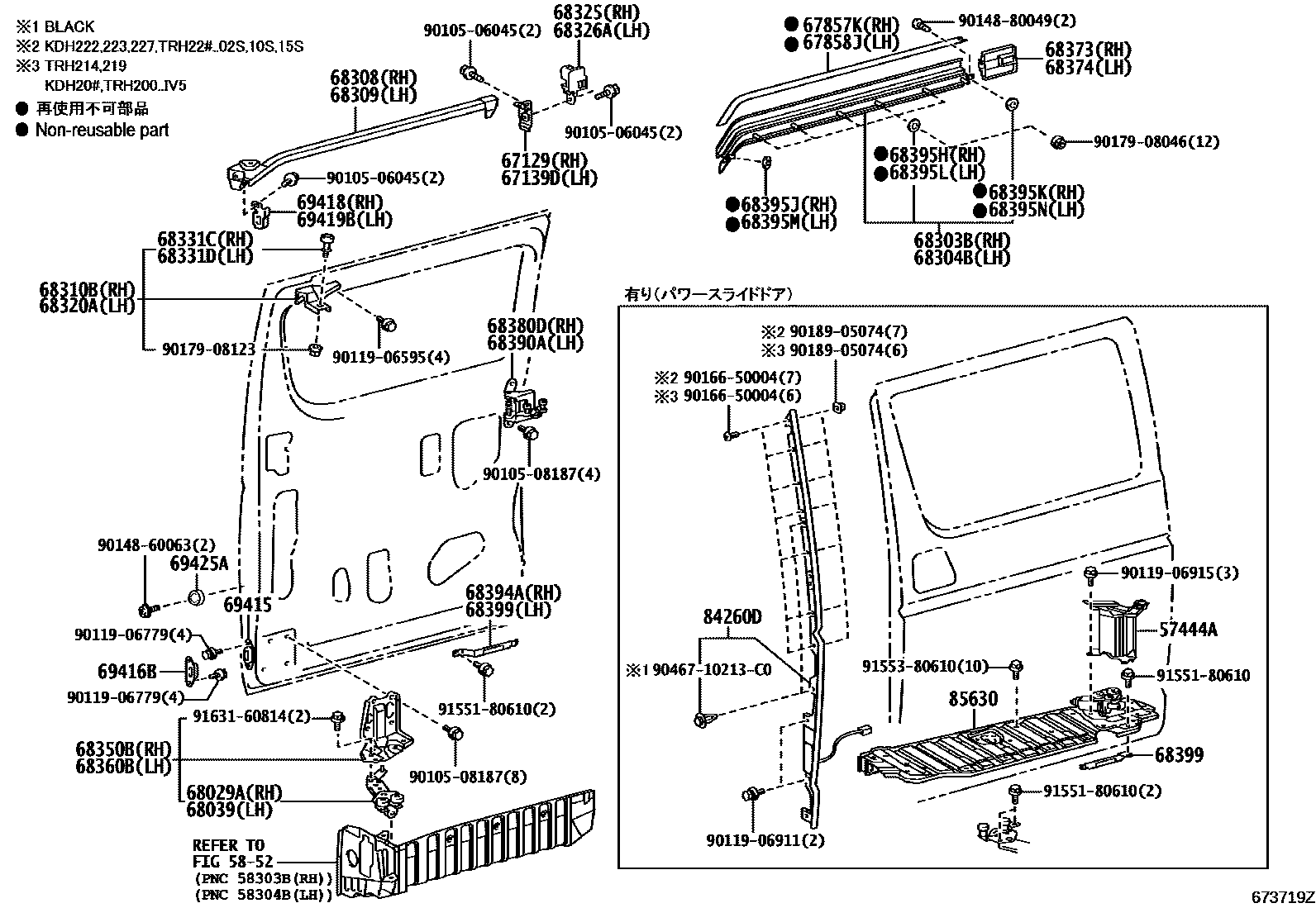

SLIDE ROLLER & RAIL

57444ASUPPORT, SIDE STEP, REAR LH

main57444-26020iTRH224..IV5201205-201312

5852

67129RETAINER, SLIDE DOOR OPEN STOP, RH

main67129-26060iKDH200,205..5D200408-201312

67139DRETAINER, SLIDE DOOR OPEN STOP, LH

main67139-26010iTRH229..CBU;KDH201,206,211,221,223,TRH200,21#,221,223,224,226,228200408-201302

67857KPROTECTOR, SLIDE DOOR PANEL

main67857-26050iKDH20#,211,TRH200,211,216..5D200408-201111

main67857-26051iKDH20#,211,TRH200,211,216..5D201112-201312

sub67857-26052

67858JPROTECTOR, SLIDE DOOR RAIL, LH

main67858-26010iKDH20#,211,22#,TRH200,21#,22#200408-201111

main67858-26011iKDH20#,211,22#,TRH200,21#,22#201112-201312

sub67858-26012

68029ABASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, RH

main68029-26070iKDH20#,211,TRH200,211,216..5D200408-201312

68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main68039-26050iTRH224..CBU;KDH20#,211,22#,TRH200,21#,221,223,226,228,229200408-201312

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-26080iKDH20#,211,TRH200,211,216..5D200408

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-26110iKDH20#,211,22#,TRH200,21#,22#200408-201312

68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-26030iKDH20#,211,TRH200,211,216..5D200408-201310

main68308-26031iKDH20#,211,TRH200,211,216..5D201311-201312

68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68309-26030iKDH20#,211,22#,TRH200,21#,22#200408-201310

main68309-26031iKDH20#,211,22#,TRH200,21#,22#201311-201312

68310BROLLER ASSY, SLIDE DOOR, UPPER RH

main68310-26040iKDH20#,211,TRH200,211,216..5D200408-201209

main68310-26050iKDH20#,211,TRH200,211,216..5D201210-201310

main68310-26051iKDH20#,211,TRH200,211,216..5D201311-201312

68320AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68320-26020iKDH20#,211,22#,TRH200,21#,22#200408-201209

main68320-26030iKDH20#,211,22#,TRH200,21#,22#201210-201310

main68320-26031iKDH20#,211,22#,TRH200,21#,22#201311-201312

68325CUSHION, SLIDE DOOR UPPER RAIL, RH

main68325-26010iKDH20#,211,TRH200,211,216..5D200408-201301

main68325-26011iKDH20#,211,TRH200,211,216..5D201302-201312

68326ACUSHION, SLIDE DOOR UPPER RAIL, LH

main68326-26010iKDH20#,211,TRH200,21#200408-201301

main68326-26011iKDH20#,211,TRH200,21#201302-201312

main68326-26030iKDH22#,TRH22#200502-201212

main68326-26031iKDH22#,TRH22#201301-201312

68331CROLLER, SLIDE DOOR, RH

main68331-26010iKDH20#,211,TRH200,211,216..5D200408-201209

main68331-26071iKDH20#,211,TRH200,211,216..5D201210-201312

68331DROLLER, SLIDE DOOR, LH

main68331-26010iKDH20#,211,22#,TRH200,21#,22#200408-201210

main68331-26071iKDH20#,211,22#,TRH200,21#,22#201210-201312

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-26080iKDH20#,211,TRH200,211,216..5D200408-201312

sub68350-26081

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-26130iTRH224..CBU;KDH20#,211,22#,TRH200,21#,221,223,226,228,229200408-201312

sub68360-26131

main68360-26140supersedes 68360-26130iTRH224..IV5201205-201312

sub68360-26141

68373MOULDING, SLIDE RAIL END, RH

main68073-26010-A1iKDH20#,211,TRH200,211,216..5D200508-201312

WHITE,058

main68073-26010-A2iKDH20#,211,TRH200,211,216..SGL200709-201312

WHITE PEARL CS.,070

main68073-26010-B0iKDH20#,TRH200..SGL200508-200709

DARK GRAY M.M.,1E2

main68073-26010-B1iKDH20#,TRH200..5D..DX200508-201312

SILVER M.M.,1E7 ,2JN

main68073-26010-B2iKDH20#,211,TRH200,211,216..SGL200709-201312

GRAY ME.,1G3

main68073-26010-C1iKDH20#,211,TRH200,211,216..SGL200709-201312

BLACK MC.,209

main68073-26010-F0iKDH20#,TRH200..5D..DX200508-201312

LT.YELLOW,599

main68073-26010-G0iKDH20#,TRH200..5D..DX200508-201312

DK.GREEN M.M.,6S3

main68073-26010-J0iKDH20#,211,TRH200,211,216..5D200508-201312

DK.BLUE M.M.,8P4

main68373-26070-A1iKDH20#,TRH200..5D200408-200507

WHITE,058

main68373-26070-B0iKDH20#,TRH200..SGL200408-200507

DARK GRAY M.M.,1E2

main68373-26070-B1iKDH20#,TRH200..SGL200408-200507

SILVER M.M.,1E7 ,2JN

main68373-26070-F0iKDH20#,TRH200..5D..DX200408-200507

LT.YELLOW,599

main68373-26070-G0iKDH20#,TRH200..5D..DX200408-200507

DK.GREEN M.M.,6S3

main68373-26070-J0iKDH20#,TRH200..5D200408-200507

DK.BLUE M.M.,8P4

main68073-26010-D0iKDH20#,211,TRH200,211,216..SGL201211-201311

68374MOULDING, SLIDE RAIL END, LH

main68074-26010-A1iKDH20#,211,22#,TRH200,21#,22#200508-201312

WHITE,058

main68074-26010-A2iTRH221,226..SHRF201008-201312

WHITE PEARL CS.,070 ,2JZ

main68074-26010-B0iKDH20#,TRH200..SGL200508-200709

DARK GRAY M.M.,1E2

main68074-26010-B1iKDH20#,22#,TRH200,214,219,22#..DX,GC,GL200508-201312

SILVER M.M.,1E7 ,2JN

main68074-26010-B2iKDH20#,211,TRH200,211,216..SGL200709-201312

GRAY ME.,1G3

main68074-26010-C0iTRH221,224,226,229..(02S,10S)..CBU200508-200710

NOBLE PEARL TONING,2JM

main68074-26010-C1iTRH221,224,226,229..HRF..(02S,10S)..CBU200709-201312

NOBLE PEARL TONING2,2JZ

main68074-26010-C2iKDH20#,211,TRH200,21#..GL,SGL200709-201312

BLACK MC.,209

main68074-26010-F0iTRH214,219..DX;KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..CBU200508-201312

LT.YELLOW,599

main68074-26010-F1iTRH221,224,226,229..HRF..(02S,10S)..CBU201008-201312

GOLD ME.,593

main68074-26010-G0iKDH20#,220,221,225,TRH200,221,226..(03S,06S,09S)..CBU200508-201312

DK.GREEN M.M.,6S3

main68074-26010-J0iKDH20#,211,22#,TRH200,21#,22#..CBU200508-201312

DK.BLUE M.M.,8P4

main68374-26070-A1iKDH20#,22#,TRH200,21#,22#200408-200507

WHITE,058

main68374-26070-B0iKDH20#,TRH200..SGL200408-200507

DARK GRAY M.M.,1E2

main68374-26070-B1iKDH20#,TRH200..SGL200408-200507

SILVER M.M.,1E7 ,2JN

main68374-26070-C0iTRH221,224,226,229..(02S,10S)..CBU200501-200507

NOBLE PEARL TONING,2JM

main68374-26070-F0iKDH222,227,TRH223,228..CBU;KDH20#,220,225,TRH200,21#,221,226..03S,06S,09S,10S200408-200507

LT.YELLOW,599

main68374-26070-G0iKDH20#,220,225,TRH200,221,226..03S,06S,09S200408-200507

DK.GREEN M.M.,6S3

main68374-26070-J0iKDH222,227,TRH223,228..IV5200408-200502

DK.BLUE M.M.,8P4

main68074-26010-D0iKDH20#,211,TRH200,211,216..SGL201211-201311

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-26030iKDH20#,211,TRH200,211,216..5D200408-201312

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-26040iKDH20#,211,22#,TRH200,21#,22#200408-201312

68394APLATE, SLIDE DOOR LOWER RAIL, RH

main68394-26010iKDH20#,211,TRH200,211,216..5D200408-201312

68395HPACKING, SLIDE DOOR CENTER RAIL, RH NO.1

main68395-26030×5iKDH20#,211,TRH200,211,216..5D200408-201312

68395JPACKING, SLIDE DOOR CENTER RAIL, RH NO.2

main68395-26040iKDH20#,211,TRH200,211,216..5D200408-201312

68395KPACKING, SLIDE DOOR CENTER RAIL, RH NO.3

main68395-28070iKDH20#,211,TRH200,211,216..5D200408-201312

68395LPACKING, SLIDE DOOR CENTER RAIL, LH NO.1

main68395-26030×5iKDH20#,211,22#,TRH200,21#,22#200408-201312

68395MPACKING, SLIDE DOOR CENTER RAIL, LH NO.2

main68395-26040iKDH20#,211,22#,TRH200,21#,22#200408-201312

68395NPACKING, SLIDE DOOR CENTER RAIL, LH NO.3

main68395-28070iKDH20#,211,22#,TRH200,21#,22#200408-201312

68399PLATE, SLIDE DOOR LOWER RAIL, LH

main68399-26010iTRH224..CBU;KDH20#,211,22#,TRH200,21#,221,223,226,228,229200408-201312

main68399-26020supersedes 68399-26010iTRH224..IV5201205-201312

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-26020iKDH20#,211,TRH200,211,216..5D200408-201312

69416BSTOPPER, SLIDE DOOR DOWN MALE

main69416-26020×2iKDH20#,211,TRH200,211,216..5D200411-201312

main69416-28040iKDH20#,TRH200..5D200408-200411

69418STOP, SLIDE DOOR OPEN

main69418-26010iKDH20#,211,TRH200,211,216..5D200408-201312

sub69418-26011

69419BSTOP, SLIDE DOOR OPEN, LH

main69419-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

sub69419-26011

69425ACUSHION, SLIDE DOOR STOP

main69425-26010×2iKDH20#,TRH200..5D200408-200604

main69425-26011×2iTRH224..CBU;KDH20#,22#,TRH200,214,219,221,223,226,228,229..4D200605-201312

84260DSENSOR ASSY, POWER SLIDE DOOR

main84260-26040iTRH224..IV5201205-201312

main84260-26030iTRH214,219200408-201312

85630MOTOR ASSY, SLIDE DOOR

main85006-26030iTRH224..IV5201205-201307

main85006-26031iTRH224..IV5201308-201312

9010506045

main90105-06045

9010508187

main90105-08187

9011906595

main90119-06595

9011906779

main90119-06779

9011906911

main90119-06911

9011906915

main90119-06915

9014860063

main90148-60063

9014880049

main90148-80049

9016650004

main90166-50004

9017908046

main90179-08046

9017908123

main90179-08123

9018905074

main90189-05074

9046710213C0

main90467-10213C0

9155180610

main91551-80610

9155380610

main91553-80610

9163160814

main91631-60814

55 parts on this diagram · 1 diagram in section
