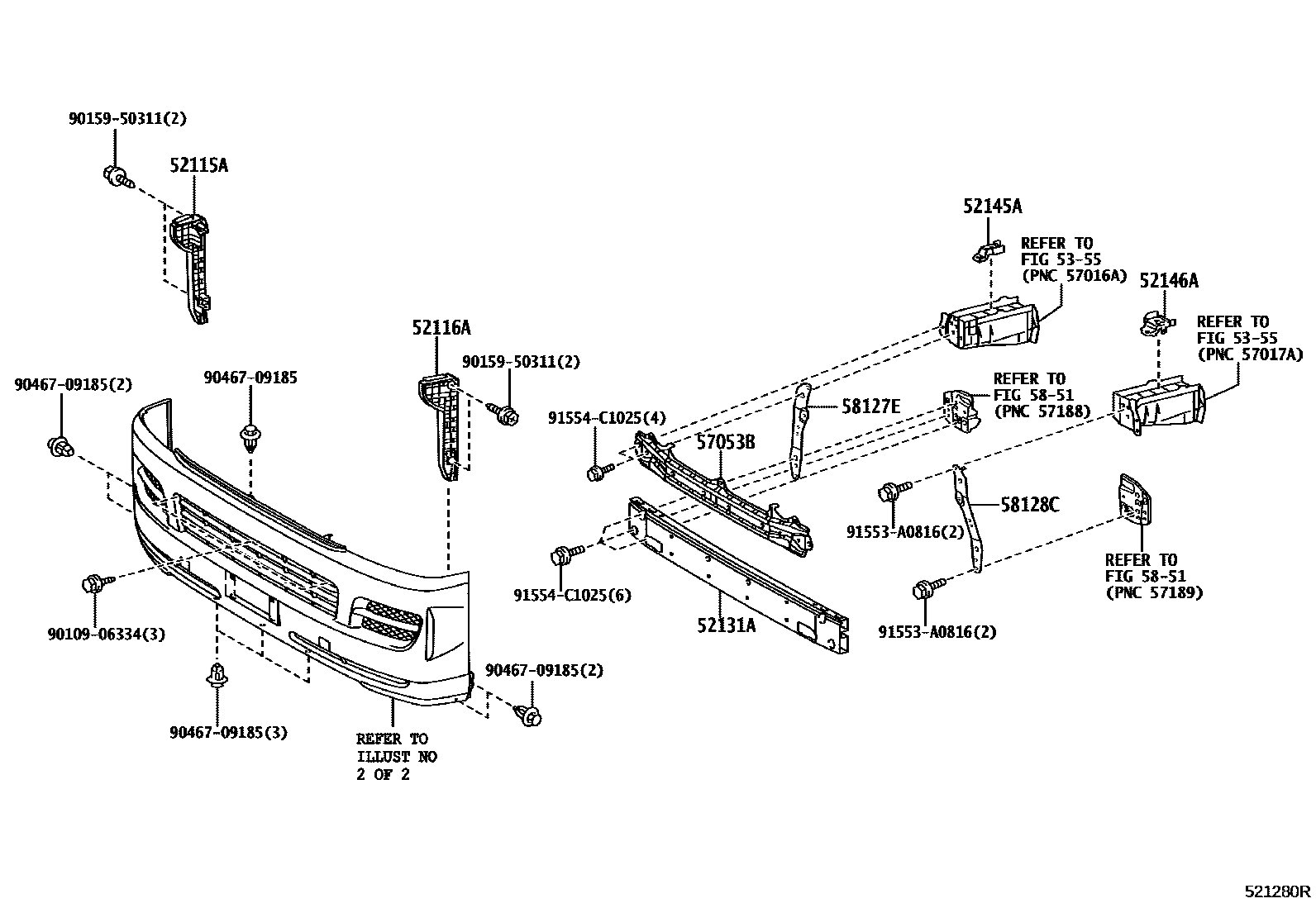

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-26100iKDH20#,22#,TRH200,21#,22#200408-200607

sub52115-26101

main52115-26101iKDH20#,22#,TRH200,21#,22#200608-200709

main52115-26102iKDH20#,211,22#,TRH200,21#,22#200709-201008

main52115-26110iKDH20#,22#,TRH200,21#,22#200601-200606

sub52115-26111

main52115-26111iKDH20#,22#,TRH200,21#,22#200607-200709

main52115-26112iKDH20#,211,22#,TRH200,21#,22#200709-201008

main52115-26120iKDH20#,211,22#,TRH200,21#,22#201008-201312

main52115-26130iKDH20#,211,22#,TRH200,21#,22#201008-201312

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-26090iKDH20#,22#,TRH200,21#,22#200408-200607

sub52116-26091

main52116-26091iKDH20#,22#,TRH200,21#,22#200608-200709

main52116-26092iKDH20#,211,22#,TRH200,21#,22#200709-201008

main52116-26100iKDH20#,22#,TRH200,21#,22#200601-200606

sub52116-26101

main52116-26101iKDH20#,22#,TRH200,21#,22#200607-200709

main52116-26102iKDH20#,211,22#,TRH200,21#,22#200709-201008

main52116-26120iKDH20#,211,22#,TRH200,21#,22#201008-201312

main52116-26130iKDH20#,211,22#,TRH200,21#,22#201008-201312

52131AREINFORCEMENT, FRONT BUMPER

main52131-26020iKDH20#,TRH200200408-201312

main52131-26030iKDH211,22#,TRH21#,22#200408-201310

main52131-26060iKDH211,22#,TRH21#,22#201310-201312

52145ASTAY, FRONT BUMPER, NO.2 RH

main52145-26070iKDH20#,TRH200200408-201008

main52145-26080iKDH211,22#,TRH21#,22#200408-201008

main52145-26090iKDH20#,TRH200201008-201312

main52145-26100iKDH211,22#,TRH21#,22#201008-201312

52146ASTAY, FRONT BUMPER, NO.2 LH

main52146-26070iKDH20#,TRH200200408-201008

main52146-26080iKDH211,22#,TRH21#,22#200408-201008

main52146-26090iKDH20#,TRH200201008-201312

main52146-26100iKDH211,22#,TRH21#,22#201008-201312

5355

57053BREINFORCE SUB-ASSY, FRONT FLOOR CROSSMEMBER

main57053-26010iKDH20#,TRH200200408-201312

main57053-26020iKDH211,22#,TRH21#,22#200408-201312

58127EREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-26040iKDH20#,211,22#,TRH200,21#,22#200408-201312

58128CREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-26020iKDH20#,211,22#,TRH200,21#,22#200408-201312

5851

9010906334

main90109-06334

9015950311

main90159-50311

9046709185

main90467-09185

91553A0816

main91553-A0816

91554C1025

main91554-C1025

15 parts on this diagram · 4 diagrams in section
