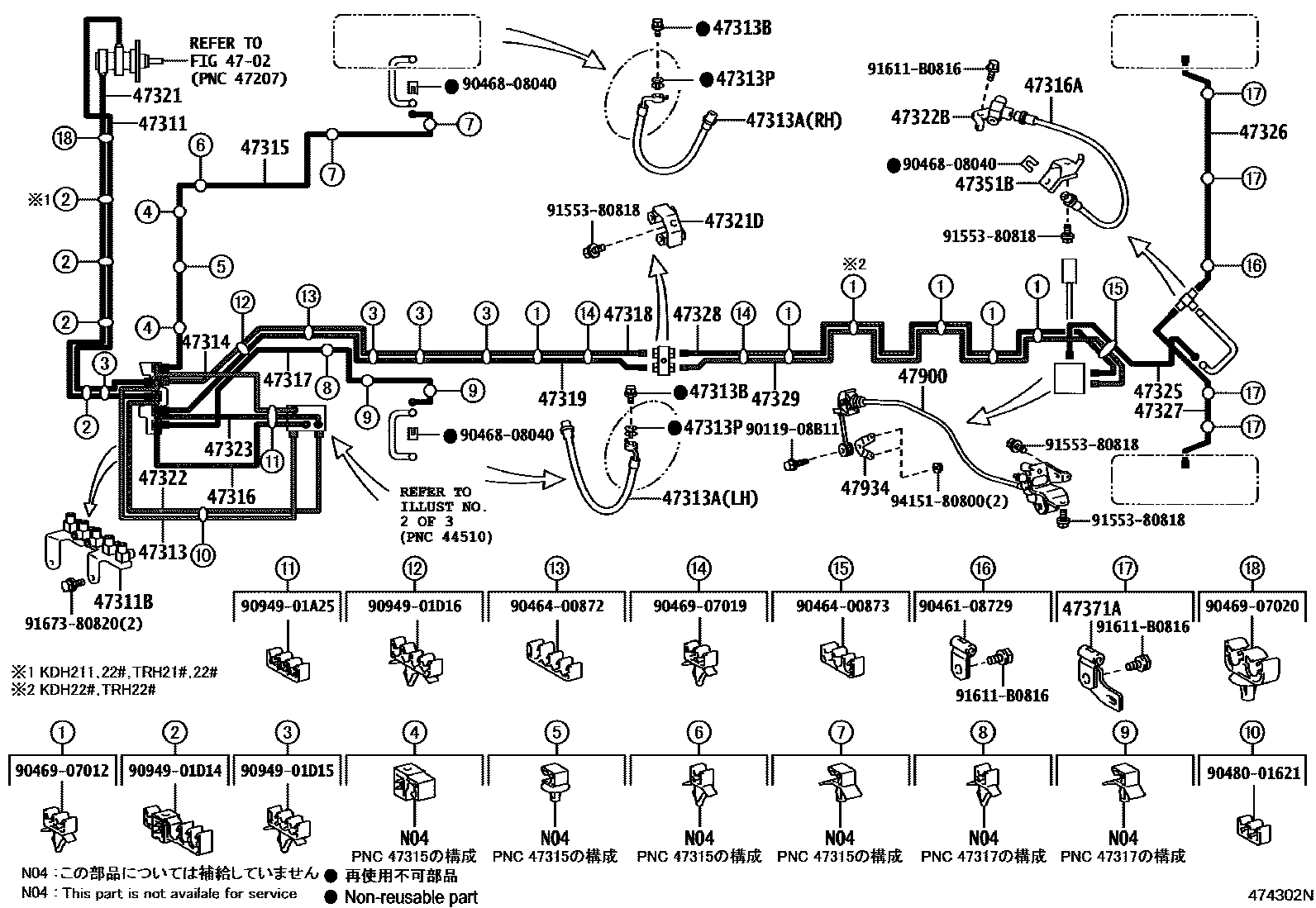

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-26A00iKDH20#,TRH200200408-201312

main47311-26A10iKDH211,22#,TRH21#,22#200408-201312

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10305iKDH20#,211,22#,TRH200,21#,22#200408-201312

47313TUBE, FRONT BRAKE, NO.3

main47313-26320iKDH20#,211,22#,TRH200,21#,22#200408-201312

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02D93iKDH200,220,222,TRH200,214,221,223,224200408-200701

main90947-02D94iKDH200,220,222,TRH200,214,221,223,224200408-200701

main90947-02D95iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90947-02D96iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90947-02F53iKDH201,211,221,223,TRH200,211,214,221,223,224200701-200911

main90947-02F54iKDH201,211,221,223,TRH200,211,214,221,223,224200701-200911

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

47314TUBE, FRONT BRAKE, NO.4

main47314-26370iKDH20#,211,22#,TRH200,21#,22#200408-201312

47315TUBE, FRONT BRAKE, NO.5

main47315-26290iKDH200,201,TRH200200408-201312

main47315-26300iKDH220,222,TRH214,221,223,224200408-200512

main47315-26301iKDH211,220,221,222,223,TRH211,214,221,223,224200512-201312

main47315-26310iKDH205,206200408-201312

main47315-26320iKDH225,227,TRH216,219,226,228,229200408-201312

47316TUBE, FRONT BRAKE, NO.6

main47316-26470iKDH20#,211,22#,TRH200,21#,22#200408-201312

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02D97iKDH20#,22#,TRH200,21#,22#200408-200701

main90947-02F56iKDH20#,211,22#,TRH200,21#,22#..HRF,SMRF,SRF200912-201312

47317TUBE, FRONT BRAKE, NO.7

main47317-26340iKDH200,201,211,220,221,222,223,TRH200,211,214,221,223,224200408-201312

main47317-26350iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

47318TUBE, FRONT BRAKE, NO.8

main47318-26280iKDH20#,211,22#,TRH200,21#,22#200408-201312

47319TUBE, FRONT BRAKE, NO.9

main47324-26550iKDH20#,211,22#,TRH200,21#,22#200408-201312

47321TUBE, REAR BRAKE, NO.1

main47321-26750iKDH20#,TRH200200408-201312

main47321-26760iKDH211,22#,TRH21#,22#200408-201312

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10166iKDH20#,211,22#,TRH200,21#,22#200408-201312

47322TUBE, REAR BRAKE, NO.2

main47322-26420iKDH20#,211,22#,TRH200,21#,22#200408-201312

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10307iKDH20#,211,22#,TRH200,21#,22#200408-201312

47323TUBE, REAR BRAKE, NO.3

main47323-26410iKDH20#,211,22#,TRH200,21#,22#200408-201312

47325TUBE, REAR BRAKE, NO.5

main47325-26400iKDH20#,TRH200200408-201312

main47325-26410iKDH211,22#,TRH21#,22#200408-201312

47326TUBE, REAR BRAKE, NO.6

main47326-26470iKDH20#,TRH200200408-201312

main47326-26480iKDH211,22#,TRH21#,22#200408-201312

47327TUBE, REAR BRAKE, NO.7

main47327-26320iKDH20#,TRH200200408-201312

main47327-26330iKDH211,22#,TRH21#,22#200408-201312

47328TUBE, REAR BRAKE, NO.8

main47328-26150iKDH20#,211,TRH200,21#200408-201312

main47328-26160iKDH22#,TRH22#200501-201312

47329TUBE, REAR BRAKE, NO.9

main47319-26350iKDH20#,211,TRH200,21#200408-201312

main47319-26360iKDH22#,TRH22#200501-201312

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-26210iKDH20#,211,22#,TRH200,21#,22#200408-201312

47371ACLAMP, BRAKE TUBE, NO.1

main47371-26200×4iKDH20#,211,22#,TRH200,21#,22#200408-201312

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-26510iKDH20#,TRH200200408-201312

main47900-26550iKDH22#,TRH214,219,22#200408-201312

main47900-26570iKDH211,TRH211,216200709-201312

47934BRACKET, LOAD SENSING

main47934-26110iKDH20#,211,22#,TRH200,21#,22#200408-201312

9011908B11

main90119-08B11

9046108729

main90461-08729

9046400872

main90464-00872

9046400873

main90464-00873

9046808040

main90468-08040

9046907012

main90469-07012

9046907019

main90469-07019

9046907020

main90469-07020

9048001621

main90480-01621

9094901A25

main90949-01A25

9094901D14

main90949-01D14

9094901D15

main90949-01D15

9094901D16

main90949-01D16

9155380818

main91553-80818

91611B0816

main91611-B0816

9167380820

main91673-80820

9415180800

main94151-80800

45 parts on this diagram · 3 diagrams in section
