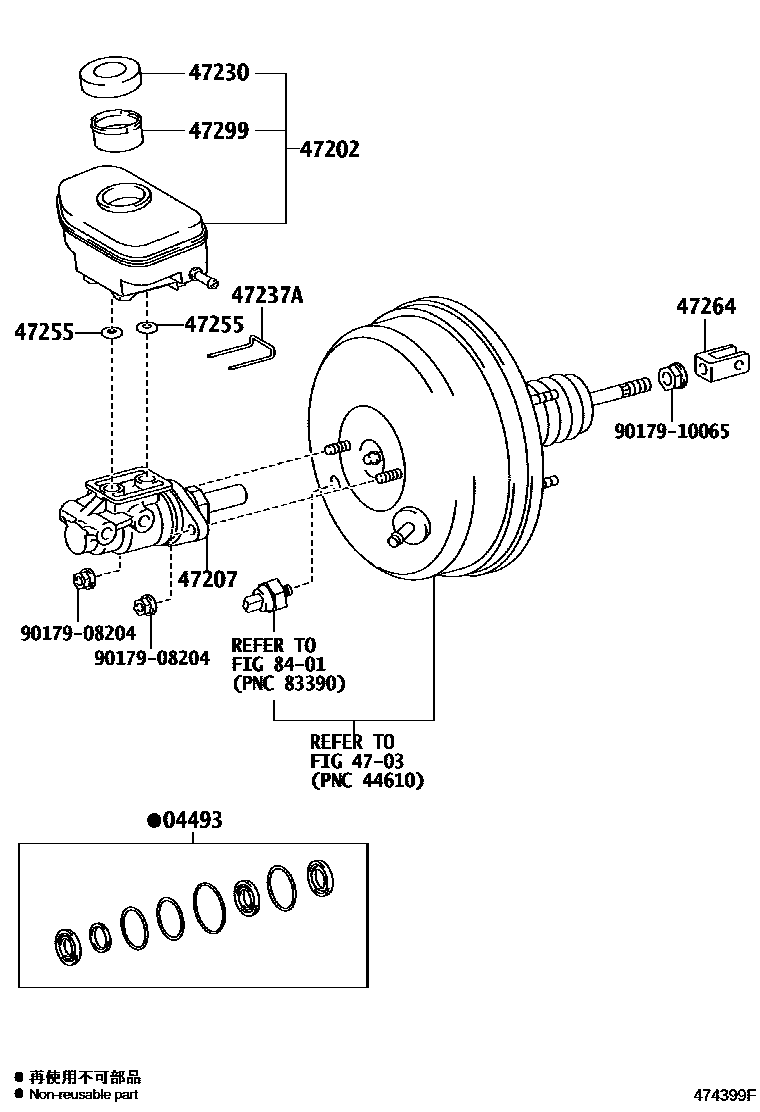

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-26220iKDH20#,211,22#,TRH200,21#,22#200408-201312

4703

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-26280iKDH20#,TRH200..5F200408-200807

sub47220-26281

main47220-26281iKDH20#,TRH200..5F200808-201312

main47220-26290iKDH20#,211,22#,TRH200,21#,22#..4FC200408-200807

sub47220-26291

main47220-26291iKDH20#,211,22#,TRH200,21#,22#..4FC200808-201312

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-26010iKDH20#,211,22#,TRH200,21#,22#200408-201312

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33071iKDH20#,211,22#,TRH200,21#,22#200808-201312

sub47230-33072

main47230-52030iKDH20#,211,22#,TRH200,21#,22#200408-200808

sub47230-33071

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-20020iKDH20#,211,22#,TRH200,21#,22#200408-201312

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-52010iKDH20#,211,22#,TRH200,21#,22#200408-201312

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-60020iKDH20#,211,22#,TRH200,21#,22#200408-201312

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52110iKDH20#,211,22#,TRH200,21#,22#200408-201312

8401

9017908204

main90179-08204

9017910065

main90179-10065

12 parts on this diagram · 1 diagram in section
