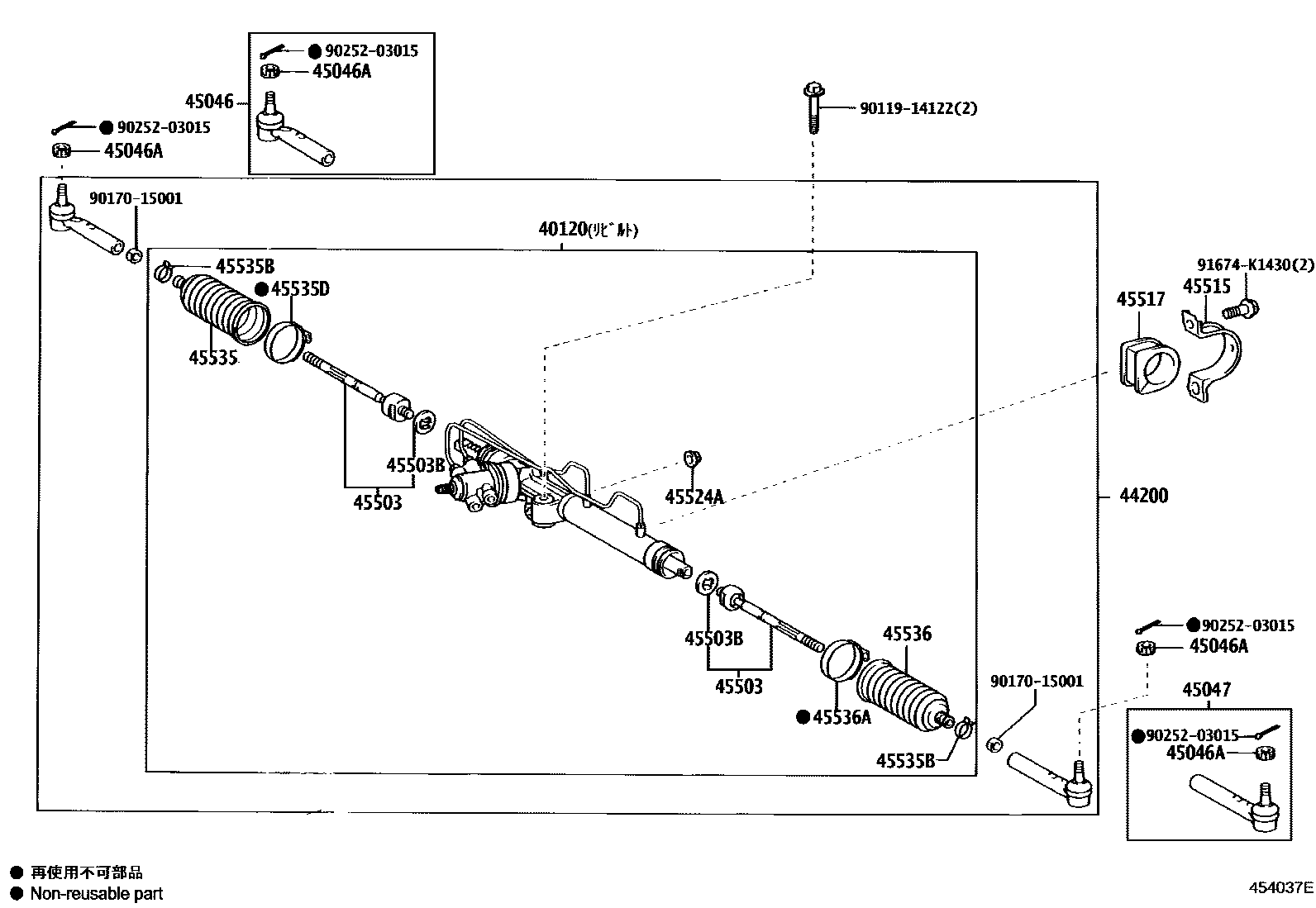

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0006 1

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-26410iKDH201,TRH200201008-201312

sub40120-26411

main40120-26470iKDH200,TRH200200408-200610

main40120-26471iKDH200,201,TRH200200610-201008

main40120-26490iKDH220,222,TRH214,221,223,224200408-200610

main40120-26491iKDH211,220,221,222,223,TRH211,214,221,223,224200610-201008

main40120-26510iKDH205,206200408-200908

main40120-26511iKDH206200908-201008

main40120-26520iKDH225,227,TRH216,219,226,228,229200408-200908

main40120-26521iTRH216,219,226,228,229200908-201008

main40120-26540iKDH211,22#,TRH211,214,221,223,224201008-201312

sub40120-26541

main40120-26560iKDH206201008-201312

sub40120-26561

main40120-26570iTRH216,219,226,228,229201008-201312

sub40120-26571

44200LINK ASSY, POWER STEERING

main44200-26410iKDH201,TRH200201008-201312

sub44200-26411

main44200-26470iKDH200,TRH200200408-200609

main44200-26471iKDH200,201,TRH200200610-201008

main44200-26490iKDH220,222,TRH214,221,223,224200408-200609

main44200-26491iKDH211,220,221,222,223,TRH211,214,221,223,224200610-201008

main44200-26510iKDH205,206200408-200907

main44200-26511iKDH206200908-201008

main44200-26520iKDH225,227,TRH216,219,226,228,229200408-200907

main44200-26521iTRH216,219,226,228,229200908-201008

main44200-26540iKDH211,22#,TRH211,214,221,223,224201008-201312

sub44200-26541

main44200-26560iKDH206201008-201312

sub44200-26561

main44200-26570iTRH216,219,226,228,229201008-201312

sub44200-26571

45046END SUB-ASSY, TIE ROD, RH

main45046-29456iKDH20#,211,22#,TRH200,21#,22#200408-201312

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14009×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

45047END SUB-ASSY, TIE ROD, LH

main45046-29456iKDH20#,211,22#,TRH200,21#,22#200408-201312

45503END SUB-ASSY, STEERING RACK

main45503-29836×2iKDH200,201,211,220,221,222,223,TRH200,211,214,221,223,224200408-201312

main45503-29846×2iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14013×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-26110iKDH200,201,211,220,221,222,223,TRH200,211,214,221,223,224200408-201312

main45515-26120iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-26060iKDH20#,211,22#,TRH200,21#,22#200408-201312

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90179-36002iKDH20#,211,22#,TRH200,21#,22#200408-201312

45535BOOT, STEERING RACK, NO.1

main45535-26060iKDH20#,211,22#,TRH200,21#,22#200408-201312

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iKDH20#,211,22#,TRH200,21#,22#200408-201312

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016iKDH20#,211,22#,TRH200,21#,22#200408-201312

45536BOOT, STEERING RACK, NO.2

main45535-26060iKDH20#,211,22#,TRH200,21#,22#200408-201312

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-55016iKDH20#,211,22#,TRH200,21#,22#200408-201312

9011914122

main90119-14122

9017015001

main90170-15001

9025203015

main90252-03015

91674K1430

main91674-K1430

19 parts on this diagram · 4 diagrams in section
