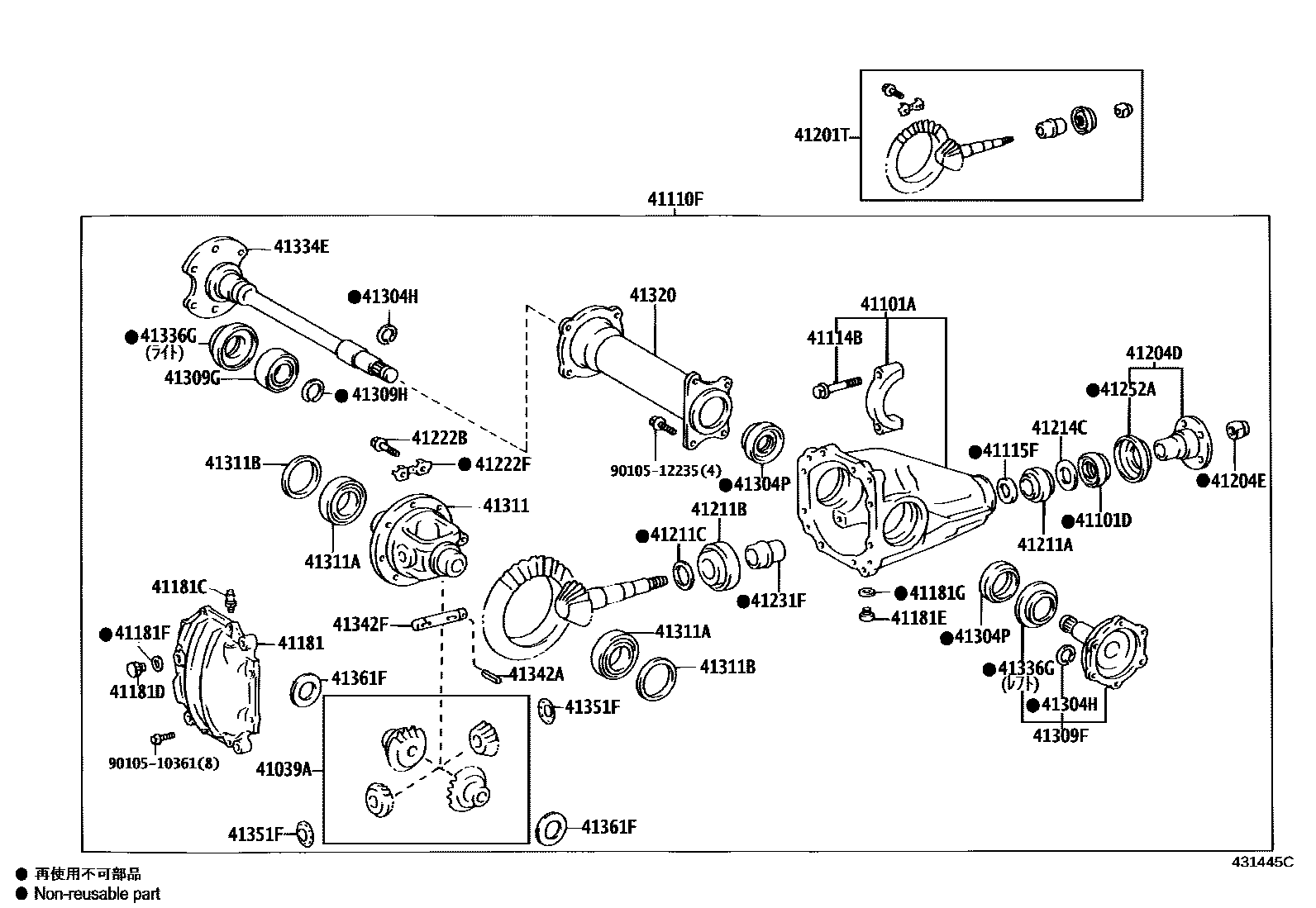

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

41039AGEAR KIT, DIFFERENTIAL

main41039-34030iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-26021iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

sub41101-26022

41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)

main90311-38049iKDH205,225,227,TRH219,226,228,229200408-200605

sub90311-38066

main90311-38066iKDH205,206,225,227,TRH216,219,226,228,229200605-201312

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-26610iKDH206..5F200709-201312

sub41110-26A80

main41110-26670iKDH205..5F;KDH206..4FC200408-201312

sub41110-26480

main41110-26680iKDH205,225,227,TRH216,219,226,228,229..4FC200408-201312

sub41110-26681

41114BBOLT, FRONT DIFFERENTIAL BEARING CAP

main90105-12053iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41115FRING, FRONT DIFFERENTIAL OIL STORAGE

main41115-26010iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41181COVER, FRONT DIFFERENTIAL CARRIER

main41108-0W021iKDH205,225,227,TRH219,226,228,229200408-200606

sub41108-0W022

main41108-0W022iKDH205,206,225,227,TRH216,219,226,228,229200606-201312

sub41108-25010

41181CPLUG, BREATHER (FOR FRONT DIFFERENTIAL CARRIER COVER)

main90930-03077iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41181DPLUG (FOR FRONT DIFFERENTIAL FILLER)

main90341-18006iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)

main90341-18030iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41181FGASKET (FOR FRONT DIFFERENTIAL FILLER PLUG)

main12157-10010iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)

main12157-10010iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-80067iKDH205..5F200408-200605

sub41201-80502

main41201-80098iKDH205,225,227,TRH219,226,228,229..4FC200408-200605

sub41201-80500

main41201-80500iKDH205,225,227,TRH216,219,226,228,229..4FC200605-201312

main41201-80501iKDH206..5F200709-201312

main41201-80502iKDH205..5F;KDH206..4FC200605-201312

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-35050iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)

main90179-18020iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-30078iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90366-35023iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41211CGEAR, DIFFERENTIAL RING

main90201-35396iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35397iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35398iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35399iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35400iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35401iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35402iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35403iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35404iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35438iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35439iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35440iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35441iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35497iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35498iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35499iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35500iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35501iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35502iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35503iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35504iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35505iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35506iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35507iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35508iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35509iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35510iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35511iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35512iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35513iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35514iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35515iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35516iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35517iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-35518iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-35020iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35030iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)

main41252-30010iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90521-29002iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41304PSEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90311-35032iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41309FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH

main41309-26010iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41309GBEARING (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90369-36009iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41309HRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)

main90520-33008iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41311CASE, FRONT DIFFERENTIAL

main41311-22060iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41311ABEARING (FOR FRONT DIFFERENTIAL CASE)

main90368-50006iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)

main90201-65007iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-65008iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-65009iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-65010iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-65011iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-65012iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-65013iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-65014iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-65015iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-65016iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-65017iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-65018iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-65019iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-65020iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-65021iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-65022iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-65023iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-65024iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-65025iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-65026iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-65027iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-65028iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main90201-65029iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41320TUBE ASSY, FRONT DIFFERENTIAL

main41320-26030iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

sub41320-26080

41334ESHAFT, FRONT DIFFERENTIAL SIDE GEAR

main41334-26020iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41336GCOVER, DUST(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT)

main41336-22010iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main41336-28010iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-22021iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-30060iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-30040iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main41361-30050iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main41361-30060iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main41361-30070iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main41361-30080iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main41361-30090iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

main41361-30100iKDH205,206,225,227,TRH216,219,226,228,229200408-201312

9010510361

main90105-10361

9010512235

main90105-12235

40 parts on this diagram · 2 diagrams in section
