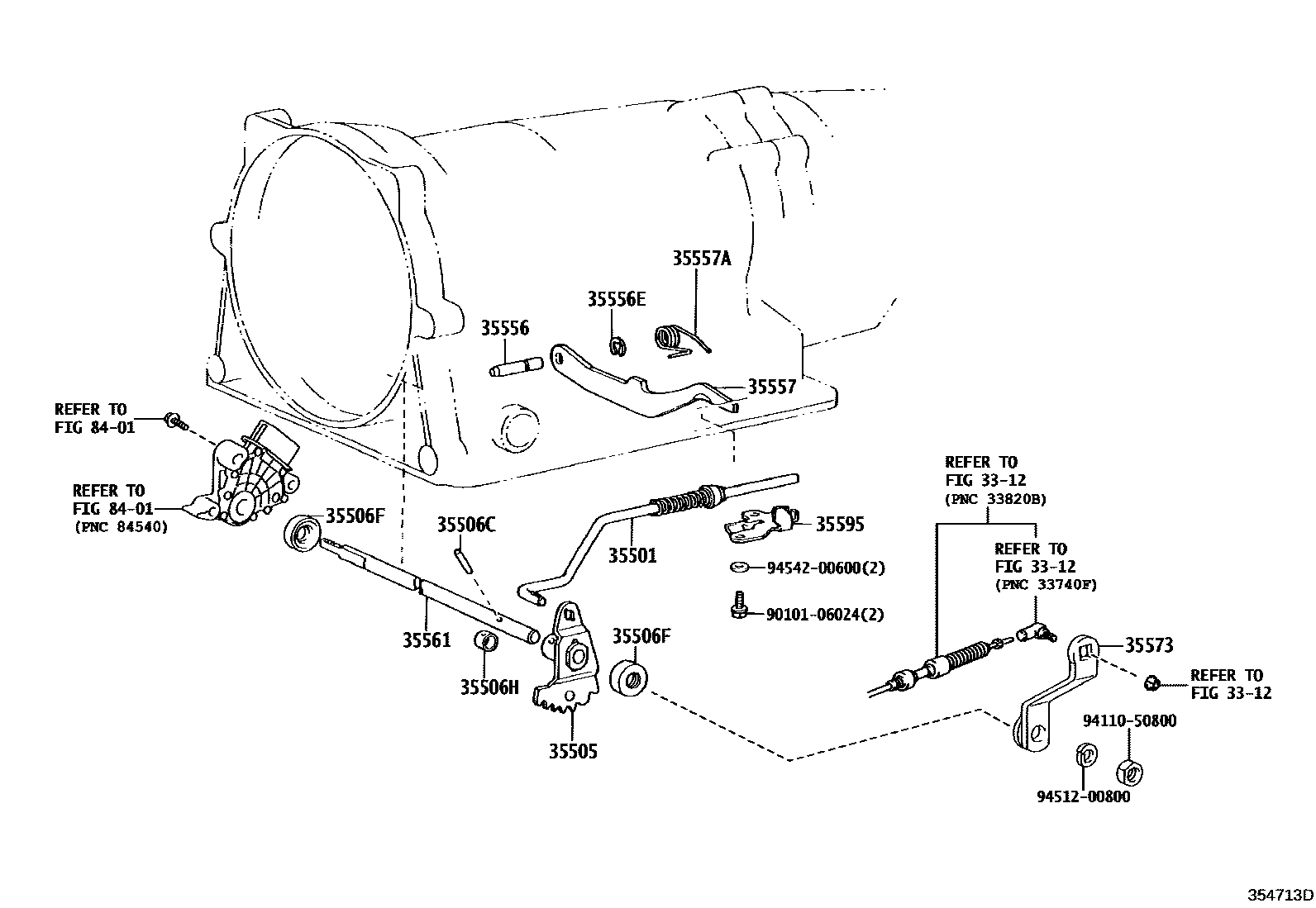

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A45DE 0002 1A340,A340F,A343E,A343F

3312

35501ROD SUB-ASSY, PARKING LOCK

main35501-26020iTRH200..4FC200408-201312

main35501-60010iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-60030iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

sub35505-26020

main35505-71010iTRH200..4FC200408-201312

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iKDH20#,211,22#,TRH200,21#,22#..4FC200408-201312

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11003iTRH200..4FC200408-201312

main90311-12002iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iKDH20#,211,22#,TRH200,21#,22#..4FC200408-201312

35556SHAFT, PARKING LOCK PAWL

main35556-26010iTRH200..4FC200408-201312

main35556-30020iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iKDH20#,211,22#,TRH200,21#,22#..4FC200408-201312

35557PAWL, PARKING LOCK

main35557-26020iTRH200..4FC200408-201312

main35557-60020iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21001iTRH200..4FC200408-201312

main90508-21002iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35561SHAFT, MANUAL VALVE LEVER

main35561-30060iTRH200..4FC200408-201312

main35561-35010iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-26090iTRH200..4FC200408-201312

main35573-26100iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35595BRACKET, PARKING LOCK PAWL

main35595-40010iTRH200..4FC200408-201312

main35595-60010iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

8401

9010106024

main90101-06024

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

18 parts on this diagram · 2 diagrams in section
