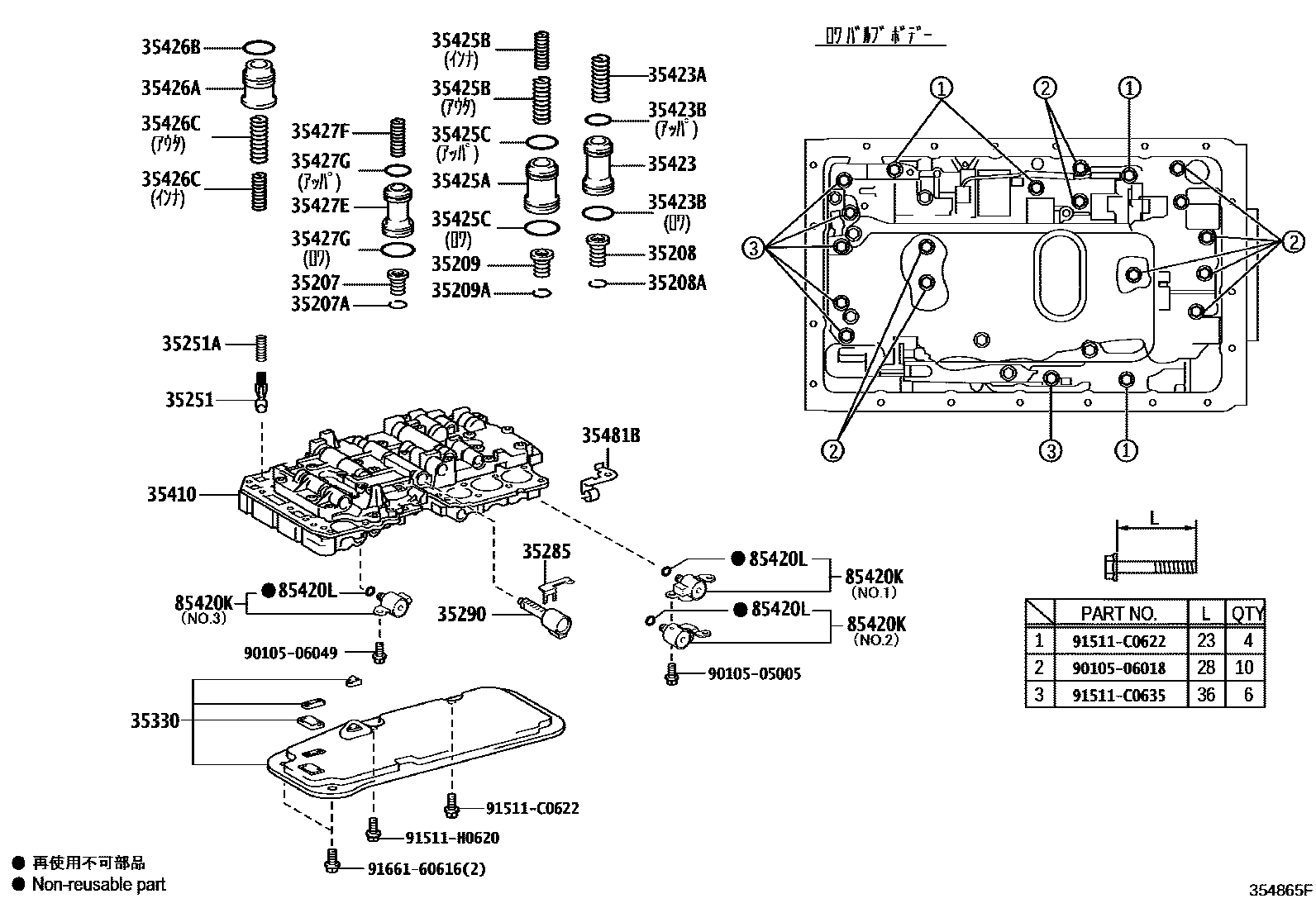

VALVE BODY & OIL STRAINER (ATM)

0001 1A340,A340F 0002 1A340E,A340F,A343E,A343F 0004 1A45DE 0005 1A340E,A340F,A343E,A343F 0006 1A45DE

35207SPRING SUB-ASSY, B-0 ACCUMULATOR

main35207-22010iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35207ARING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)

main90521-22004iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35208SPRING SUB-ASSY, B-2 ACCUMULATOR

main35208-22010iKDH20#,211,22#..4FC200709-201312

main35208-28010iTRH200..4FC200408-201312

main35208-30010iTRH21#,22#200408-201312

main35208-35010iKDH20#,22#..4FC200408-200709

35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

main90521-22004iKDH20#,211,22#,TRH200,21#,22#..4FC200408-201312

35209SPRING SUB-ASSY, C-2 ACCUMULATOR

main35209-22020iKDH20#,211,22#..4FC200709-201312

main35209-24010iKDH20#,22#..4FC200408-200709

main35209-50020iTRH21#,22#200408-201312

35209ARING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)

main90521-22004iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35251BODY, CHECK BALL

main35251-30020iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35285PLATE, SOLENOID LOCK

main35285-24010iKDH201,206,211,221,223,TRH21#,22#..4FC200408-201312

main35285-24020iKDH20#,22#..4FC200408-200709

main35285-28010iTRH200..4FC200408-201312

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-25010iTRH200..4FC200408-201312

main35290-71010iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35330STRAINER ASSY, VALVE BODY OIL

main35330-30060iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main35330-53010iTRH200..4FC200408-201312

35410BODY ASSY, TRANSMISSION VALVE

main35410-26740iTRH216,219,226,228,229200408-201312

main35410-26750iKDH201,211,22#..4FC200709-201312

main35410-26760iKDH206..4FC200709-201312

main35410-35790iTRH211,214,221,223,224200408-201312

main35410-71050iKDH200,220,222..4FC200408-200709

main35410-71060iKDH205,225,227..4FC200408-200709

main35410-71070iTRH200..4FC200408-201312

35423PISTON, B-2 ACCUMULATOR

main35421-26010iTRH200..4FC200408-201312

main35423-30030iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-24015iTRH21#,22#200408-201312

main90501-25028iKDH20#,211,22#..4FC200709-201312

main90501-25037iTRH200..4FC200408-201312

main90501-27019iKDH20#,22#..4FC200408-200709

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-23010iKDH20#,211,22#,TRH200,21#,22#..4FC200408-201312

main90301-29011iTRH200..4FC200408-201312

main90301-31010iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35425APISTON, C-2 ACCUMULATOR

main35425-30020iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main35441-30010iTRH200..4FC200408-201312

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-22015iKDH201,206,211,221,223,TRH21#,22#..4FC200408-201312

main90501-23135iKDH20#,22#..4FC200408-200709

main90501-25027iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main90501-25061iTRH200..4FC200408-201312

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-18010iTRH200..4FC200408-201312

main90301-25010iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main90301-26012iTRH200..4FC200408-201312

main90301-31010iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35426APISTON, C-0 ACCUMULATOR

main35426-40010iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35426BRING, O (FOR C-0 ACCUMULATOR PISTON)

main90301-24010iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)

main90501-22008iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main90501-23073iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35427EPISTON, B-0 ACCUMULATOR

main35427-30040iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35427FSPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)

main90501-21006iTRH21#,22#200408-201312

main90501-23095iKDH20#,211,22#..4FC200408-201312

35427GRING, O (FOR B-0 ACCUMULATOR PISTON)

main90301-20008iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main90301-26011iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35481BCLAMP, VALVE BODY WIRE HARNESS

main35481-24010iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

85420KSOLENOID ASSY, TRANSMISSION

main35250-28030iTRH200..4FC200408-201312

main35250-30030×2iTRH200..4FC200408-201312

main35250-30050iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main35250-30070iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main35250-50030iKDH20#,22#..4FC200408-200709

85420LRING, O(FOR TRANSMISSION SOLENOID)

main90301-06004×2iKDH201,206,211,221,223,TRH21#,22#..4FC200408-201312

9010505005

main90105-05005

9010506018

main90105-06018

9010506049

main90105-06049

91511C0622

main91511-C0622

91511C0635

main91511-C0635

91511H0620

main91511-H0620

9166160616

main91661-60616

34 parts on this diagram · 5 diagrams in section
