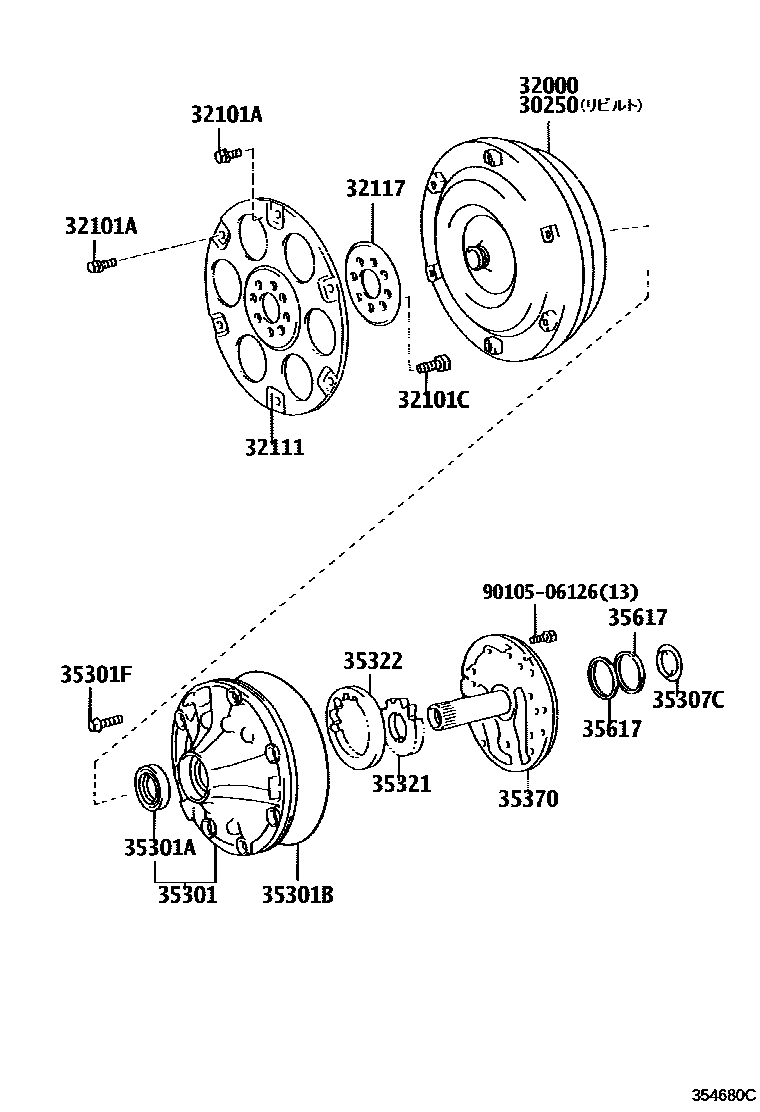

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1A340E,A340F 0002 1A45DE 0003 1A343E,A343F

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-26080iTRH21#,22#200408-201312

sub30250-60320

main30250-26090iTRH200..4FC200408-201312

main30250-60220iKDH20#,211,22#..4FC200709-201312

main30250-71010iKDH20#,22#..4FC200408-200709

32000CONVERTER ASSY, TORQUE

main32000-26080iTRH21#,22#200408-201312

sub32000-60320

main32000-26090iTRH200..4FC200408-201312

main32000-60220iKDH20#,211,22#..4FC200709-201312

main32000-71010iKDH20#,22#..4FC200408-200709

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-26010iTRH200,21#,22#..4FC200408-201312

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10413iKDH20#,211,22#..4FC200709-201312

main90105-10546iKDH20#,211,22#..4FC200709-201312

main90119-09009iKDH200,205,220,222,225,227,TRH200,21#,22#..4FC200408-201312

main90119-09010iKDH200,205,220,222,225,227,TRH200,21#,22#..4FC200408-201312

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10276iTRH200,21#,22#..4FC200408-201312

main90105-13010iKDH20#,211,22#..4FC200408-201312

32111PLATE, PUMP IMPELLER DRIVE

main32111-35030iKDH20#,211,22#..4FC200709-201009

sub32111-60080

main32111-60050iKDH20#,22#..4FC200408-200709

main32111-60080iKDH20#,211,22#..4FC201010-201312

sub32111-71010

32117SPACER, DRIVE PLATE, REAR

main32117-26010iTRH200,21#,22#..4FC200408-201312

main32117-60050iKDH20#,211,22#..4FC200408-201312

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-22021iTRH200..4FC200408-201312

main35301-50020iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38064iTRH200..4FC200408-201312

main90311-38087iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iTRH200..4FC200408-201312

main90301-99033iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main90105-08137iTRH200..4FC200408-201312

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-30340iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35321GEAR, FRONT OIL PUMP DRIVE

main35321-22020iTRH200..4FC200408-201312

main35321-22030iTRH200..4FC200408-201312

main35321-22040iTRH200..4FC200408-201312

main35321-22050iTRH200..4FC200408-201312

main35321-22060iTRH200..4FC200408-201312

main35321-30030iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main35321-30040iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main35321-30050iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main35321-30060iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main35321-30070iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-22020iTRH200..4FC200408-201312

main35322-22030iTRH200..4FC200408-201312

main35322-22040iTRH200..4FC200408-201312

main35322-22050iTRH200..4FC200408-201312

main35322-22060iTRH200..4FC200408-201312

main35322-30020iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main35322-30030iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main35322-30040iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main35322-30050iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main35322-30060iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35370SHAFT ASSY, STATOR

main35370-22060iTRH200..4FC200408-201312

main35370-30060iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

35617RING, CLUTCH DRUM OIL SEAL

main35617-30020iKDH20#,211,22#,TRH21#,22#..4FC200408-201312

main35617-32010iTRH200..4FC200408-201312

9010506126

main90105-06126

17 parts on this diagram · 3 diagrams in section
