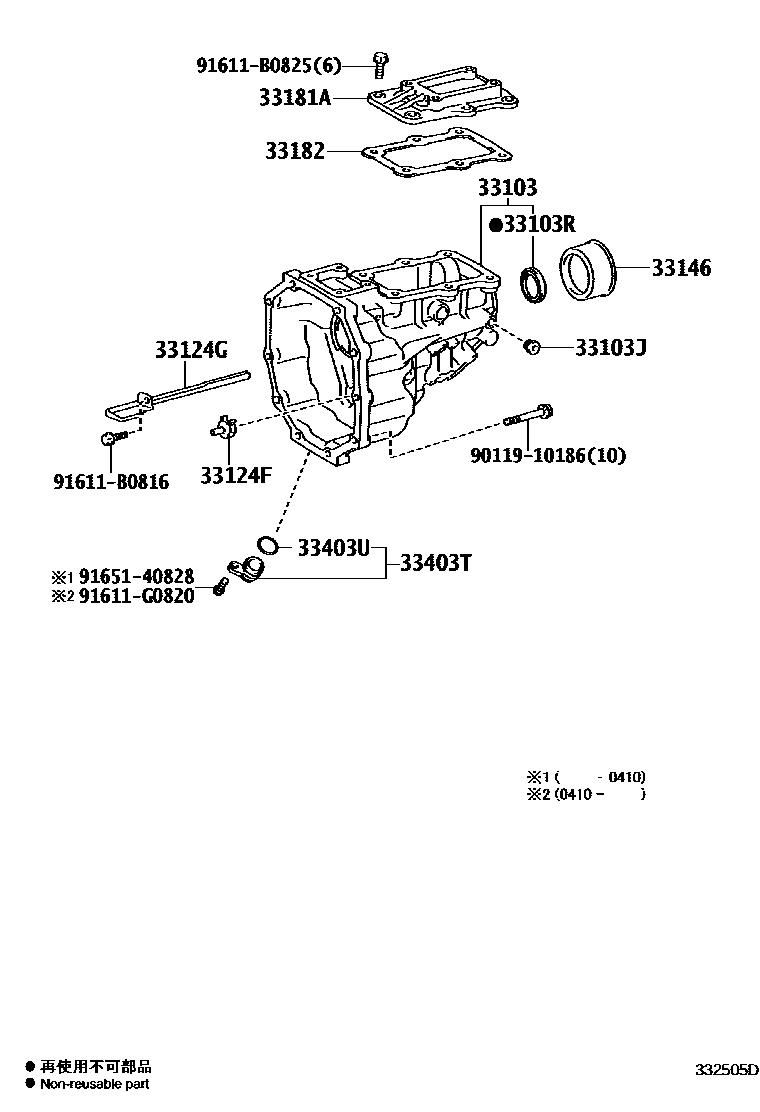

EXTENSION HOUSING (MTM)

0001 1R351 0002 1R351F 0003 1G55

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-0L010iTRH200..5F200408-201312

main33103-26070iKDH200,201..5F200408-201312

33103JPLUG, TIGHT(FOR EXTENSION HOUSING)

main90341-10065iKDH200,201..5F200408-201312

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-40001iKDH200..5F200408-200709

main90311-40032iKDH201..5F200709-201101

sub90311-40035

main90311-40035iKDH201..5F201101-201312

sub90311-40048

main90311-T0020iTRH200..5F200408-201211

sub90311-T0050

main90311-T0050iTRH200..5F201211-201312

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33124-35100iKDH20#..5F200408-201312

main33124-36010iTRH200..5F200408-201312

33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)

main33124-0L010iTRH200..5F200412-201312

sub33124-28011

main33124-28011iTRH200..5F200408-200412

main33124-35090iKDH200,201..5F200408-201312

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iKDH200,201,TRH200..5F200408

sub33146-30020

main33146-30020iKDH200,201,TRH200..5F200408

33181ACOVER, EXTENSION HOUSING(MTM)

main33181-26030iKDH200,201..5F200408-201312

33182GASKET, EXTENSION HOUSING COVER(MTM)

main33182-35020iKDH200,201..5F200408-201101

sub33584-71010

main33584-71010iKDH201..5F201101-201312

33403TCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-26070iKDH200,201..5F200410

main33403-35230iKDH200..5F200408-200410

33403URING, O(FOR MTM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24030iKDH200,201..5F200408

9011910186

main90119-10186

91611B0816

main91611-B0816

91611B0825

main91611-B0825

91611G0820

main91611-G0820

9165140828

main91651-40828

15 parts on this diagram · 3 diagrams in section
