TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

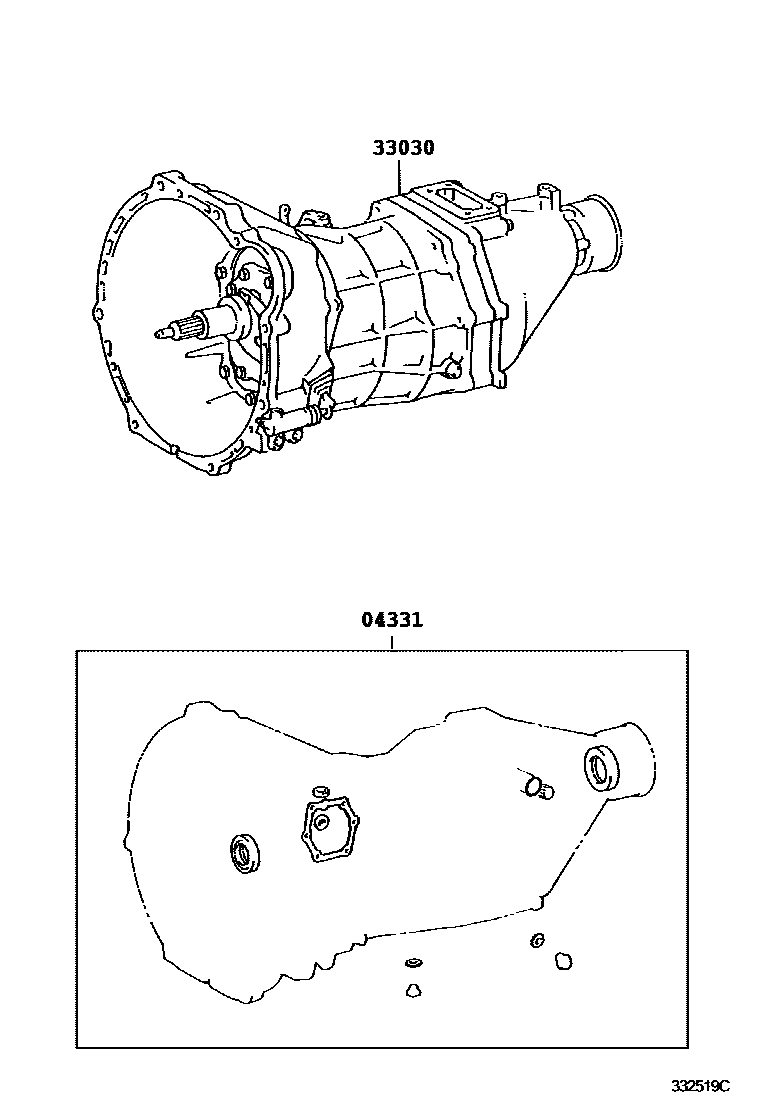

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-25100i¥1,160200709-201312

main04331-26060i¥2,470200709-201012

sub04331-26200¥2,060

main04331-26070i¥1,860200408-200708

sub04331-25100¥1,160

main04331-26200i¥2,060201101-201312

sub04331-26201¥1,550

main04331-28070i¥1,750200408-201205

sub04331-28071¥1,750

main04331-28071i¥1,750201205-201312

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-0L020i¥262,000200408-201312

sub33030-26B40¥163,000

main33030-26A10i¥257,000200408-200709

main33030-26A30i¥257,000200408-200709

main33030-26A90i¥256,000200709-201102

sub33030-26A91¥256,000

main33030-26A91i¥256,000201102-201305

sub33030-26A92¥256,000

main33030-26A93i¥257,000201305-201310

sub33030-26A94¥214,000

main33030-26A94i¥214,000201310-201312

main33030-26B00i¥256,000200709-201102

sub33030-26B01¥256,000

main33030-26B01i¥256,000201102-201305

sub33030-26B02¥256,000

main33030-26B03i¥257,000201305-201310

sub33030-26B04¥214,000

main33030-26B04i¥214,000201310-201312

2 parts on this diagram · 3 diagrams in section
