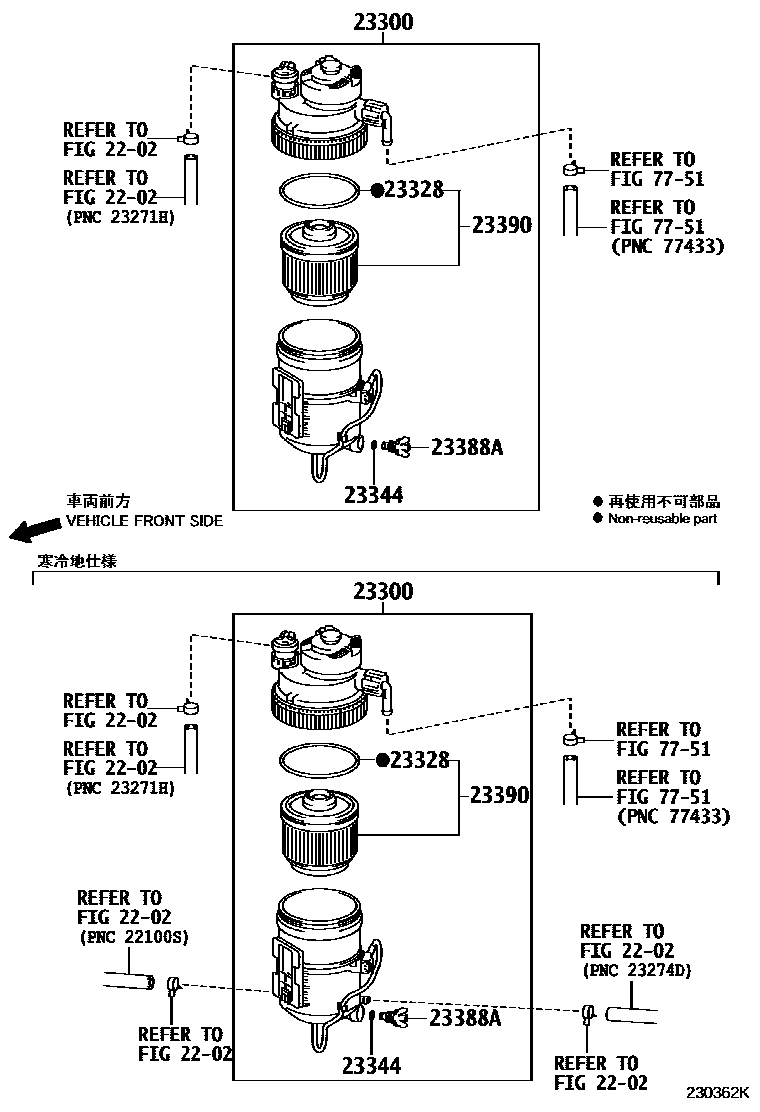

FUEL FILTER

2202

23300FILTER ASSY, FUEL

main23300-30200i2KDFTV..KDH20#,22#200408-200502

sub23300-30201

main23300-30201i1KDFTV,2KDFTV..KDH20#,211,22#200503-201004

sub23300-30202

main23300-30202i1KDFTV..KDH20#,211,22#201005-201107

sub23300-30203

main23300-30203i1KDFTV..KDH20#,211,22#201108-201310

sub23300-30204

main23300-30204i1KDFTV..KDH20#,211,22#201310-201312

sub23300-30205

23328GASKET(FOR FUEL FILTER)

main23344-0L010i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-0L041i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

23388APLUG, FUEL FILTER DRAIN

main23388-0L041i1KDFTV,2KDFTV..KDH20#,211,22#200408-201312

23390ELEMENT ASSY, FUEL FILTER

main23390-0L010i1KDFTV,2KDFTV..KDH20#,211,22#200408-201005

sub23390-0L041

main23390-0L041i1KDFTV..KDH20#,211,22#201005-201312

7751

7 parts on this diagram · 1 diagram in section
