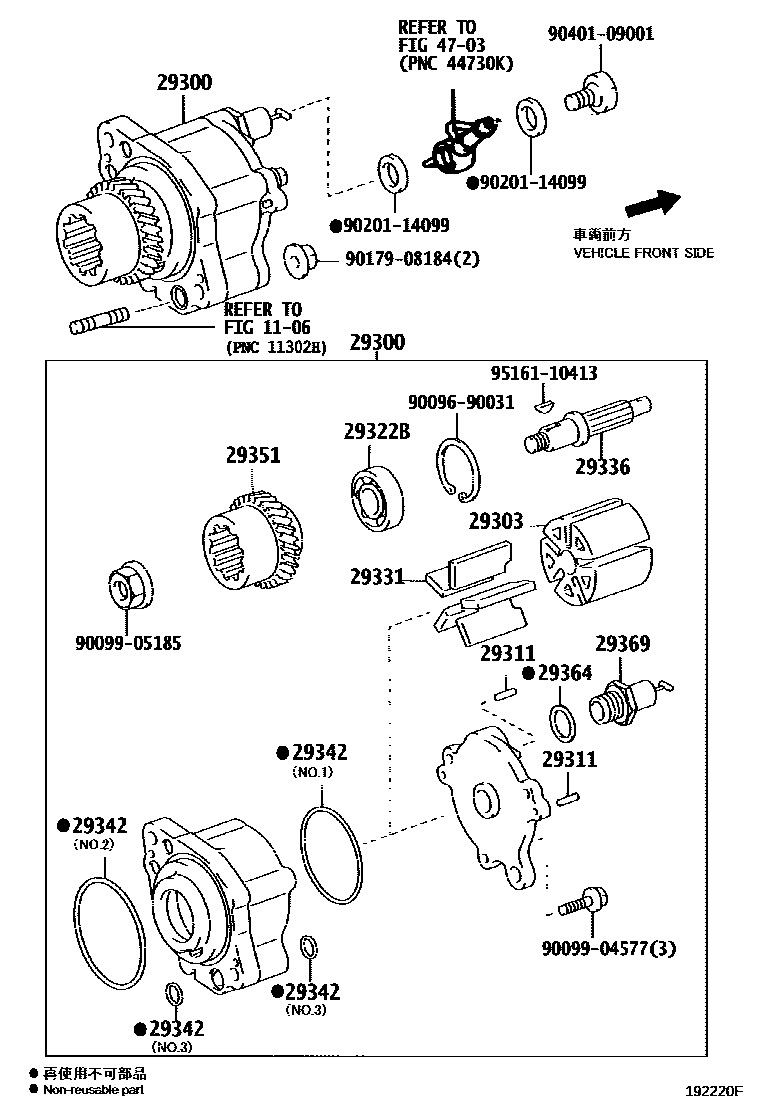

VACUUM PUMP

1106

29300PUMP ASSY, VACUUM

main29300-30020i1KDFTV..KDH20#,211,22#200709-201312

main29300-67020i2KDFTV..KDH20#,22#200408-200708

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-67020i2KDFTV..KDH20#,22#200408-200708

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010×2i2KDFTV..KDH20#,22#200408-200708

29322BBEARING, VACUUM PUMP

main90099-10185i2KDFTV..KDH20#,22#200408-200708

29331BLADE, VACUUM PUMP, A

main29331-67020×5i2KDFTV..KDH20#,22#200408-200708

29336SHAFT, VACUUM PUMP

main29336-58050i2KDFTV..KDH20#,22#200408-200708

29342PACKING, VACUUM PUMP

main29342-58010i2KDFTV..KDH20#,22#200408-200708

main29342-58040i1KDFTV..KDH20#,211,22#200709

main29342-58060×2i1KDFTV..KDH20#,211,22#200709

main29342-58070i1KDFTV..KDH20#,211,22#200709

main29342-67020i2KDFTV..KDH20#,22#200408-200708

main29342-68010×2i2KDFTV..KDH20#,22#200408-200708

29351GEAR, VACUUM PUMP

main29351-67020i2KDFTV..KDH20#,22#200408-200708

29364WASHER, VACUUM PUMP

main29364-66010i2KDFTV..KDH20#,22#200408-200708

29369VALVE SUB-ASSY, CHECK

main29369-64030i2KDFTV..KDH20#,22#200408-200708

4703

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

9017908184

main90179-08184

9020114099

main90201-14099

9040109001

main90401-09001

9516110413

main95161-10413

19 parts on this diagram · 1 diagram in section
