STARTER

0001 112V 2.0KW 0002 112V 1.0KW 0003 112V 1.0KW 0004 112V 1.6KW 0005 112V 2.7KW 0006 112V 3.0KW 0007 112V 2.2KW

28011CLUTCH SUB-ASSY, STARTER

main28011-30040i2KDFTV..KDH20#..5F200408-200709

main28011-30050supersedes 28011-67030i1KDFTV,2KDFTV..KDH20#,211,22#..4FC200408-201008

main28011-67030i1KDFTV..KDH20#..5F200709

main28011-70020i1TRFE..TRH200..CBU200408-201101

28100STARTER ASSY

main28100-30040i2KDFTV..KDH20#..5F200408-200709

main28100-67050i1KDFTV..KDH20#..5F200709-200910

sub28100-67051

main28100-75190i1TRFE..TRH200..CBU200408-200910

main28100-75191supersedes 28100-75151i1TRFE..TRH200..CBU200911-201312

main28100-30080i1KDFTV,2KDFTV..KDH200,201..09S..5F;1KDFTV,2KDFTV..KDH200,201..V2..HRF..5F;1KDFTV,2KDFTV..KDH20#..V1..SRF..5D..06S..5F200408-200905

main28100-30081i1KDFTV..KDH201..09S..5F;1KDFTV..KDH201..V2..HRF..5F;1KDFTV..KDH20#..V1..SRF..5D..06S..5F200906-201008

main28100-30100supersedes 28100-30050i1KDFTV,2KDFTV..KDH200,201..09S..4FC;1KDFTV,2KDFTV..KDH20#..V1..SRF..5D..06S..4FC200408-200905

main28100-30101supersedes 28100-30051i1KDFTV..KDH20#,211,22#..4FC200906-201008

28120YOKE ASSY, STARTER

main28120-28040i1TRFE..TRH200..CBU200408-200808

main28120-28060supersedes 28120-70050i1TRFE..TRH200..CBU200808-200910

main28120-54380i2KDFTV..KDH20#..5F200408-200709

main28120-64040i1KDFTV..KDH20#..5F200709-201312

main28120-67090supersedes 28120-67020i1KDFTV,2KDFTV..KDH200,201..09S..4FC;1KDFTV,2KDFTV..KDH20#..V1..SRF..5D..06S..4FC200408-201008

28140HOLDER ASSY, STARTER BRUSH

main28140-54380i2KDFTV..KDH20#..5F200408-200709

main28140-64040i1KDFTV..KDH20#..5F200709-201312

main28140-70020i1TRFE..TRH200..CBU200408-201312

main28140-67090supersedes 28140-77090i1KDFTV,2KDFTV..KDH200,201..09S..4FC;1KDFTV,2KDFTV..KDH20#..V1..SRF..5D..06S..4FC200408-201008

28150SWITCH ASSY, MAGNET STARTER

main28150-30040i2KDFTV..KDH20#..5F200408-200709

main28150-67050i1KDFTV..KDH20#..5F200709-201312

main28150-75150i1TRFE..TRH200..CBU200408-201312

main28150-30070supersedes 28150-30050i1KDFTV,2KDFTV..KDH20#,211,22#..4FC200408-201008

28160ARMATURE ASSY, STARTER

main28160-21060supersedes 28160-70050i1TRFE..TRH200..CBU200408-200910

main28160-54380i2KDFTV..KDH20#..5F200408-200709

main28160-64041i1KDFTV..KDH20#..5F200709-201312

main28160-30100supersedes 28160-54140i1KDFTV,2KDFTV..KDH200,201..09S..4FC;1KDFTV,2KDFTV..KDH20#..V1..SRF..5D..06S..4FC200408-201008

main28160-54160i1KDFTV,2KDFTV..KDH200,201..09S..5F;1KDFTV,2KDFTV..KDH200,201..V2..HRF..5F;1KDFTV,2KDFTV..KDH20#..V1..SRF..5D..06S..5F200408-201008

9010512135

main90105-12135

9017908204

main90179-08204

9017912022

main90179-12022

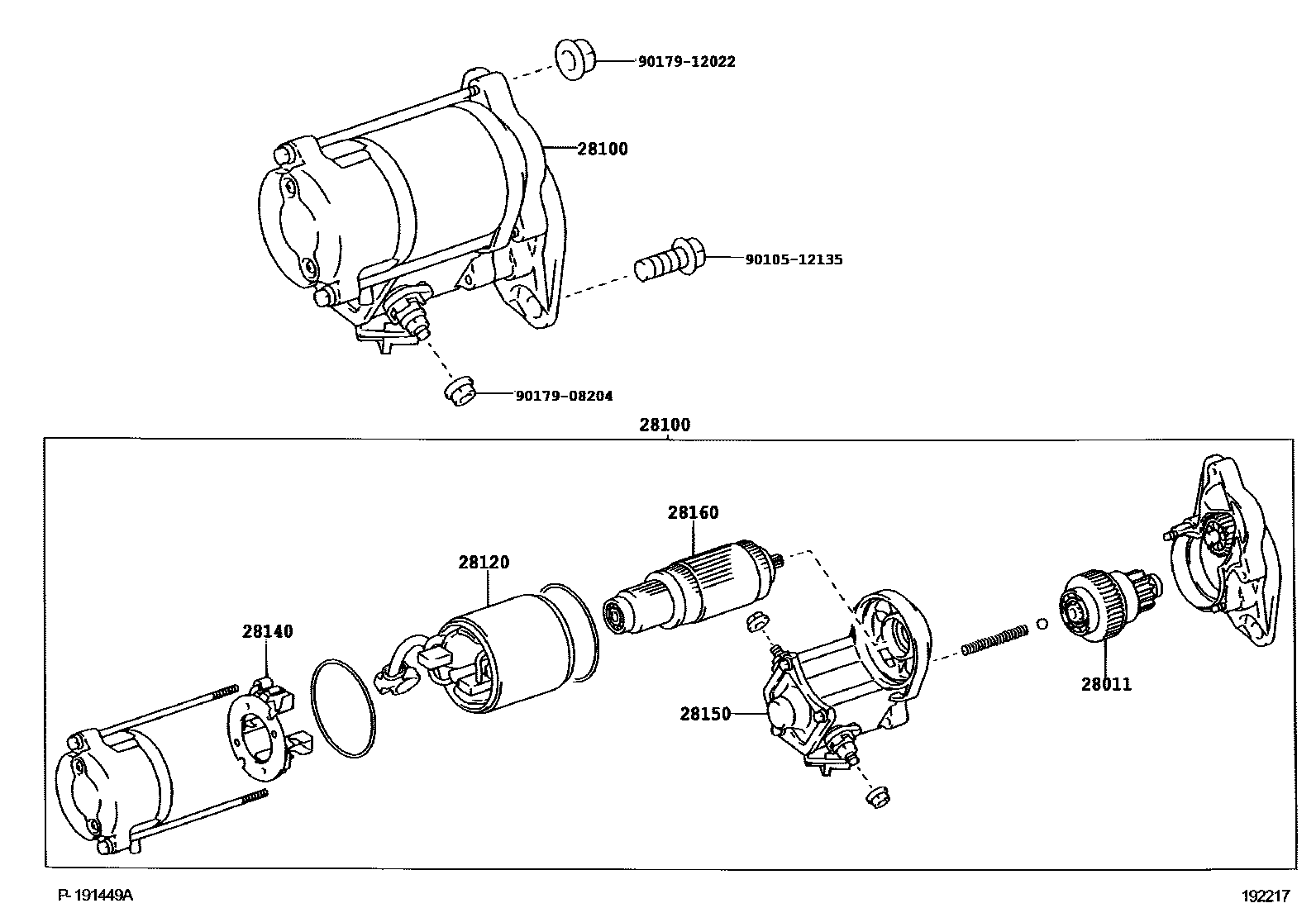

9 parts on this diagram · 7 diagrams in section
