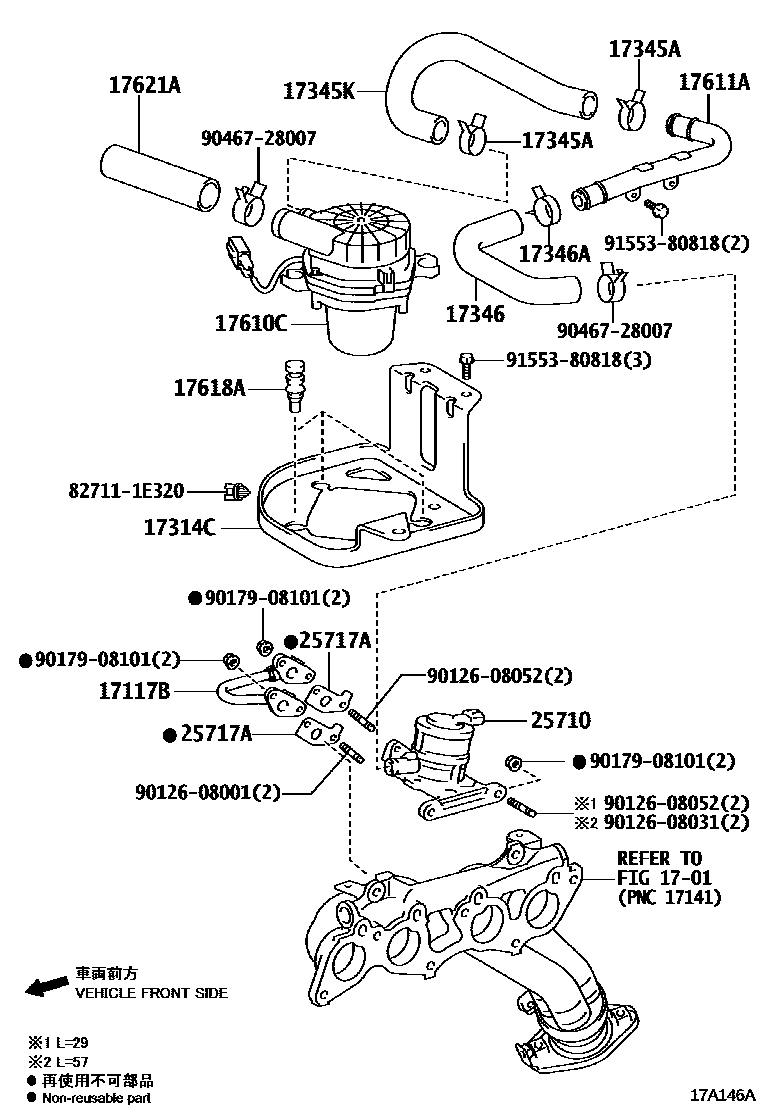

MANIFOLD AIR INJECTION SYSTEM

1701

17117BPIPE, INTAKE, NO.4

main17117-75010i1TRFE,2TRFE..TRH200,21#,22#200408-201005

sub17117-75011

main17117-75011i1TRFE,2TRFE..TRH200,21#,22#201005-201312

17314CBRACKET, AIR PUMP

main17314-0C030i1TRFE,2TRFE..TRH200,21#,22#200408-201312

17345ACLAMP OR CLIP, NO.5(FOR AIR INJECTION SYSTEM HOSE, NO.5)

main96134-52600i1TRFE,2TRFE..TRH200,21#,22#200408-201312

17345KHOSE, AIR, NO.5

main17345-75060i1TRFE,2TRFE..TRH200,21#,22#200408-201312

17346HOSE, NO.6(FOR AIR INJECTION SYSTEM)

main17346-75050i1TRFE..TRH200200408-201312

main17346-75060i2TRFE..TRH21#,22#200408-201312

17346ACLAMP OR CLIP, NO.6(FOR AIR INJECTION SYSTEM HOSE, NO.6)

main96134-52600i1TRFE,2TRFE..TRH200,21#,22#200408-201312

17610CPUMP ASSY, AIR

main17610-0C010i1TRFE,2TRFE..TRH200,21#,22#200408-201312

17611APIPE, AIR PUMP INLET

main17611-75010i1TRFE,2TRFE..TRH200,21#,22#200408-201312

17618AINSULATOR, AIR PUMP

main17618-0C010i1TRFE,2TRFE..TRH200,21#,22#200408-201312

17621AINLET, AIR PUMP

main17621-75010i1TRFE,2TRFE..TRH200,21#,22#200408-201312

25710VALVE ASSY, AIR SWITCHING

main25710-75020i1TRFE,2TRFE..TRH200,21#,22#200408-200912

sub25710-75021

main25710-75021i1TRFE,2TRFE..TRH200,21#,22#200912-201005

sub25710-75022

sub17117-75011

sub90126-08031

main25710-75022i1TRFE,2TRFE..TRH200,21#,22#201006-201201

sub25710-75023

main25710-75023i1TRFE,2TRFE..TRH200,21#,22#201201-201206

sub25710-75024

main25710-75024i1TRFE,2TRFE..TRH200,21#,22#201206-201305

sub25710-75025

main25710-75025i1TRFE,2TRFE..TRH200,21#,22#201305-201312

25717AGASKET, AIR SWITCHING VALVE

main25717-75010i1TRFE,2TRFE..TRH200,21#,22#200408-201312

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

9012608001

main90126-08001

9012608031

main90126-08031

9012608052

main90126-08052

9017908101

main90179-08101

9046728007

main90467-28007

9155380818

main91553-80818

20 parts on this diagram · 1 diagram in section
